1695758 - Simplicity 48" Turbo Collector for Legacy XL 48" Turbo - Turbo Blower Assembly Parts Diagram

48" Turbo Collector for Legacy XL

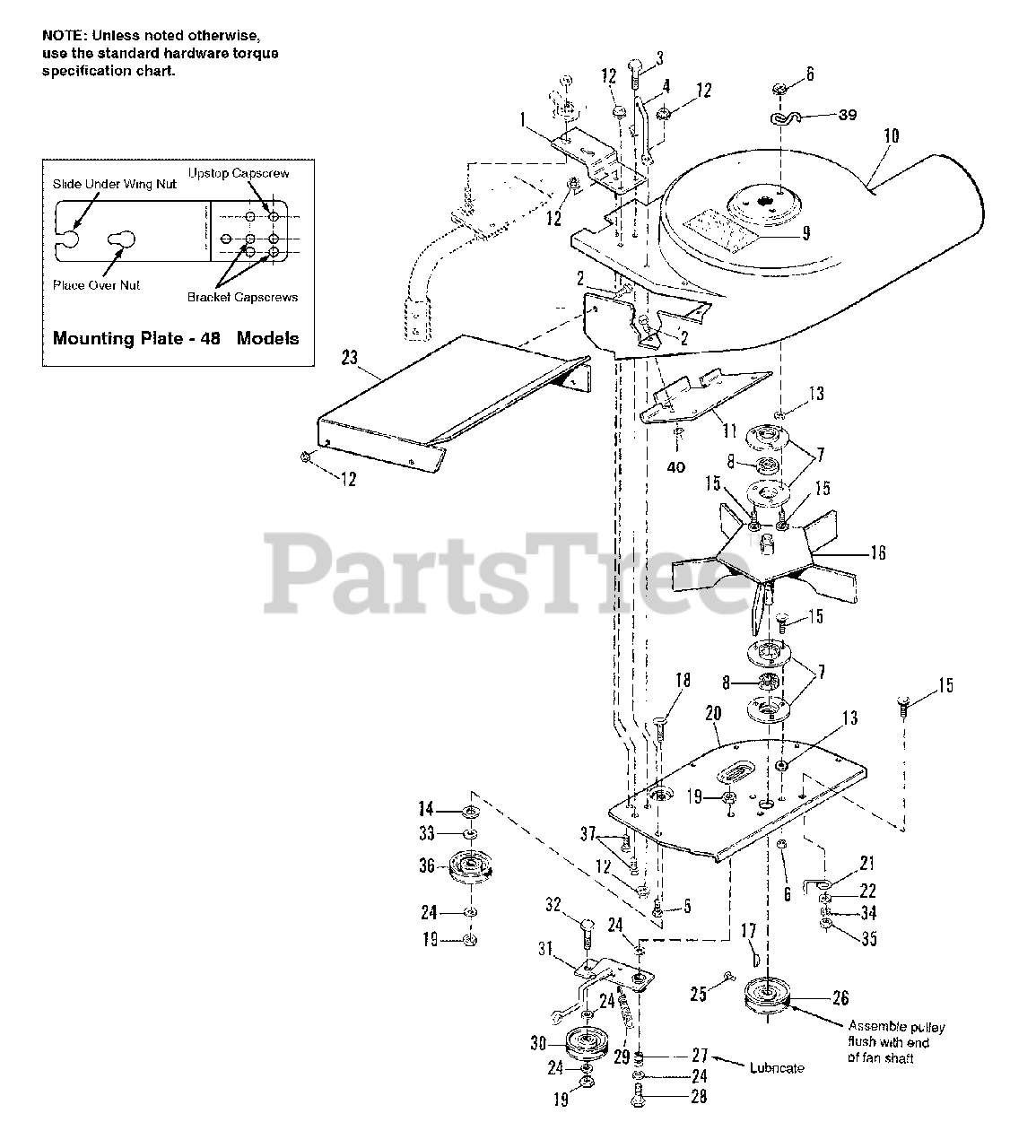

48" Turbo - Turbo Blower Assembly Parts Diagram

  • Title

1

Simplicity 1727404A

PLATE, Mounting
(Superseded to 1727404ASM)

$13.99

$

Usually ships in 2-12 days

0

2

Simplicity 1921959

CAPSCREW, Hex Head,1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

3

Simplicity 1960346

CAPSCREW, Hex Head,1/4-20 x 2-1/4
(Superseded to 1960346SM)

$4.99

$

In Stock, only 1 left!

0

4

Simplicity 1700936

STOP, Deflector
(Superseded to 1700936SM)

$24.99

$

Usually ships in 2-12 days

0

5

Simplicity 1924009

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1927557

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

7

Simplicity 1665982A

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 17

0

8

Simplicity 2108202

BEARING
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

9

Simplicity 1700259

DECAL, Danger
(Superseded to 1700259SM)

$27.99

$

Usually ships in 2-12 days

0

10

Simplicity 1706654

HOUSING, Blower
(Superseded to 1706654SM)

Note: (Incl. Ref. No. 9)

$

$

Not available

11

Simplicity 1679900

HOOK, Stone Guard
(Superseded to 1679900ASM)

$107.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960608

NUT, Hex Flange Whiz Lock, 1/4-20
(Superseded to 1960608SM)

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1933988

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 1676435

WASHER, Plain, 1/2
(Superseded to 1676435SM)

$8.49

$

Usually ships in 2-12 days

0

15

Simplicity 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

16

Simplicity 1706631A

FAN ASSEMBLY, 5 Blade
(Superseded to 1706631ASM)

$384.99

$

In Stock, only 1 left!

0

17

Simplicity 2860403

KEY, Woodruff, 3/16
(Superseded to 2860403SM)

$10.99

$

In Stock, only 1 left!

0

18

Simplicity 1960268

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 1960268SM)

$4.49

$

In Stock, Qty 9

0

19

Simplicity 1928731

NUT, Hex Jam Lock, 3/8-16
(Superseded to 1928731SM)

$4.99

$

In Stock, only 1 left!

0

20

Simplicity 1706652A

PLATE, Shroud
(Superseded to 1706652ASM)

$62.99

$

Usually ships in 2-12 days

0

21

Simplicity 2170397

STOP, Belt
(Superseded to 2170397SM)

$11.99

$

Usually ships in 2-12 days

0

22

Simplicity 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1702553

COVER, Top
(Superseded to 1702553ASM)

$52.99

$

Usually ships in 2-12 days

0

24

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1960619

SETSCREW, 5/16-18 x 3/8
(Superseded to 1960619SM)

$3.49

$

In Stock, Qty 8

0

26

Simplicity 1706634

PULLEY, Driven
(Superseded to 1706634SM)

$45.99

$

In Stock, only 3 left!

0

27

Simplicity 1666114

SPACER
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

28

Simplicity 1921969

CAPSCREW, Hex Head, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

29

Simplicity 1679554

SPRING, Extension
(Superseded to 1679554SM)

$7.49

$

Usually ships in 2-12 days

0

30

Simplicity 2174561

PULLEY, Idler, Adjustable
(Superseded to 2174561SM)

$53.99

$

Usually ships in 2-12 days

0

31

Simplicity 1701827A

IDLER ARM ASSEMBLY
(Superseded to 1701827ASM)

$67.99

$

Usually ships in 2-12 days

0

32

Simplicity 1921210

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

33

Simplicity 2157424

WASHER, Special, 3/8 x 1 OD
(Superseded to 2157424SM)

$7.49

$

In Stock, Qty 5

0

34

Simplicity 1917356

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 2154534

PULLEY, Idler, Fixed
(Superseded to 2154534SM)

$32.99

$

In Stock, only 2 left!

0

37

Simplicity 1923341

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0

39

Simplicity 1672689

S-HOOK
(Superseded to 1672689SM)

$31.99

$

Usually ships in 2-12 days

0

40

Simplicity 1920397

NUT, Ny-Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
