1695758 - Simplicity 48" Turbo Collector for Legacy XL 48" Turbo - Mounting Group Parts Diagram

48" Turbo Collector for Legacy XL

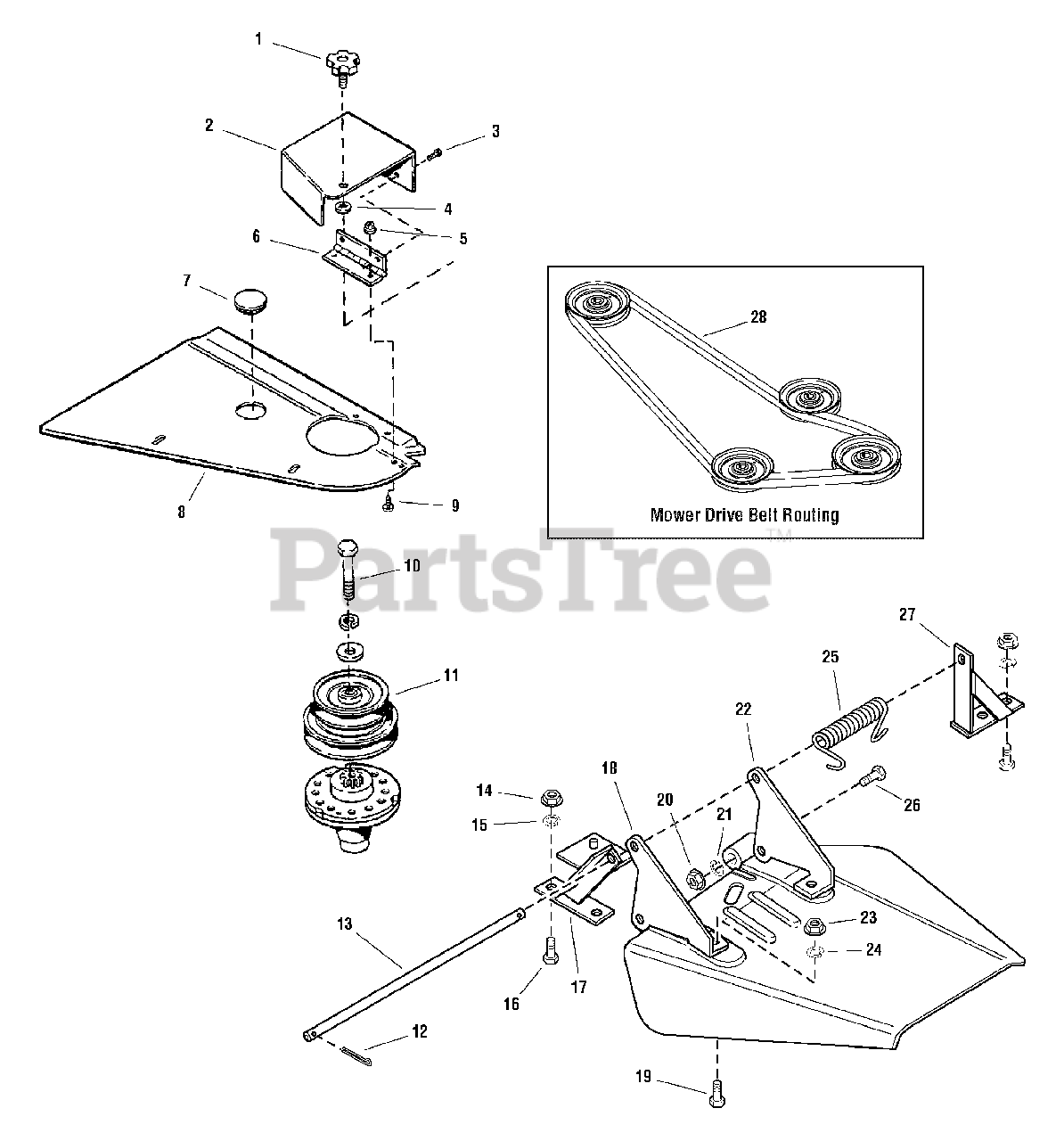

48" Turbo - Mounting Group Parts Diagram

  • Title

1

Simplicity 1700669

KNOB, Plastic
(Superseded to 1700669SM)

$19.99

$

Usually ships in 2-12 days

0

2

Simplicity 1700728

COVER, Belt
(Superseded to 1700728SM)

Note: (Includes Ref. No. 3 & 6)

$

$

Not available

3

Simplicity 2828707

POP-RIVET, 3/16 x 5/16
(Superseded to 2828707SM)

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1933988

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1928919

NUT, Hex Flange, #10-32
(Superseded to 1928919SM)

$3.99

$

In Stock, only 3 left!

0

6

Simplicity 1700649

HINGE
(Superseded to 1700649SM)

$25.99

$

Usually ships in 2-12 days

0

7

Simplicity 1674020

PLUG, Mower Cover
(Superseded to 1674020SM)

$4.49

$

In Stock, Qty 7

0

8

Simplicity 1700013

COVER, LH Mower
(Superseded to 1700013AYP)

$98.99

$

Usually ships in 2-12 days

0

9

Simplicity 1922121

SCREW, Machine, #10-32 x 3/8
(Superseded to 1922121SM)

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1927120

CAPSCREW, Hex Head, 7/16-14 x 2-1/4
(Superseded to 1927120SM)

$6.99

$

Usually ships in 2-12 days

0

11

Simplicity 1679903A

PULLEY ASSEMBLY
(Superseded to 1679903ASM)

$148.99

$

Usually ships in 2-12 days

0

12

Simplicity 1918447

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1700853

ROD, Pivot
(Superseded to 1700853SM)

$14.99

$

Usually ships in 2-12 days

0

14

Simplicity 1916950

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1916965

WASHER, Lock, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

16

Simplicity 1921210

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

17

Simplicity 1727403

HINGE ASSEMBLY, Front
(Superseded to 1727403ASM)

Note: (48" Mower Decks)

$190.99

$

Usually ships in 2-12 days

0

18

Simplicity 1700801A

BRACKET, L.H. Pivot
(Superseded to 1700801ASM)

$43.99

$

Usually ships in 2-12 days

0

19

Simplicity 1923325

CAPSCREW, Hex Head, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

20

Simplicity 1918213

NUT, Hex, 7/16-14
(Superseded to 1918213SM)

$4.99

$

In Stock, only 2 left!

0

21

Simplicity 1918199

WASHER, Lock, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1700802A

BRACKET, R.H. Pivot
(Superseded to 1700802ASM)

$55.99

$

Usually ships in 2-12 days

0

23

Simplicity 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1917356

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1700851

SPRING, Torsion
(Superseded to 1700851SM)

$21.99

$

Usually ships in 2-12 days

0

26

Simplicity 1926110

CAPSCREW, Hex Hd, 7/16-14 x 2-3/4
(Superseded to 1926110SM)

$6.49

$

Usually ships in 2-12 days

0

27

Simplicity 1725998A

HINGE ASSEMBLY, Rear
(Superseded to 1725998ASM)

Note: (48" Mower Decks)

$39.99

$

Usually ships in 2-12 days

0

28

Simplicity 1737118

V-BELT, Cog, 48.7 Lg
(Superseded to 1737118YP)

$40.99

$

Usually ships in 2-12 days

0
