1695757 - Murray Turbo Collection System for 54" Mower Deck Turbo Blower & Mounting Group Parts Diagram

Turbo Collection System for 54" Mower Deck

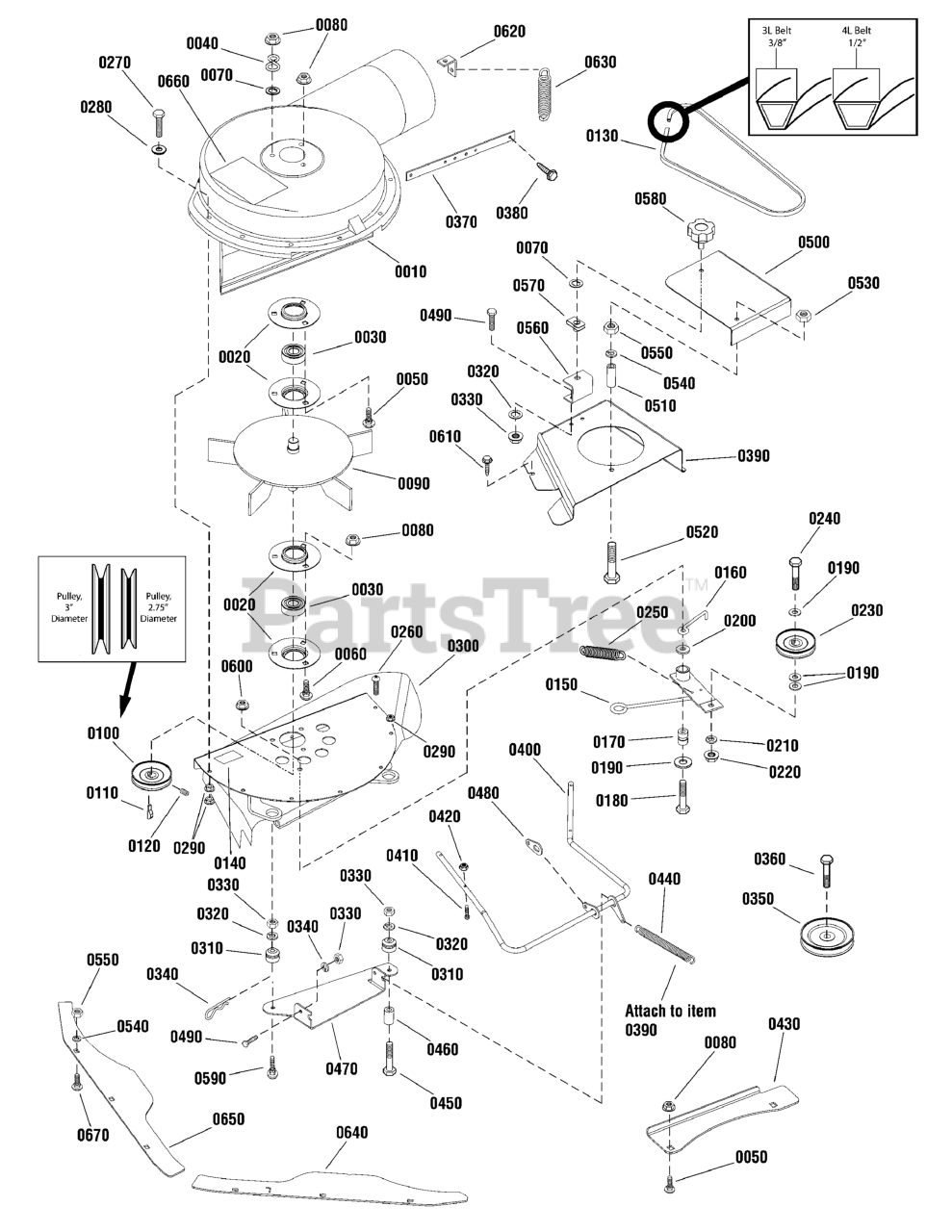

Turbo Blower & Mounting Group Parts Diagram

  • Title

0010

Murray 1720742

TURBO HOUSING, Fan
(Superseded to 1720892SM)

$228.99

$

Usually ships in 2-12 days

0

0020

RETAINER, Bearing

$

$

Not available

0030

BEARING

$

$

Not available

0040

Murray 1672689

"S" HOOK
(Superseded to 1672689SM)

$31.99

$

Usually ships in 2-12 days

0

0050

Murray 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

Note: (Qty of 2 included in Ref. No. 0690)

$3.49

$

In Stock, Qty 20+

0

0060

Murray 1921332

CAPSCREW, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0070

Murray 1933988

PUSH NUT, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0080

Murray 1927557

NUT, Flange Lock, 5/16-18
(Superseded to 703330)

Note: (Qty of 2 included in Ref. No. 0690)

$4.99

$

In Stock, Qty 14

0

0090

Murray 1706631A

FAN ASSEMBLY
(Superseded to 1706631ASM)

$384.99

$

In Stock, only 1 left!

0

0100

Murray 1706634

PULLEY, 3" Diam., For 3L Belt
(Superseded to 1706634SM)

Note: (For 3L V-Belt - Replaced by Service Kit Ref. No. 0700)

$45.99

$

In Stock, only 3 left!

0

0100

Murray 1736092

PULLEY, 2-3/4" Diam., For 4L Belt
(Superseded to 1736092SM)

Note: (For 4L V-Belt - Included in Service Kit Ref. No. 0700)

$43.99

$

Usually ships in 2-12 days

0

0110

Murray 2860403

KEY, Woodruff, #61
(Superseded to 2860403SM)

$10.99

$

In Stock, only 1 left!

0

0120

Murray 1960619

SCREW, Set Torx, 5/16-18 x 5/16
(Superseded to 1960619SM)

$3.49

$

In Stock, Qty 10

0

0130

Murray 1720932

V-BELT, 3L 3/8" x 36.9
(Superseded to 1734007SM)

Note: (Replaced by Service Kit Ref. No. 0700)

$24.99

$

In Stock, only 1 left!

0

0130

Murray 1733051

V-BELT, 4L, 1/2" x 36.9
(Superseded to 1733051SM)

Note: (Included in Service Kit Ref. No. 0700)

$40.99

$

In Stock, Qty 9

0

0140

DECAL, Patent

Note: (Not shown, not a serviceable part)

$

$

Not available

0150

Murray 1720934A

IDLER ARM ASSEMBLY
(Superseded to 1720934ASM)

$53.99

$

Usually ships in 2-12 days

0

0160

Murray 1704419

BELT STOP
(Superseded to 1704419SM)

$7.49

$

In Stock, only 2 left!

0

0170

Murray 1666114

BUSHING
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

0180

Murray 1923701

CAPSCREW, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

0190

Murray 1924940

WASHER, 3/8 x 7/8 OD
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0200

Murray 1922755

WASHER, 3/8 x 1 OD
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0210

Murray 1916965

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

0220

Murray 1916950

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

0230

Murray 2174561

PULLEY, Idler
(Superseded to 2174561SM)

$53.99

$

Usually ships in 2-12 days

0

0240

Murray 1921969

CAPSCREW, Hex Head, 3/8-16 x 1-1/2, G5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

0250

Murray 2174896

SPRING, Extension
(Superseded to 2174896SM)

$20.99

$

In Stock, only 1 left!

0

0260

Murray 1935945

SCREW, Truss Head Phillips, 1/4-20 x 3/4
(Superseded to 1935945SM)

$3.49

$

Usually ships in 2-12 days

0

0270

Murray 1921961

CAPSCREW, Hex Head, 1/4-20 x 1-1/4, G5
(Superseded to 1921961SM)

$4.49

$

In Stock, only 3 left!

0

0280

Murray 1921319

WASHER, 1/4 x 5/8 OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0290

Murray 1920397

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0300

Murray 1720721A

PLATE ASSEMBLY
(Superseded to 1720721ASM)

$140.99

$

Usually ships in 2-12 days

0

0310

Murray 1720718

PIN, Pivot
(Superseded to 1720718SM)

Note: (Included in Ref. No. 0690)

$43.99

$

Usually ships in 2-12 days

0

0320

Murray 1916964

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

Note: (Qty of 4 included in Ref. No. 0690)

$3.99

$

In Stock, Qty 11

0

0330

Murray 1916622

NUT, Hex, 1/4-20
(Superseded to 703127)

Note: (Qty of 4 included in Ref. No. 0690)

$3.49

$

In Stock, Qty 20+

0

0340

Murray 1704628

CLIP, Hairpin
(Superseded to 1704628SM)

$4.49

$

In Stock, only 1 left!

0

0350

Murray 1720737

PULLEY ASSEMBLY
(Superseded to 1720737SM)

Note: (Included in Ref. No. 0690)

$67.99

$

Usually ships in 2-12 days

0

0360

Murray 1927120

CAPSCREW, Hex Head, 7/16-14 x 2-1/4, G8
(Superseded to 1927120SM)

Note: (Included in Ref. No. 0690)

$6.99

$

Usually ships in 2-12 days

0

0370

Murray 1706630A

STRAP, 3/4 W x 9-3/4 Long
(Superseded to 1706630ASM)

$9.49

$

In Stock, only 1 left!

0

0380

Murray 1927429

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

0390

Murray 1734303A

COVER, Arbor R.H. Turbo
(Superseded to 1734303ASM)

$279.99

$

Usually ships in 2-12 days

0

0400

Murray 1720951

ROD & ANCHOR
(Superseded to 1720951SM)

$198.99

$

Usually ships in 2-12 days

0

0410

Murray 1960404

SCREW, Truss Head Phillips, #10-24 x 3/4
(Superseded to 1960404SM)

Note: (Included in Ref. No.0690)

$3.99

$

In Stock, only 4 left!

0

0420

Murray 1933896

NUT. Ny-Lock, 10-24
(Superseded to 703412)

Note: (Included in Ref. No. 0690)

$4.49

$

In Stock, only 4 left!

0

0430

Murray 1720749A

PLATE, Support
(Superseded to 1720749ASM)

$35.99

$

Usually ships in 2-12 days

0

0440

Murray 1719590

SPRING, Extension
(Superseded to 1719590SM)

Note: (Included in Ref. No. 0690)

$

$

Not available

0450

Murray 1921159

CAPSCREW, Hex Head, 1/4-20 x 2-1/4, G5
(Superseded to 704291)

Note: (Included in Ref. No. 0690)

$5.49

$

Usually ships in 2-12 days

0

0460

Murray 1720978

SPACER
(Superseded to 1720978SM)

Note: (Included in Ref. No. 0690)

$20.99

$

Usually ships in 2-12 days

0

0470

Murray 1720920A

PLATE, Deflector
(Superseded to 1720920ASM)

$13.99

$

Usually ships in 2-12 days

0

0480

Murray 1720921

TAB, Locking
(Superseded to 1720921SM)

Note: (Included in Ref. No. 0690)

$7.49

$

Usually ships in 2-12 days

0

0490

Murray 1921959

CAPSCREW, Hex Head, 1/4 - 20 x 5/8
(Superseded to 001X38MA)

Note: (Qty of 2 included in Ref. No. 0690)

$4.49

$

In Stock, Qty 18

0

0500

Murray 1720918A

COVER
(Superseded to 1720918ASM)

$30.99

$

Usually ships in 2-12 days

0

0510

Murray 1713588

SPACER, 5/16 ID x 1 Long
(Superseded to 1713588SM)

$8.49

$

Usually ships in 2-12 days

0

0520

Murray 1921719

CAPSCREW, Hex Head, 5/16-18 x 2-1/2, G5
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

0530

Murray 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

0540

Murray 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

Note: (Qty of 6 included in Ref. No. 0690)

$3.49

$

In Stock, Qty 20+

0

0550

Murray 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

Note: (Qty of 6 included in Ref. No. 0690)

$3.49

$

In Stock, Qty 20+

0

0560

Murray 1700654A

BRACKET, "C"
(Superseded to 1700654ASM)

$15.99

$

Usually ships in 2-12 days

0

0570

Murray 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 4 left!

0

0580

Murray 1700669

KNOB, Plastic
(Superseded to 1700669SM)

$19.99

$

Usually ships in 2-12 days

0

0590

Murray 1931320

BOLT, Carriage, 1/4-20 x 1-1/4
(Superseded to 703178)

Note: (Included in Ref. No. 0690)

$3.99

$

In Stock, only 1 left!

0

0600

Murray 1930645

NUT, Hex Two-Way Lock Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0610

Murray 1929000

SCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

Note: (Included in Ref. No. 0690)

$4.99

$

In Stock, Qty 20+

0

0620

Murray 1668500

BRACKET, "L"
(Superseded to 1668500SM)

$19.99

$

In Stock, only 1 left!

0

0630

Murray 1727149

SPRING, Extension
(Superseded to 703146)

$

$

Not available

0640

Murray 1720613A

BAFFLE, Front L.H.
(Superseded to 1720613BMYP)

$96.99

$

In Stock, only 1 left!

0

0650

Murray 1721023A

BAFFLE, Front R.H.
(Superseded to 1721023ASM)

$48.99

$

In Stock, only 1 left!

0

0660

Murray 1700259

DECAL, Danger Thrown Objects
(Superseded to 1700259SM)

$27.99

$

Usually ships in 2-12 days

0

0670

Murray 1931332

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703447)

Note: (Included in Ref. No. 0690)

$4.49

$

In Stock, Qty 20+

0

--

Murray 1660617

HARDWARE BAG

$

$

Not available

--

Murray 1687419

KIT, Pulley & Belt, 54" Turbo
(Superseded to 1687419YP)

$176.99

$

Usually ships in 2-12 days

0
