1695733 - Brute 33" Snow Thrower, 16.5 Gross TP (2009) Auger Drive Group Parts Diagram

33" Snow Thrower, 16.5 Gross TP

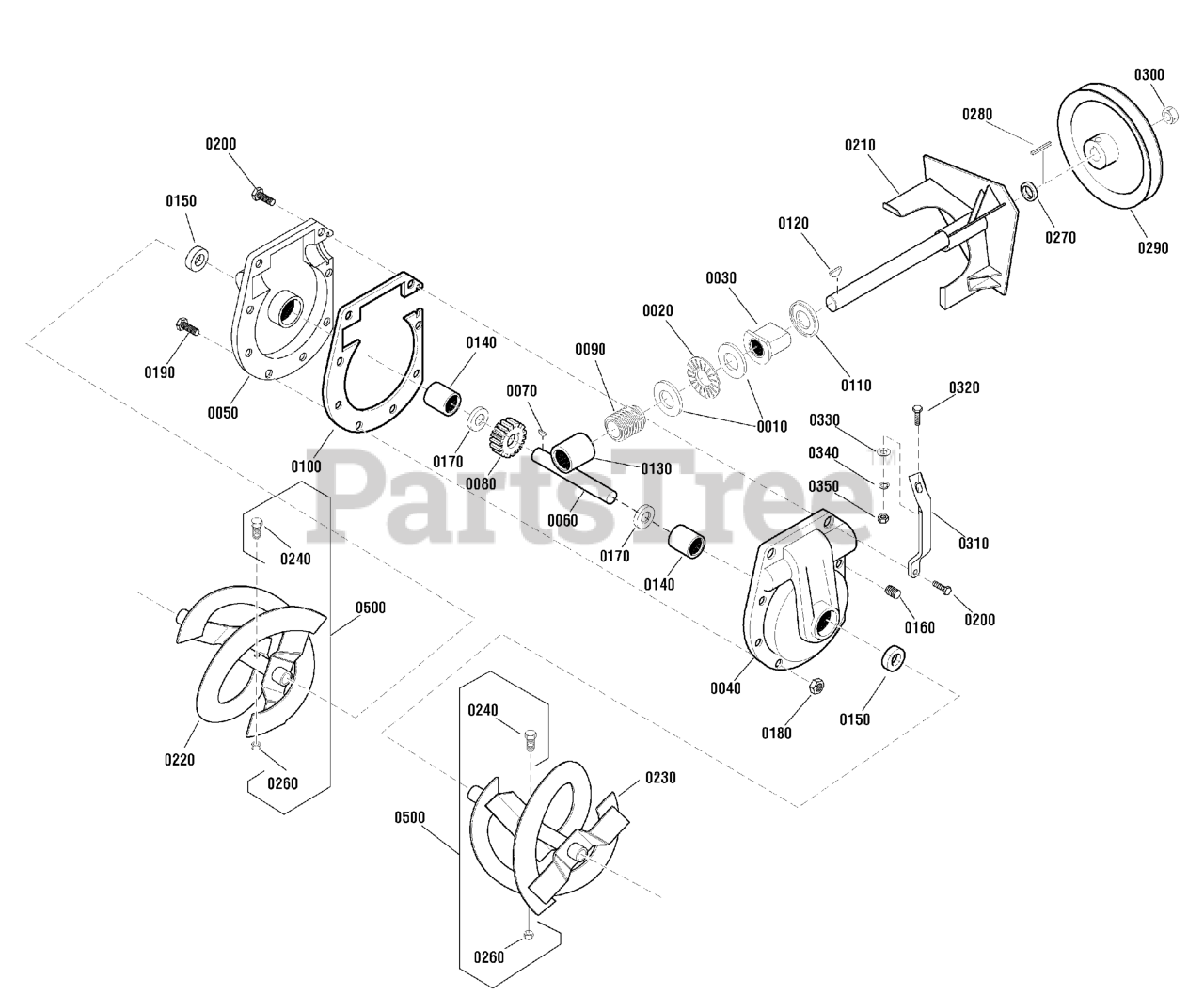

Auger Drive Group Parts Diagram

  • Title

0010

Murray 48275MA

WASHER, FLAT

$6.49

$

In Stock, only 4 left!

0

0020

Murray 50684MA

BEARING, Roll, 3/4ID x 1-1/4OD

$6.49

$

In Stock, only 4 left!

0

0030

Murray 583126MA

BEARING, FLANGE

$13.99

$

In Stock, Qty 5

0

0040

Murray 895MA

CASE, GEAR, LH

$

$

Not available

0050

Murray 896MA

CASE, GEAR, RH

$32.99

$

In Stock, only 4 left!

0

0060

Murray 760411MA

SHAFT, AUGER OUTPUT

$93.99

$

Usually ships in 2-12 days

0

0070

Murray 73905MA

KEY, WOODRUFF #91
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

0080

Murray 53730MA

WORM GEAR
(Superseded to 1752500YP)

$79.99

$

In Stock, only 4 left!

0

0090

Murray 53732MA

WORMGEAR, 1-3/4OD x 1-9/16

$49.99

$

Usually ships in 2-12 days

0

0100

Murray 897MA

GASKET, GEAR BOX

$

$

Not available

0110

Murray 53737MA

RING, QUAD 0.924 ID

$4.99

$

In Stock, Qty 7

0

0120

Murray 50795MA

KEY

$5.99

$

In Stock, only 1 left!

0

0130

Murray 53731MA

BEARING, SLEEVE

$5.49

$

In Stock, Qty 10

0

0140

Murray 53743MA

BEARING, SLEEVE

$9.99

$

Usually ships in 2-12 days

0

0150

Murray 780151MA

SEAL, OIL

$10.99

$

In Stock, Qty 6

0

0160

Murray 53749MA

PLUG, PIPE 0.25-18
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

0170

Murray 53748MA

WASHER, FLAT

$9.99

$

In Stock, only 2 left!

0

0180

Murray 71100MA

NUT, 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

0190

Murray 910828MA

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0200

Murray 330434MA

SCREW, 5/16-24 x 1.50
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

0210

Murray 1740585AYP

WELD, IMPELLER

$150.99

$

Usually ships in 2-12 days

0

0220

Murray 1738145BCYP

AUGER, ASSEMBLY, LH

$170.99

$

Usually ships in 2-12 days

0

0230

Murray 1738144BCYP

AUGER, ASSEMBLY, RH

$142.99

$

Usually ships in 2-12 days

0

0240

Murray 578647MA

BOLT, Shoulder, 1/2 x 1/4 x 2
(Superseded to 703335)

$6.49

$

Usually ships in 2-12 days

0

0260

Murray 015X43MA

NUT, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

0270

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 10

0

0280

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 11

0

0290

Murray 583146MA

PULLEY ASSEMBLY

$

$

Not available

0300

Murray 15X112MA

NUT, .50-20 HEX FLANGE

$5.49

$

In Stock, only 2 left!

0

0310

Murray 1740570MA

BRACE, Gear Box
(Superseded to 703131)

$9.49

$

Usually ships in 2-12 days

0

0320

Murray 302636MA

SCREW, 5/16-18 x 1.25

$4.99

$

Usually ships in 2-12 days

0

0330

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

0340

Murray 71060MA

WASHER, SPLIT LOCK .31 X .58 X .08
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0350

Murray 15X144MA

NUT, HEX 5/16-18

$3.99

$

In Stock, only 1 left!

0
