1695731 - Dynamark 24" Snow Thrower (2009) Drive (1740818) Parts Diagram

24" Snow Thrower

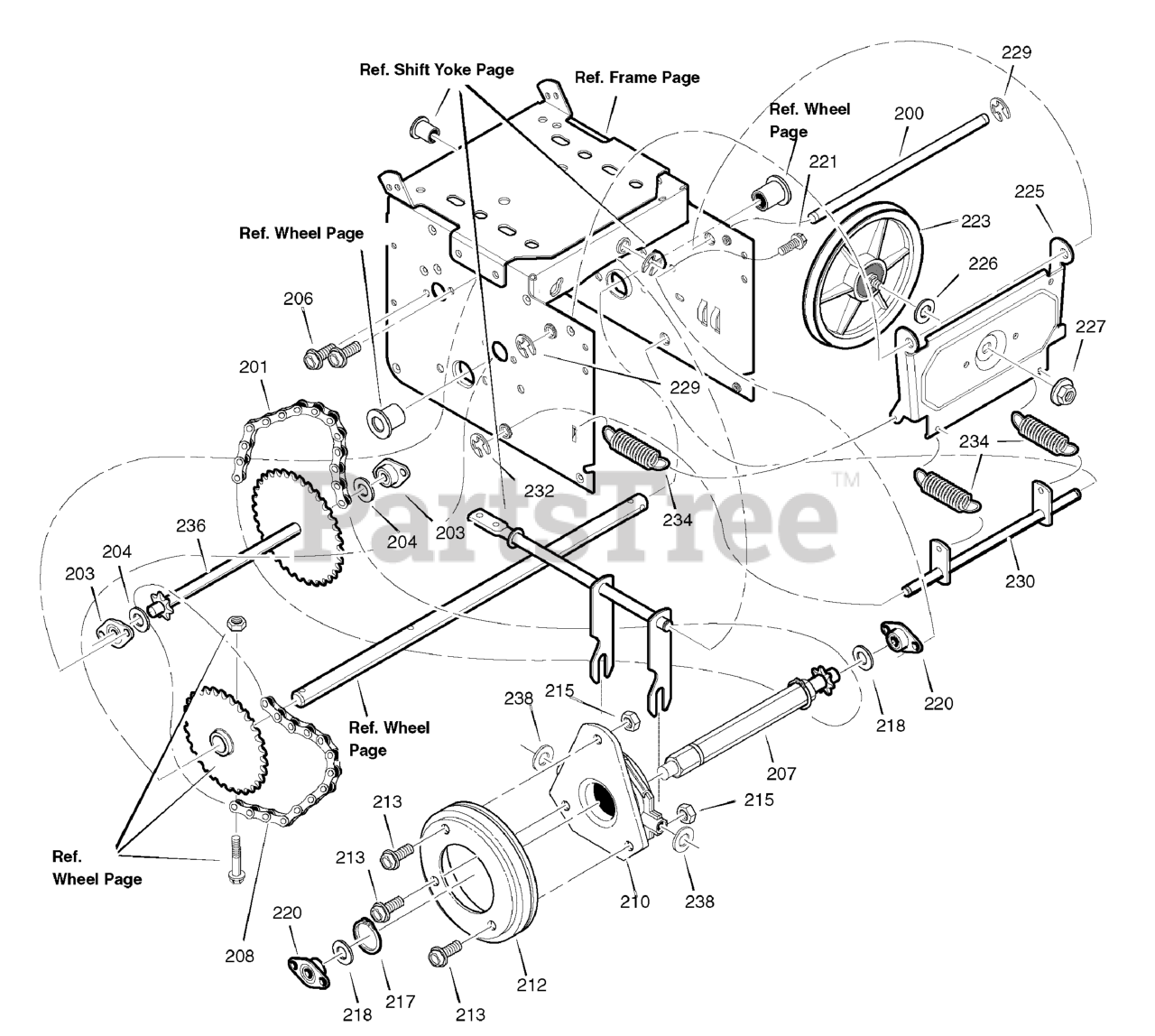

Drive (1740818) Parts Diagram

  • Title
200

Murray 1501092YZMA

AXLE, Swing Plate

$12.99

$

Usually ships in 2-12 days

0

201

Murray 579851MA

CHAIN, Roller, #420 x 19.00

$21.99

$

In Stock, Qty 15

0

203

Murray 334163MA

BEARING AND RETAINER ASSEMBLY

$11.99

$

In Stock, only 2 left!

0

204

$4.49

$

In Stock, Qty 20+

0

206

Murray 25X020MA

SCREW, TAP 5/16-18 x 1/2

$4.99

$

In Stock, Qty 6

0

207

Murray 1501236MA

ASSEMBLY, Hex Shaft
(Superseded to 1501100MA)

$

$

Not available

208

Murray 579868MA

CHAIN, ROLLER, #420 x 18.00 LG

$20.99

$

In Stock, Qty 17

0

210

Murray 337029MA

BEARING, Trunion Clutch, R
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

212

Murray 1501435MA

WHEEL, Friction Disk

$27.99

$

In Stock, Qty 20+

0

213

Murray 001X38MA

BOLT, Hex, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 18

0

215

Murray 303008MA

NUT, Keps Hex, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

217

Murray 1733326SM

RING, Retext

$4.49

$

In Stock, only 1 left!

0

218

Murray 579858MA

WASHER, Flat, 1/2

$4.49

$

In Stock, Qty 20+

0

220

Murray 334163MA

BEARING AND RETAINER ASSEMBLY

$11.99

$

In Stock, only 2 left!

0

221

Murray 25X020MA

SCREW, Tap 5/16-18 x 1/2

$4.99

$

In Stock, Qty 6

0

223

Murray 1501115MA

FRICTION PULLY

$

$

Not available

225

Murray 1501057YZMA

PLATE, Swinging

$37.99

$

In Stock, only 1 left!

0

226

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 10

0

227

Murray 15X114MA

NUT, Flange Lock, 3/8-24

$4.49

$

Usually ships in 2-12 days

0

229

Murray 11X30MA

RETAINER, Ring

$4.49

$

In Stock, Qty 11

0

230

Murray 1502105YZMA

ASSEMBLY, Leaf Spring Link

$33.99

$

Usually ships in 2-12 days

0

232

Murray 11X30MA

RETAINER, Ring

$4.49

$

In Stock, Qty 11

0

234

Murray 1736469YP

SPRING, Extension

$6.99

$

In Stock, Qty 20+

0

236

Murray 1501237MA

SPROCKET, 33T/7

$80.99

$

In Stock, only 3 left!

0

238

Murray 71074MA

WASHER, Flat

$

$

Not available
