1695731 - Dynamark 24" Snow Thrower (2009) Discharge Chute (1742250) Parts Diagram

24" Snow Thrower

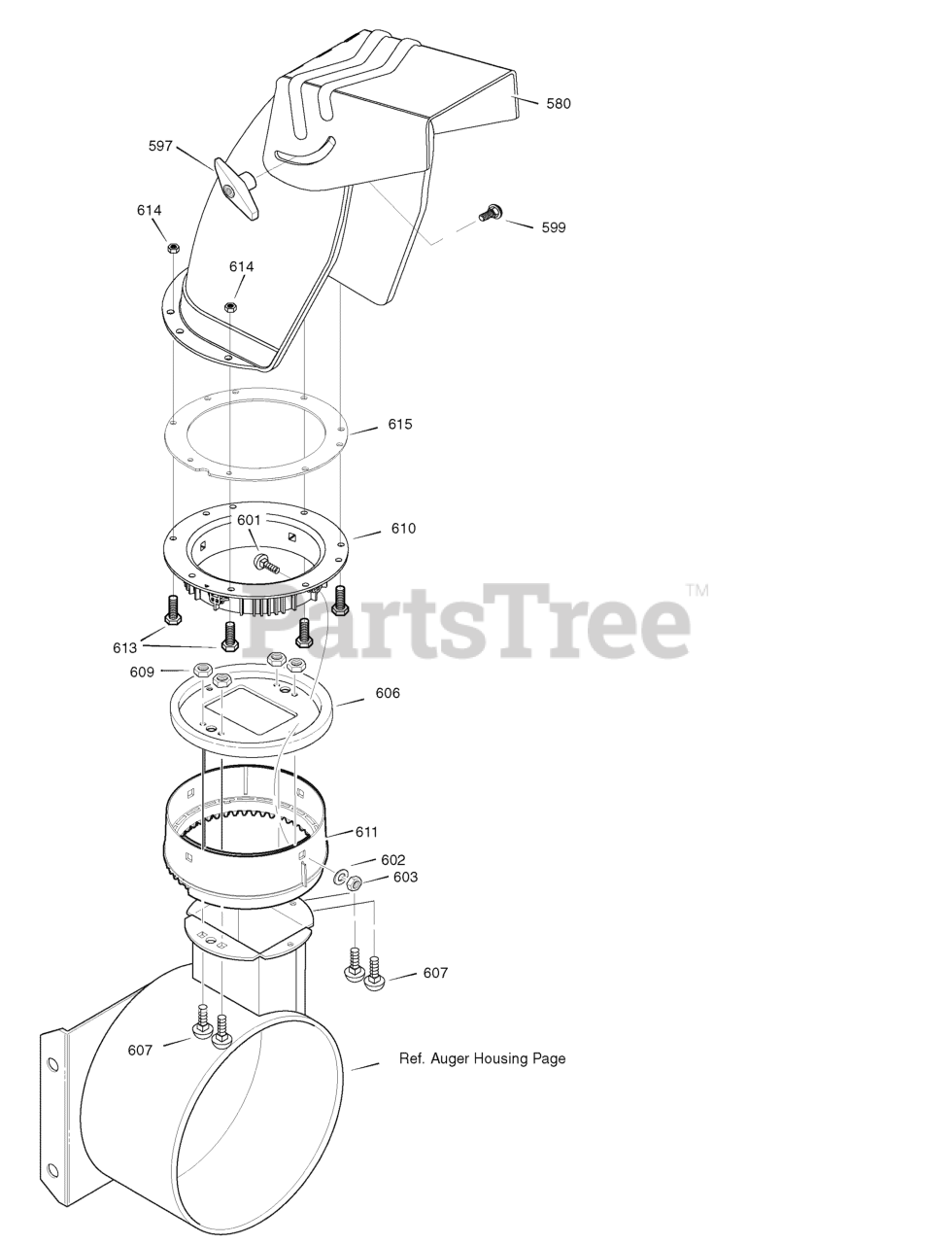

Discharge Chute (1742250) Parts Diagram

  • Title

580

Murray 1736313YP

CHUTE ASSEMBLY

$107.99

$

Usually ships in 2-12 days

0

597

Murray 1501260MA

WING KNOB

$7.99

$

In Stock, only 1 left!

0

599

Murray 1931333SM

BOLT, 5/16-18 X 1.00
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

601

Murray 2X100MA

BOLT, 5/16-18 x 1
(Superseded to 704217)

$9.49

$

Usually ships in 2-12 days

0

602

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

603

Murray 71038MA

NUT, Hex, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

606

Murray 1501932YZMA

CHUTE COLLAR

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101MA

SCREW, 1/4-20 x 3/4
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

609

Murray 15X145MA

NUT, 1/4-20 Hex Nylock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 1741917YP

RING, Retainer, Inner

$22.99

$

In Stock, only 1 left!

0

611

Murray 1501282MA

RING, Retainer, Outer

$

$

Not available

613

Murray 1935450SM

CAPSCREW, Hex-Flange, 1/4-20 x 3/4

$4.49

$

In Stock, only 1 left!

0

614

Murray 703463

NUT, Nylock Flanged, 1/4-20
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

615

Murray 1736435AYP

RING, Chute Base

$12.99

$

In Stock, only 1 left!

0
