1695721 - Murray 33" Snow Thrower, 16.5hp (2009) Wheels & Tires Group Parts Diagram

33" Snow Thrower, 16.5hp

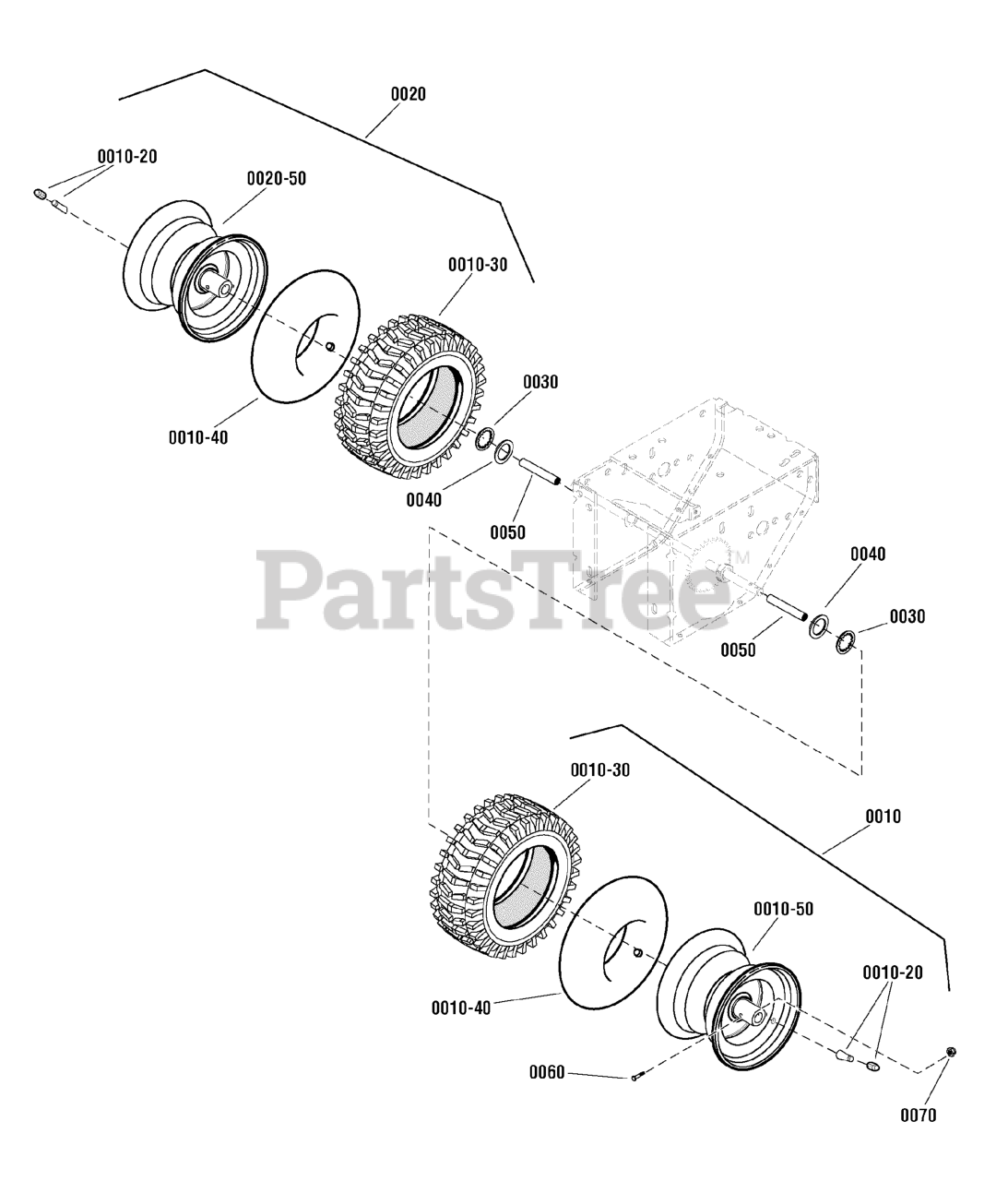

Wheels & Tires Group Parts Diagram

  • Title

0010

Murray 1736414YP

WHEEL & TIRE ASSEMBLY, X-TRAC TL, 16 x 6.5 - 8, L.H.

Note: (Includes Ref. No. 0010-20, 0010-30 & 0010-50)

$170.99

$

Usually ships in 2-12 days

0

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0010-30

Murray 1727075SM

TIRE, X-TRAC TL, 16 x 6.50 - 8
(Superseded to 1751301YP)

$101.99

$

Usually ships in 2-12 days

0

0010-40

Murray 2164247SM

TUBE, Tire

$40.99

$

Usually ships in 2-12 days

0

0010-50

*RIM, L.H.

$

$

Not available

0020

Murray 1736413YP

WHEEL & TIRE ASSEMBLY, X-TRAC TL, 16 x 6.5 - 8, R.H.

Note: (Includes Ref. No. 0010-20, 0010-30 & 0020-50)

$186.99

$

Usually ships in 2-12 days

0

0020-50

*RIM, R.H.

$

$

Not available

0030

Murray 1657528SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1501138MA

BUSHING, Wheel

$

$

Not available

0060

Murray 577015MA

CAPSCREW, Hex, 1/4-20 x 1-3/4, G5

$4.99

$

In Stock, only 3 left!

0

0070

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
