1695710 - Murray 46" & 52" Clean Sweep Triple Bag Grass Catcher Triple Catcher Assembly 46" & 52" Parts Diagram

46" & 52" Clean Sweep Triple Bag Grass Catcher

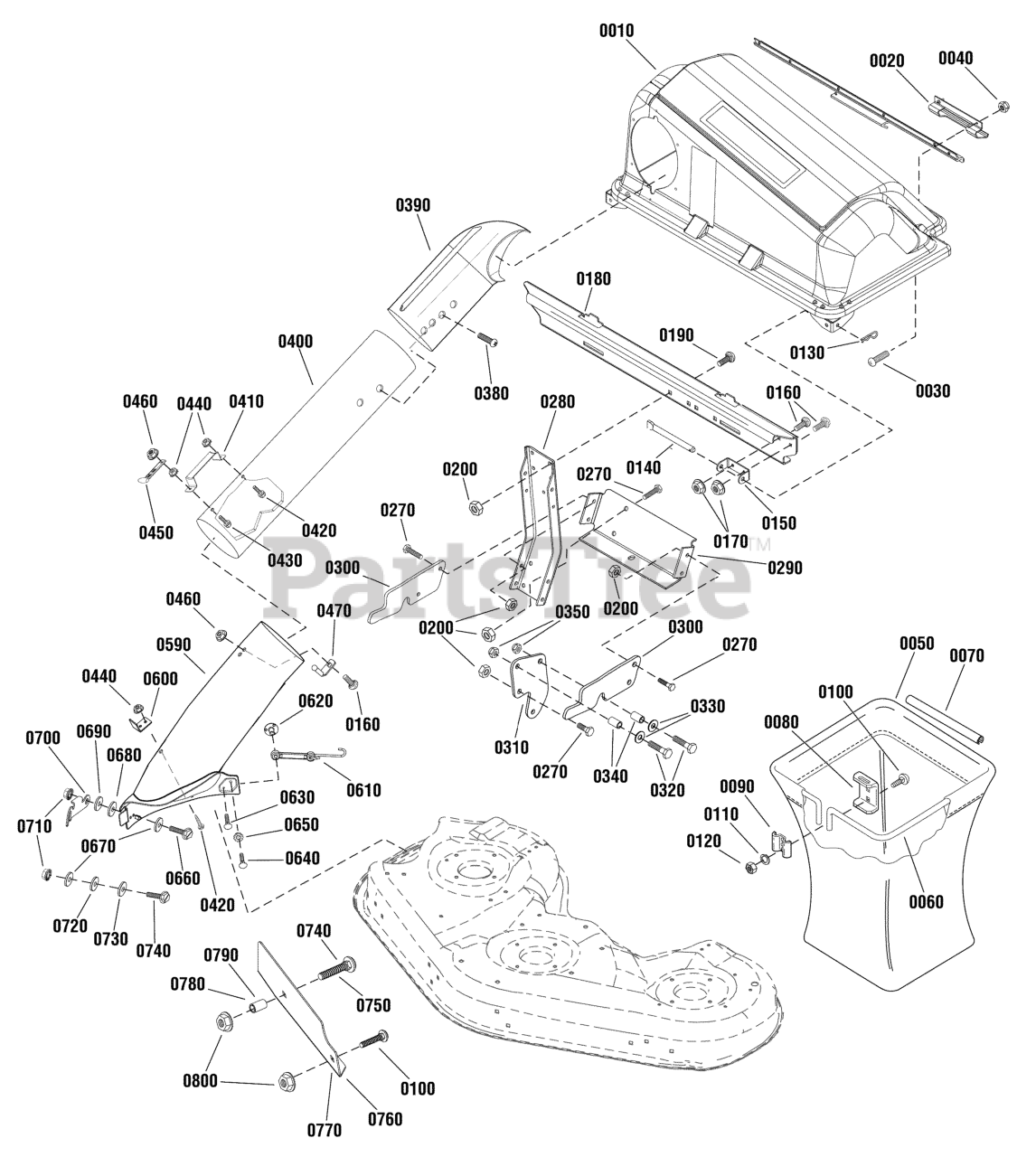

Triple Catcher Assembly 46" & 52" Parts Diagram

  • Title

0010

Murray 1736101

ASSEMBLY, Cover, Triple Bagger
(Superseded to 1736101YP)

$695.99

$

Usually ships in 2-12 days

0

0020

Murray 720537

HANDLE, Plastic
(Superseded to 054537MA)

$18.99

$

Usually ships in 2-12 days

0

0030

Murray 1960404

SCREW, Truss Head Phillips, 10-24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0040

Murray 1933896

NUT, Hex Lock, 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0050

Murray 1733695

BAG, Triple Regular
(Superseded to 1733695SM)

$140.99

$

In Stock, only 2 left!

0

0060

Murray 1733517

HOOP, Triple
(Superseded to 1733517SM)

$76.99

$

Usually ships in 2-12 days

0

0070

Murray 1733709

EDGING, Tube Grass Bag
(Superseded to 1733709SM)

$16.99

$

In Stock, only 2 left!

0

0080

Murray 1703807A

HANGER, Grass Bag
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 1 left!

0

0090

Murray 1672023A

CLAMP, Grass Bag Plain
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

0100

Murray 1931333

BOLT, Carriage, 5/16 - 18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0110

Murray 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0120

Murray 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0130

Murray 1918196

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

0140

Murray 720525

PIN, Cover Hinge
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

0150

Murray 1736886A

PIVOT, Hinge
(Superseded to 1736886BMYP)

$34.99

$

Usually ships in 2-12 days

0

0160

Murray 1960252

BOLT, Carriage, 1/4-20 X 5/8
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0170

Murray 1960294

NUT, Hex-Flange, Whiz-Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

0180

Murray 1736080A

CROSS SUPPORT, Triple Bagger
(Superseded to 1736080AYP)

$186.99

$

Usually ships in 2-12 days

0

0190

Murray 1931350

BOLT, Carriage, 3/8 - 18 x 1, G5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0200

Murray 1928352

NUT, Hex-Flange, Whiz-Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0270

Murray 1920415

CAPSCREW, Hex-Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

0280

Murray 1734223A

SUPPORT, Upright
(Superseded to 1734223ASM)

$111.99

$

Usually ships in 2-12 days

0

0290

Murray 1703744A

BRACKET, Lower Hitch
(Superseded to 1703744ASM)

$

$

Not available

0300

Murray 1723067A

SUPPORT, Side HItch
(Superseded to 1723067ASM)

$67.99

$

In Stock, only 2 left!

0

0310

Murray 1723044A

PLATE, Side
(Superseded to 1723044ASM)

$

$

Not available

0320

Murray 1960462

CAPSCREW, Hex Head, 1/2-13 x 2-1/2
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

0330

Murray 1924361

WASHER, 17/32 x 1-1/4
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0340

Murray 1668662

SPACER, 1/2 ID x 1-9/32
(Superseded to 1668662SM)

$32.99

$

Usually ships in 2-12 days

0

0350

Murray 1960355

NUT, Hex Lock ESNA, 1/2-13
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

0380

Murray 722855

SCREW, 1/4 x 3/4
(Superseded to 26X239MA)

$4.49

$

Usually ships in 2-12 days

0

0390

Murray 1733885

ELBOW, Upper Tube
(Superseded to 1733885SM)

$103.99

$

Usually ships in 2-12 days

0

0400

Murray 1734299

TUBE, Clear
(Superseded to 1734299SM)

$140.99

$

In Stock, Qty 6

0

0410

Murray 720533

HANDLE, Connect Tube
(Superseded to 720533FS)

$17.99

$

Usually ships in 2-12 days

0

0420

Murray 720074

SCREW, 1/4-20 x 1/2
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

0430

Murray 720076

SCREW, 1/4-20 x 1
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

0440

Murray 1928372

NUT, Hex Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

0450

Murray 2171600

STRAP, Hood
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

0460

Murray 1930642

NUT, Hex Flange Top-Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, Qty 6

0

0470

Murray 720543

PIN, Latch
(Superseded to 054563MA)

$23.99

$

In Stock, only 2 left!

0

0590

Murray 1734776

BOOT, Bagging
(Superseded to 1734776YP)

$268.99

$

In Stock, only 2 left!

0

0600

Murray 1737764A

UPSTOP, Deflector
(Superseded to 1737764AYP)

$33.99

$

Usually ships in 2-12 days

0

0610

Murray 7036433

STRAP, Mounting Bag
(Superseded to 7036433SM)

$31.99

$

In Stock, only 1 left!

0

0620

Murray 7036404

NUT, Weld, 10-24
(Superseded to 7036404SM)

$3.49

$

Usually ships in 2-12 days

0

0630

Murray 7036415

SCREW, Pan Head, 10 x 5/8
(Superseded to 7036415SM)

$3.99

$

In Stock, only 2 left!

0

0640

Murray 1931320

BOLT, Carriage, 1/4-20 X 3/4
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

0650

Murray 1960685

NUT, Hex, KEPS, Conical, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0660

Murray 1921333

CAPSCREW, Hex-Head, 5/16-18 x 3/4
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0670

Murray 1960044

WASHER, 5/16 x 3/4
(Superseded to 1960044SM)

$4.49

$

In Stock, only 3 left!

0

0680

Murray 1708511

SPACER, 1" O.D.
(Superseded to 1708511SM)

$7.49

$

In Stock, only 2 left!

0

0690

Murray 7026257

Washer, Wave
(Superseded to 7026257MA)

$4.49

$

In Stock, Qty 10

0

0700

Murray 1737765A

LATCH, Bagging Boot
(Superseded to 1737765AYP)

$32.99

$

In Stock, only 1 left!

0

0710

Murray 1960686

NUT, Hex Flange 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0720

Murray 1723244

SPACER, Hydraulic Lift
(Superseded to 1723244SM)

$7.99

$

Usually ships in 2-12 days

0

0730

Murray 1919381

WASHER, 11/32 x 1
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

0740

Murray 1960223

BOLT, Round Head, Square Neck 5/16-18 x 1-1/4
(Superseded to 703446)

Note: ( 52" Mower Decks Only )

$4.49

$

In Stock, Qty 5

0

0750

Murray 1931339

BOLT, Round Head, Square Neck 5/16-18 x 2
(Superseded to 704035)

Note: ( 46" Mower Decks Only )

$4.49

$

In Stock, only 2 left!

0

0760

Murray 1737241A

BAFFLE, 46" Mower Deck
(Superseded to 1737241AYP)

$77.99

$

Usually ships in 2-12 days

0

0770

Murray 1737242A

BAFFLE, 52" Mower Deck
(Superseded to 1737242AYP)

$103.99

$

In Stock, only 1 left!

0

0780

Murray 1676088

SPACER, 5/8 x .320
(Superseded to 1676088SM)

Note: ( 46" Mower Decks Only )

$11.99

$

Usually ships in 2-12 days

0

0790

Murray 1674440

SPACER, 3/8 x 5/8
(Superseded to 1674440SM)

Note: ( 52" Mower Decks Only )

$18.99

$

In Stock, only 1 left!

0

0800

Murray 1927557

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0
