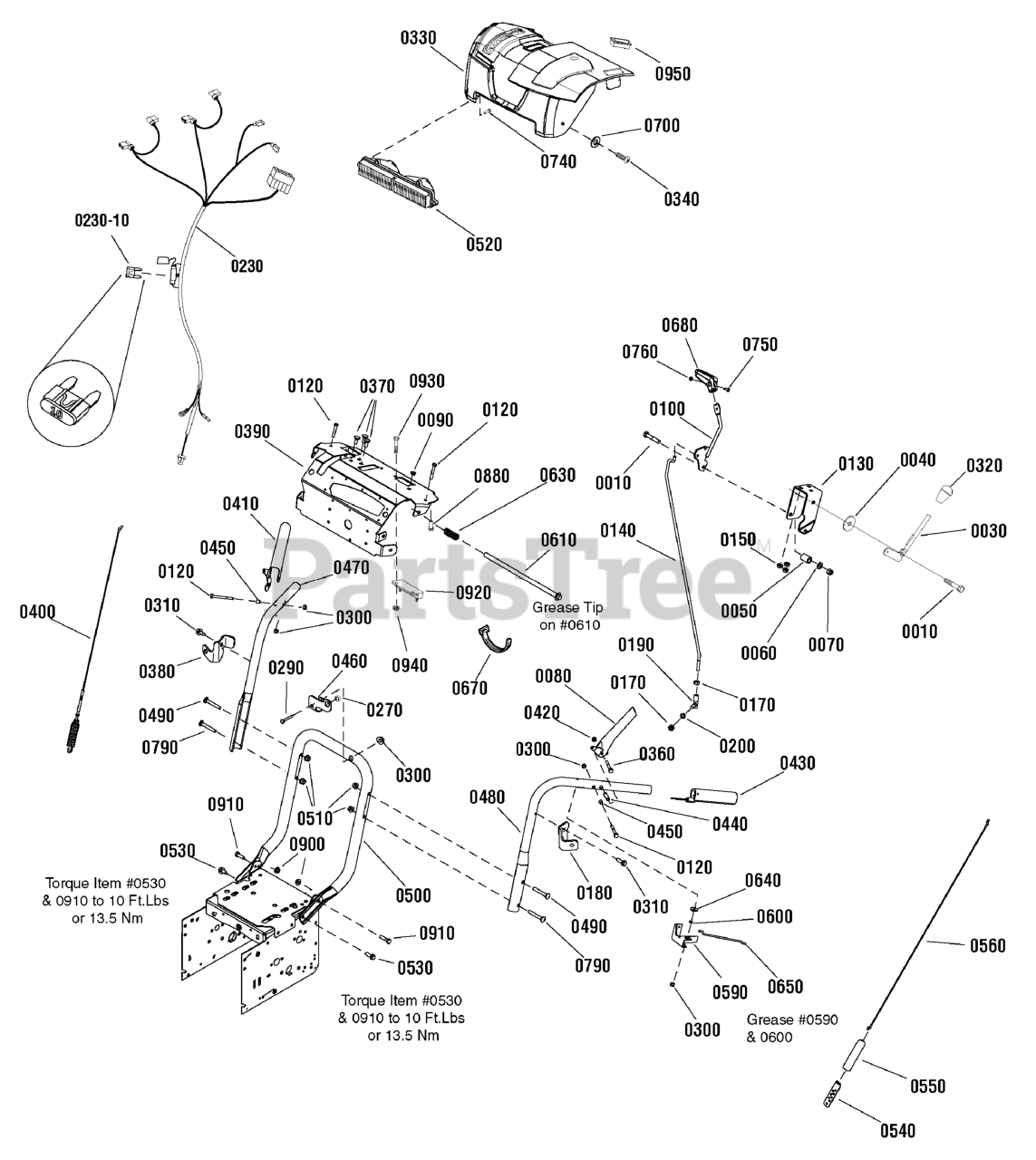

1695699 (CL 841650 S) - Canadiana 33" Snow Thrower, Canada (2009) Handles and Controls Group Parts Diagram

33" Snow Thrower, Canada

Handles and Controls Group Parts Diagram

  • Title

0010

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

Note: (Grade 5)

$4.49

$

In Stock, only 1 left!

0

0030

Murray 1736192YP

LEVER, Deflector Control

$13.99

$

Usually ships in 2-12 days

0

0040

Murray 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 50786MA

SPRING, 3/4

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0070

Murray 1919439SM

NUT, Hex Lock, Esna Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1737690YP

LEVER, Clutch, Left

$37.99

$

Usually ships in 2-12 days

0

0090

Murray 1667588SM

BUSHING, Nylon, 3/8ID x 1/2OD x 1/4 long

$5.99

$

In Stock, Qty 20+

0

0100

Murray 1736836YP

SPEED LEVER
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0120

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4
(Superseded to 703586)

Note: (Grade 5)

$4.99

$

Usually ships in 2-12 days

0

0130

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0140

Murray 1734354SM

ROD
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0150

Murray 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0170

Murray 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1736174YP

BRACKET, Mounting, Panel, Left

$21.99

$

Usually ships in 2-12 days

0

0190

Murray 50782MA

BALL JOINT

$21.99

$

In Stock, Qty 6

0

0200

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0230

Murray 1737599YP

WIRE HARNESS, Headlights

$74.99

$

Usually ships in 2-12 days

0

0230-10

FUSE, Mini, 10 Amp **

Note: (Included with Ref. No. 0230)

$

$

Not available

0270

Murray 1501874MA

BUSHING, Chute Crank

$4.99

$

In Stock, only 1 left!

0

0290

Murray 1931323SM

BOLT, Carriage, 1/4-20 x 2

Note: (Grade 5)

$4.49

$

Usually ships in 2-12 days

0

0300

Murray 1920397SM

NUT, Hex Lock, Esna Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0310

Murray 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0320

Murray 1732470SM

KNOB, Internal Thread, 3/8-16

$19.99

$

In Stock, Qty 6

0

0330

Murray 1736951YP

DASH ASSEMBLY

$128.99

$

Usually ships in 2-12 days

0

0340

Murray 1960556SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0360

Murray 1922837SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/2
(Superseded to 703234)

Note: (Grade 5)

$4.49

$

In Stock, only 4 left!

0

0370

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0380

Murray 1736175YP

BRACKET, Mounting, Panel, Right

$21.99

$

Usually ships in 2-12 days

0

0390

Murray 1737685AYP

SUPPORT, Dash Panel

$44.99

$

Usually ships in 2-12 days

0

0400

Murray 1732471SM

CABLE AND SPRING ASSEMBLY, Auger Drive, Right

$

$

Not available

0410

Murray 1736323YP

LEVER, Clutch, Right

$20.99

$

Usually ships in 2-12 days

0

0420

Murray 1923358SM

NUT, Centerlock Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0430

Murray 1723965SM

HAND GRIP, Heated

$86.99

$

Usually ships in 2-12 days

0

0440

Murray 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0450

Murray 1678392SM

SPACER, 1/4ID x 3/80OD x 5/16
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0460

Murray 1735589YP

BRACKET, Rod Support

$9.49

$

Usually ships in 2-12 days

0

0470

Murray 1734587ASM

HANDLE, Upper, Right

$51.99

$

Usually ships in 2-12 days

0

0480

Murray 1734586ASM

HANDLE, Upper, Left

$55.99

$

In Stock, only 1 left!

0

0490

Murray 1960273SM

BOLT, Carriage, 5/16-18 x 2-1/4
(Superseded to 704421)

Note: (Grade 5)

$5.49

$

In Stock, only 1 left!

0

0500

Murray 1737759AYP

HANDLE, Lower

$176.99

$

Usually ships in 2-12 days

0

0510

Murray 1960686SM

NUT, Hex Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0520

Murray 1736176YP

HEADLIGHT ASSEMBLY.

$64.99

$

Usually ships in 2-12 days

0

0530

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0540

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0550

Murray 308146MA

BOOT, Spring End Cover, 4 inch

$6.49

$

Usually ships in 2-12 days

0

0560

Murray 1502113MA

CABLE, Front Drive

$22.99

$

In Stock, Qty 20+

0

0590

Murray 1733505ASM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0600

Murray 1733095SM

SPACER, 1/4ID x 3/8OD x 1/8

$4.49

$

Usually ships in 2-12 days

0

0610

Murray 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0630

Murray 2108360SM

SPRING, Compression

$5.49

$

In Stock, only 1 left!

0

0640

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0650

Murray 1736360YP

ROD

$11.99

$

Usually ships in 2-12 days

0

0670

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0680

Murray 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0700

Murray 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0740

Murray 7091105YP

SCREW, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0750

Murray 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0760

Murray 1933896SM

NUT, Hex Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0790

Murray 1931338SM

BOLT, Carriage, 5/16-18 x 1-3/4
(Superseded to 703175)

Note: (Grade 5)

$3.99

$

In Stock, only 2 left!

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0900

Murray 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0910

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

Note: (Grade 5)

$4.99

$

Usually ships in 2-12 days

0

0920

Murray 1724037SM

RESISTOR BLOCK

$39.99

$

Usually ships in 2-12 days

0

0930

Murray 1931317SM

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

Note: (Grade 5)

$3.99

$

In Stock, only 1 left!

0

0940

Murray 1960685SM

NUT, Hex Keps, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0950

Murray 1709188SM

PLUG

$4.99

$

In Stock, only 1 left!

0
