1695699 (CL 841650 S) - Canadiana 33" Snow Thrower, Canada (2009) Gear Case Assembly (1738605) Parts Diagram

33" Snow Thrower, Canada

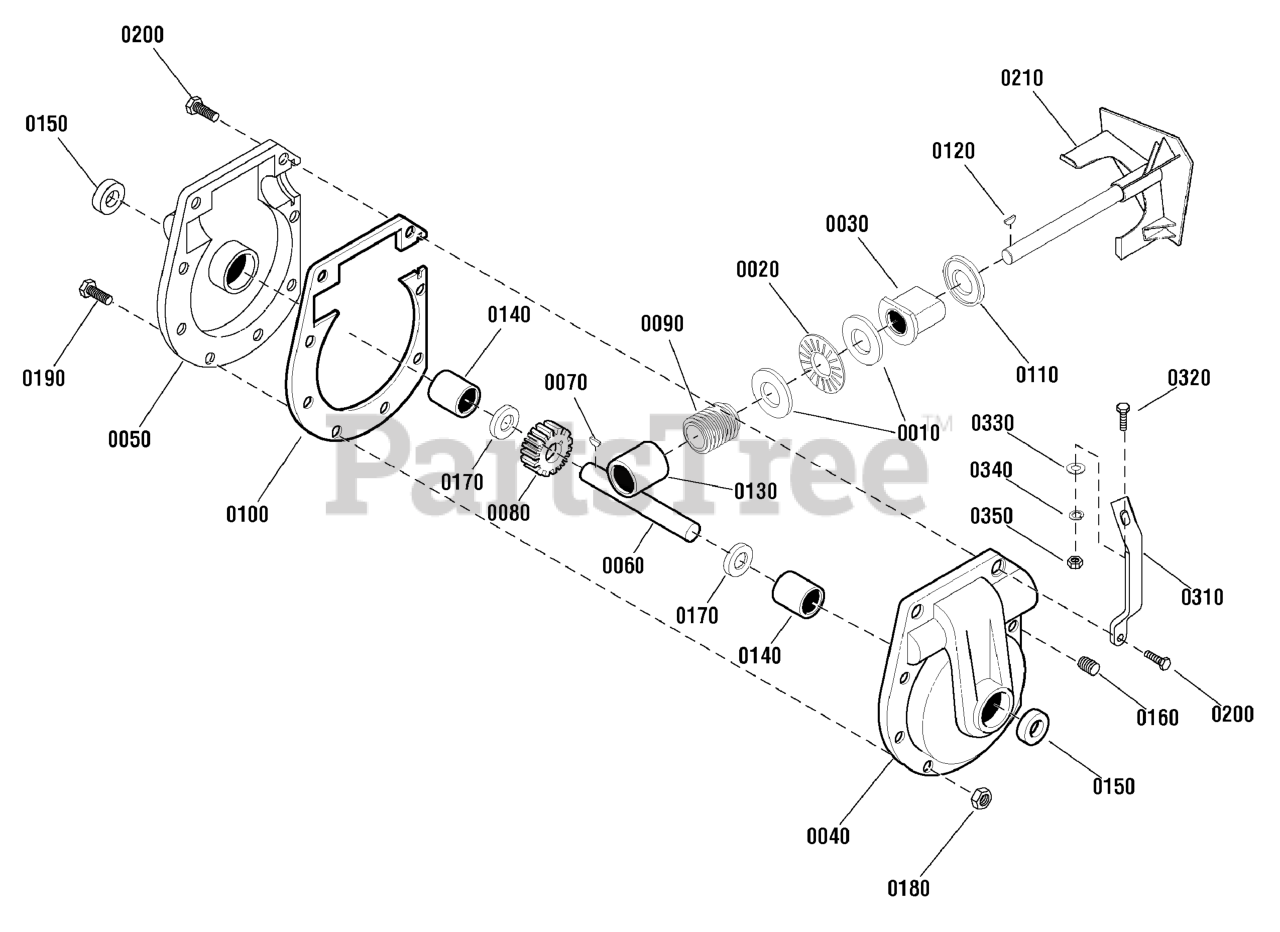

Gear Case Assembly (1738605) Parts Diagram

  • Title
0010

Murray 48275MA

WASHER, Thrust

$6.49

$

In Stock, Qty 6

0

0020

Murray 50684MA

BEARING, Roll, 3/4ID x 1-1/4OD

$6.49

$

In Stock, only 1 left!

0

0030

Murray 583126MA

BEARING, Flange, 3/4ID x 1OD

$13.99

$

In Stock, Qty 6

0

0040

Murray 895MA

CASE, Gear, Left

$

$

Not available

0050

Murray 896MA

CASE, Gear, Right

$32.99

$

In Stock, only 4 left!

0

0060

Murray 760411MA

SHAFT, Auger

$93.99

$

Usually ships in 2-12 days

0

0070

Murray 73905MA

KEY, Woodruf
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

0080

Murray 53730MA

GEAR, Worm
(Superseded to 1752500YP)

$79.99

$

In Stock, Qty 5

0

0090

Murray 53732MA

WORMGEAR

$49.99

$

In Stock, only 1 left!

0

0100

Murray 897MA

GASKET, Gear Box

$

$

Not available

0110

Murray 53737MA

RING, Quad

$4.99

$

In Stock, Qty 8

0

0120

Murray 50795MA

KEY, Hi-Pro

$5.99

$

In Stock, only 1 left!

0

0130

Murray 53731MA

BEARING, Sleeve, 3/4ID x 7/8OD

$5.49

$

In Stock, Qty 11

0

0140

Murray 53743MA

BEARING, Sleeve

$9.99

$

Usually ships in 2-12 days

0

0150

Murray 780151MA

SEAL, OIL

$10.99

$

In Stock, Qty 6

0

0160

Murray 53749MA

PLUG, Pipe
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

0170

Murray 53748MA

WASHER, Flat, 1

$9.99

$

In Stock, only 2 left!

0

0180

Murray 71100MA

NUT, Hex Flange, Serrated Lock, 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

0190

Murray 910828MA

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0200

Murray 330434MA

SCREW, Hex Head, 5/16-24 x 1-1/2
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

0210

Murray 1740585BMYP

IMPELLER
(Superseded to 1740585AYP)

$150.99

$

Usually ships in 2-12 days

0

0310

Murray 1740570MA

BRACE, Gear Box
(Superseded to 703131)

$9.49

$

Usually ships in 2-12 days

0

0320

Murray 302636MA

SCREW, Hex Head, 5/16-18 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0330

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0340

Murray 71060MA

WASHER, Splitlock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0350

Murray 15X144MA

NUT, Hex, 5/16-18

$3.99

$

In Stock, only 1 left!

0
