1695697 - Canadiana 29" Snow Thrower, Canada (2009) Wheels and Tires Group Parts Diagram

29" Snow Thrower, Canada

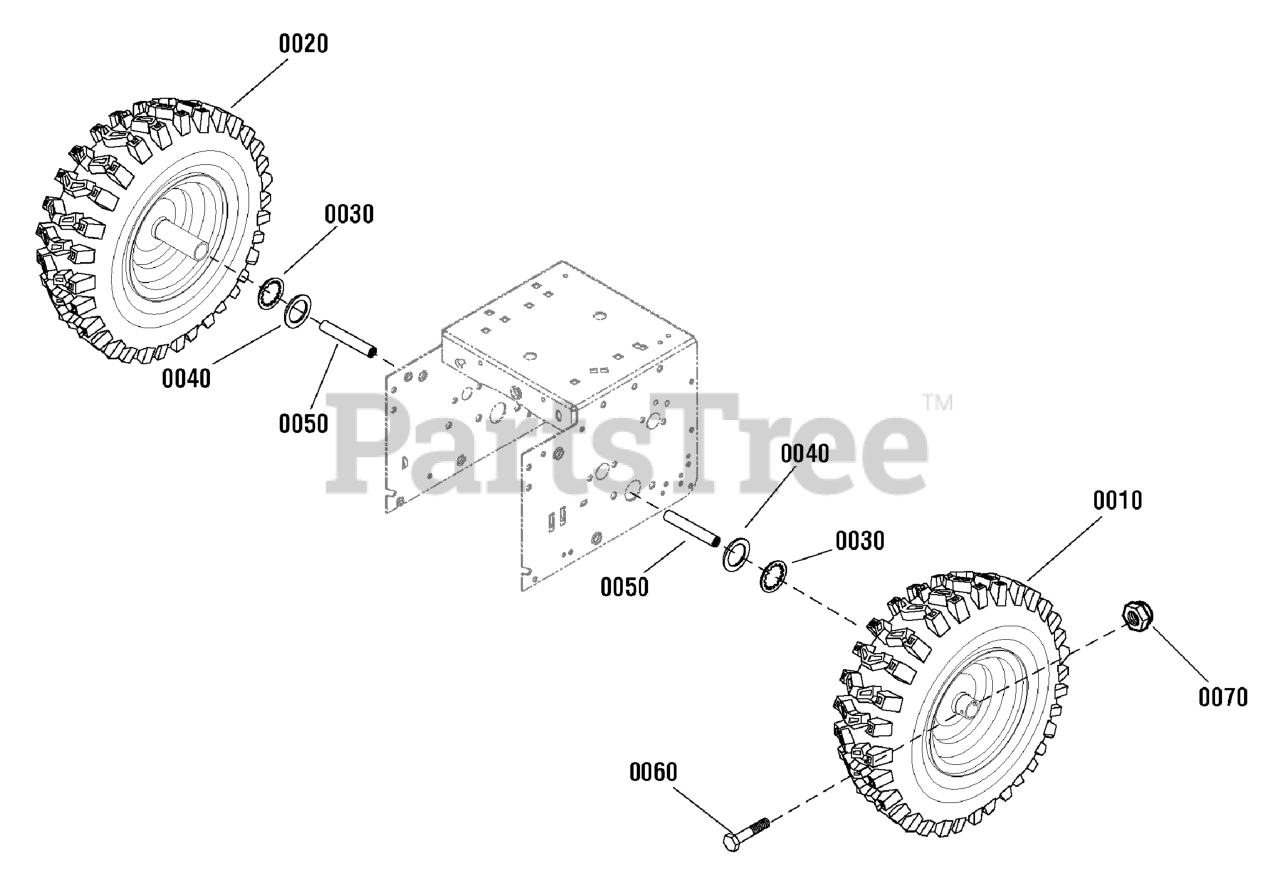

Wheels and Tires Group Parts Diagram

  • Title
0010

Murray 1501839MA

WHEEL ASSEMBLY, XTRAC SL, 16 x 4.8-8, L.H.
(Superseded to 770611)

$167.99

$

Usually ships in 2-12 days

0

0020

Murray 1501838MA

WHEEL ASSEMBLY, XTRAC SL, 16 x 4.8-8, R.H.
(Superseded to 770612)

$192.99

$

Usually ships in 2-12 days

0

0030

Murray 239MA

RETAINER
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, 3/4

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1501138MA

BUSHING, Wheel

$

$

Not available

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4, G5

$4.99

$

In Stock, Qty 5

0

0070

Murray 15X145MA

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0030

Murray 1657528SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4

$4.99

$

In Stock, Qty 5

0

0070

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
