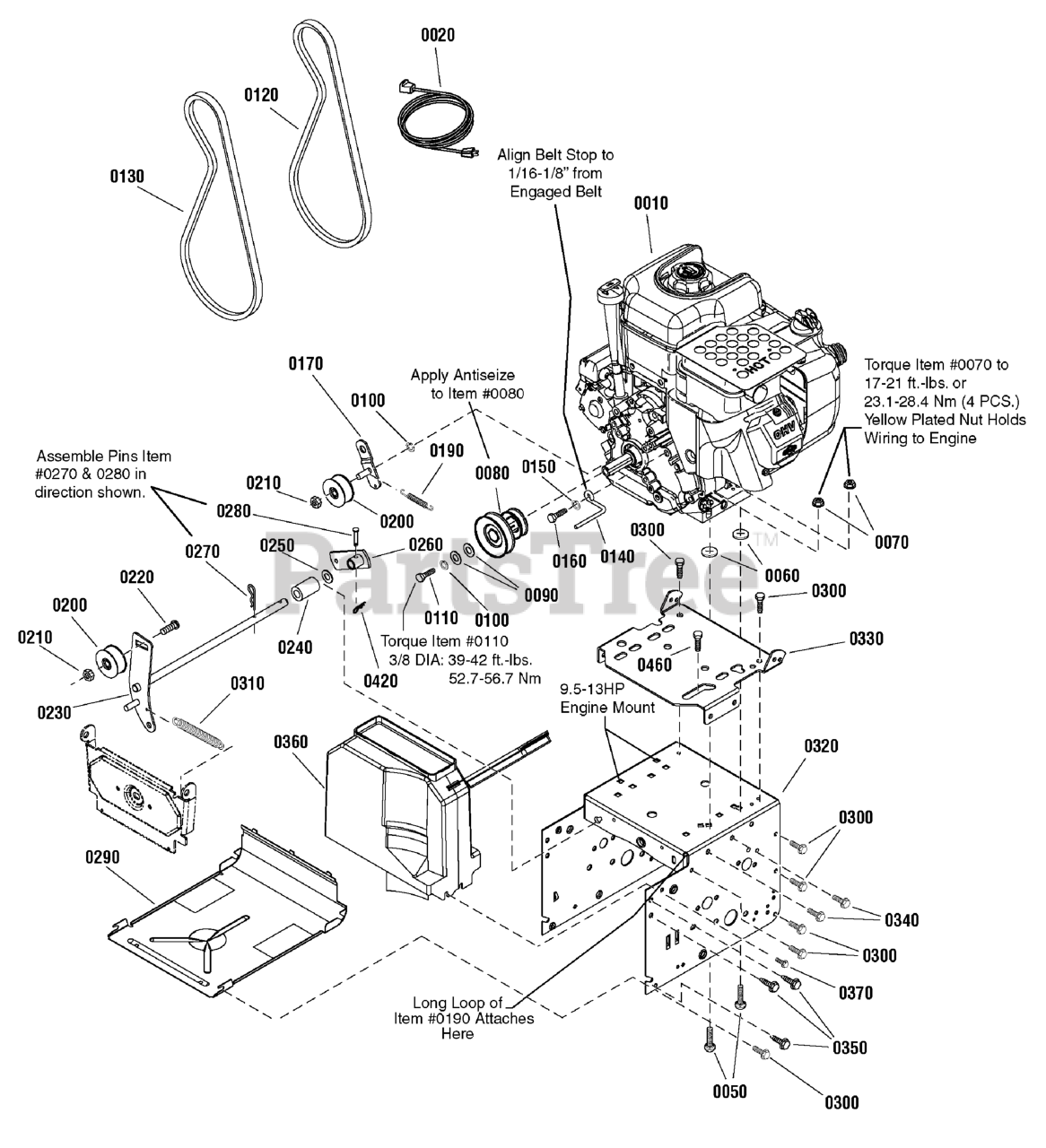

1695697 - Canadiana 29" Snow Thrower, Canada (2009) Engine and Frame Group Parts Diagram

29" Snow Thrower, Canada

Engine and Frame Group Parts Diagram

  • Title

0010

Murray 20M314-0128-E1

* ENGINE-14.5 FTLB, Briggs & Stratton

$

$

Currently unavailable

0020

Murray 761332MA

CORD, Electric 220V

$24.99

$

Usually ships in 2-12 days

0

0050

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0060

Murray 028X76MA

PUSHNUT

$4.49

$

Usually ships in 2-12 days

0

0070

Murray 1960686SM

NUT, Hex Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1501109MA

PULLEY, Engine

$41.99

$

In Stock, only 2 left!

0

0090

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0100

Murray 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

0110

Murray 1960428SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/4
(Superseded to 703165)

Note: (Grade 8)

$3.99

$

Usually ships in 2-12 days

0

0120

Murray 1733324SM

V-BELT, 3L 33.13

$19.99

$

In Stock, Qty 20+

0

0130

Murray 585416MA

V-BELT, Auger, 4L

$22.99

$

In Stock, Qty 20+

0

0140

Murray 1733014SM

STOP, Belt
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

0150

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Murray 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4

Note: (Grade 5)

$3.99

$

Usually ships in 2-12 days

0

0170

Murray 1501112YZMA

IDLER BRACKET
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0

0190

Murray 53704MA

SPRING, Extension Idler

$8.49

$

In Stock, only 2 left!

0

0200

Murray 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, Qty 6

0

0210

Murray 1960251SM

NUT, Centerlock Hex, Jaam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0220

Murray 585781MA

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 703227)

Note: (Grade 5)

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 1501628YZMA

AUGER IDLER

$55.99

$

Usually ships in 2-12 days

0

0240

Murray 1501200MA

SPACER, 1/2ID x 1OD x 1-3/4

$5.99

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

ARM, Control

$20.99

$

In Stock, only 3 left!

0

0270

Murray 711682MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

0290

Murray 1740906ASM

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

0300

Murray 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0310

Murray 165X159MA

SPRING, Extension Auger

$6.99

$

In Stock, Qty 9

0

0320

Murray 1740641BNYP

FRAME BOX

$94.99

$

Usually ships in 2-12 days

0

0330

Murray 1733583BNYP

PLATE, Engine Mount

$43.99

$

Usually ships in 2-12 days

0

0340

Murray 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0350

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1732486SM

COVER, Belt, With Toolbox
(Superseded to 1741069MA)

$

$

Not available

0370

Murray 26X306MA

SCREW, 1/4-AB x 3/4

$4.99

$

Usually ships in 2-12 days

0

0420

Murray 7023590SM

COTTER PIN, 1/4

$3.99

$

In Stock, Qty 20+

0

0460

Murray 2831277SM

NUT, Hex Flange, 5/16-18

$3.49

$

Usually ships in 2-12 days

0
