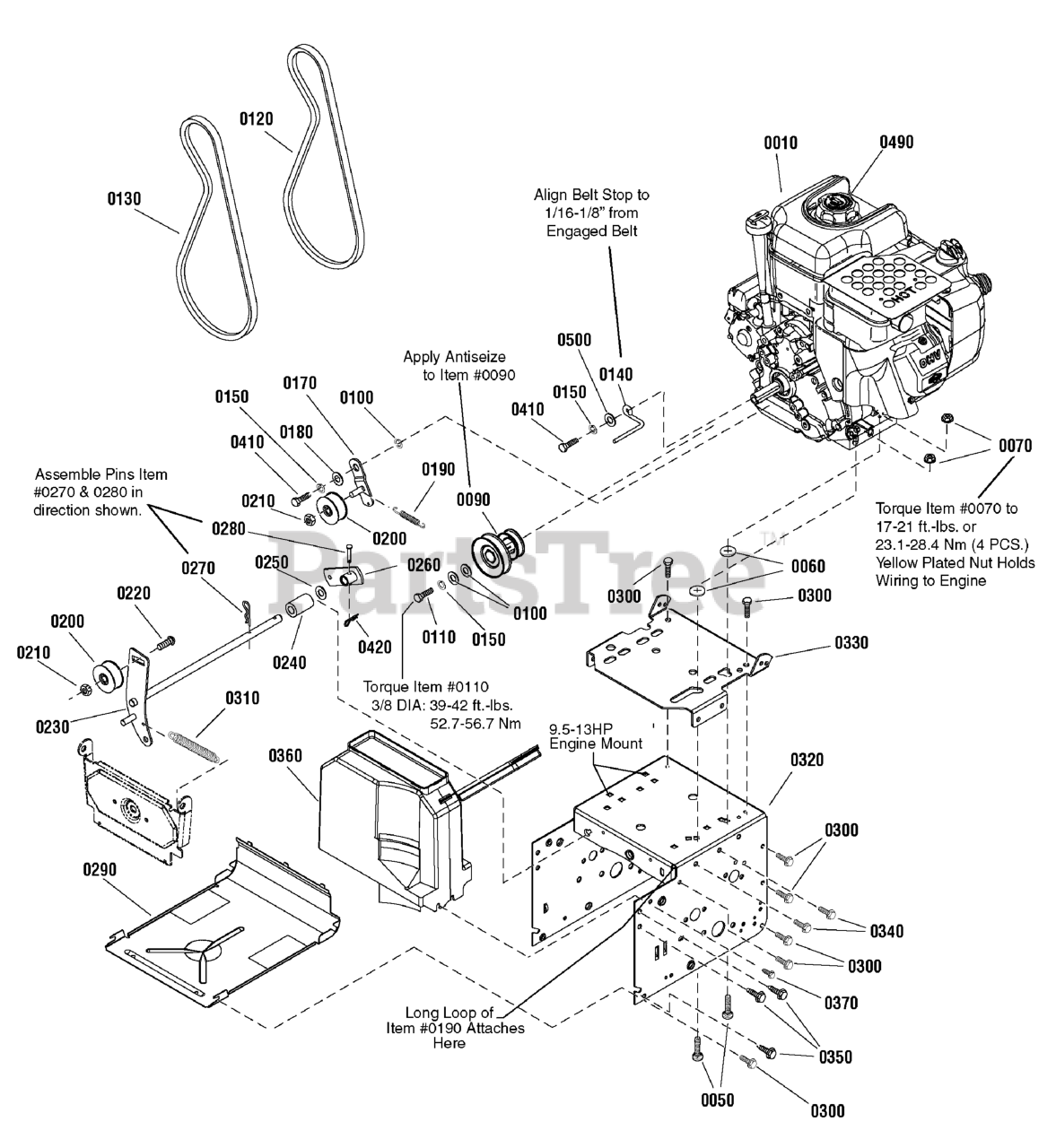

1695695 (CC 61800) - Canadiana 24" Snow Thrower, 8hp, Canada (2009) Engine & Frame Group Parts Diagram

24" Snow Thrower, 8hp, Canada

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 12A116-0141-E8

* ENGINE, 8TP, Briggs & Stratton

$

$

Currently unavailable

0050

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0060

Murray 028X76MA

PUSHNUT, 1/4

$4.49

$

Usually ships in 2-12 days

0

0070

Murray 1739305YP

NUT, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0090

Murray 1501109MA

PULLEY,Engine

$41.99

$

In Stock, only 2 left!

0

0100

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0110

Murray 1921982SM

CAPSCREW, Hex Head, 5/16-24 x 1-1/4, G5
(Superseded to 703299)

$4.99

$

Usually ships in 2-12 days

0

0120

Murray 1733324SM

V-BELT, Drive, 3L, 33.13

$19.99

$

In Stock, Qty 20+

0

0130

Murray 37X120MA

BELT, Auger V4L 35.58

$22.99

$

In Stock, Qty 13

0

0140

Murray 1739070YP

BELT GUIDE

$7.99

$

In Stock, Qty 5

0

0150

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0170

Murray 1501112YZMA

BRACKET, Idler
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0

0190

Murray 53704MA

SPRING, Extension, Idler

$8.49

$

In Stock, only 2 left!

0

0200

Murray 1502120MA

IDLER

$21.99

$

In Stock, Qty 6

0

0210

Murray 1960251SM

NUT, Hex Centerlock Jaam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0220

Murray 585781MA

BOLT, Carriage, 3/8-16 x 1-1/4, G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 1501111YZMA

IDLER, Auger

$

$

Not available

0240

Murray 1501200MA

SPACER, 1/2 ID x 1 OD x 1-3/4, Plastic

$5.99

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

ARM, Control

$20.99

$

In Stock, only 3 left!

0

0270

Murray 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

0290

Murray 1740906ASM

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

0300

Murray 1927429SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0310

Murray 165X160MA

SPRING, Extension, Auger Idler

$

$

Not available

0320

Murray 1740572BNYP

FRAME BOX

$112.99

$

Usually ships in 2-12 days

0

0330

Murray 1733583BNYP

PLATE, Engine Mount

$43.99

$

Usually ships in 2-12 days

0

0340

Murray 1924856SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0350

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1502170MA

COVER, Belt
(Superseded to 1502169MA)

$69.99

$

Usually ships in 2-12 days

0

0370

Murray 26X306MA

CAPSCREW, Hex Washer Head, Tapping, 1/4 x 3/4

$4.99

$

Usually ships in 2-12 days

0

0410

Murray 910828MA

CAPSCREW, Hex Head, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0420

Murray 7023590SM

PIN, Cotter, Self Locking, 1/4

$3.99

$

In Stock, Qty 20+

0

0490

Murray 698109

CAP, Gas

$

$

Not available

0500

Murray 7091528SM

WASHER, Flat, 3/8

$3.99

$

Usually ships in 2-12 days

0
