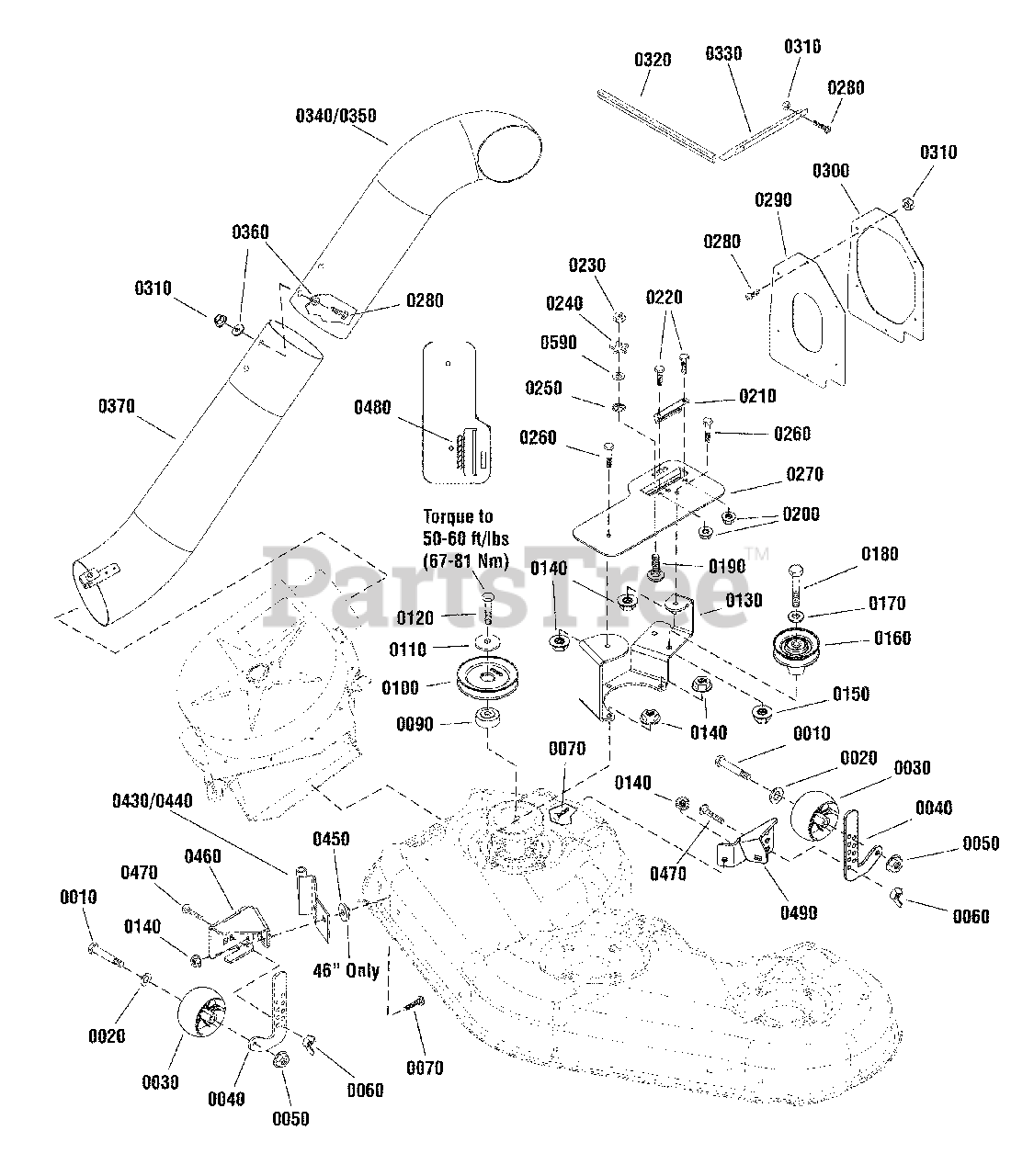

1695642 - Simplicity Turbo, 46" & 52" Deck Turbo, Mounting Kit Parts Diagram

Turbo, 46" & 52" Deck

Turbo, Mounting Kit Parts Diagram

  • Title

0010

Simplicity 1736539

BOLT, Shoulder 3/8 - 16 x 3 -13/32
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0030

Simplicity 1736896

WHEEL, Gauge, 5"
(Superseded to 1736896YP)

$16.99

$

In Stock, Qty 5

0

0040

Simplicity 1739472A

BRACKET, Wheel Adjustable
(Superseded to 1739472AYP)

$74.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1960687

NUT, Hex Flange, 3/8 - 16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0060

Simplicity 7091049

WINGNUT, 3/8 - 16
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

0070

Simplicity 1960223

BOLT, Carriage, 5/16-18 x 7/8, G5
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0090

Simplicity 1738102

SPACER, Pulley
(Superseded to 1738102YP)

$62.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1713090

PULLEY, 3 x 3/4 OD
(Superseded to 1713090SM)

$24.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1656916

WASHER, Spring, 1-3/4 OD
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

0120

Simplicity 1921212

CAPSCREW, Hex-Head, 7/16-14 x 1-1/2
(Superseded to 1921212SM)

$

$

Not available

0130

Simplicity 1737989A

BRACKET, Belt Cover
(Superseded to 1737989AYP)

$133.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1931277

NUT, Hex-Flange, Whiz-Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Simplicity 1931211

NUT, Hex-Flange, Whiz-Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0160

Simplicity 1721134

PULLEY, 3" OD
(Superseded to 1721134SM)

$30.99

$

In Stock, Qty 20+

0

0170

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 7091305

CAPSCREW, Hex-Head, 3/8C X2 GR5 YZ
(Superseded to 7091305SM)

$4.49

$

In Stock, only 1 left!

0

0190

Simplicity 1931338

BOLT, Carriage, 5/16-18 x 1-3/4 G5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0200

Simplicity 725891

NUT, Hex Flange, 1/4 - 20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0210

Simplicity 1739486A

BRACKET, Height of Cut
(Superseded to 1739486AYP)

$24.99

$

Usually ships in 2-12 days

0

0220

Simplicity 7090005

BOLT, Carriage, Short Neck, 1/4c x 1/2
(Superseded to 703978)

$3.99

$

In Stock, Qty 20+

0

0230

Simplicity 7091298

NUT, NYLOCK, 1/2C YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0240

Simplicity 1733098

KNOB, Internal Thread, 5/16 - 18
(Superseded to 1733098SM)

$9.99

$

Usually ships in 2-12 days

0

0250

Simplicity 720376

PUSHNUT, 1/4
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

0260

Simplicity 7090316

BOLT, Carriage, Short Neck, 5/16c x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0270

Simplicity 1738143A

COVER, Belt
(Superseded to 1738143AYP)

$79.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1960404

SCREW, Truss Head 10 - 24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0290

Simplicity 1733741

SEAL, Cover, Nylon
(Superseded to 1733741SM)

$29.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1732735A

FLANGE, Seal 14 GA
(Superseded to 1732735ASM)

$40.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1933896

NUT, Ny-Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0320

Simplicity 1733579

EDGING, 21-1/2"
(Superseded to 1721175SM)

$39.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1733580A

PLATE, Deflector
(Superseded to 1733580ASM)

$36.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1738160

TUBE, Upper, Turbo"
(Superseded to 1738160YP)

Note: (52" Decks Only)

$85.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1732800

TUBE, Upper, Turbo"
(Superseded to 1732800SM)

Note: (46" Decks Only)

$74.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1910531

WASHER, Rivet, 3/16
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1719719

ASSEMBLY, Tube & Clip, Lower
(Superseded to 1719719SM)

$170.99

$

Usually ships in 2-12 days

0

0430

Simplicity 1737997A

ASSEMBLY, Mount, Turbo Blower
(Superseded to 1737997AYP)

Note: (46" Decks Only)

$69.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1739438A

ASSEMBLY, Mount, Turbo Blower
(Superseded to 1739438AYP)

Note: (52" Decks Only)

$41.99

$

Usually ships in 2-12 days

0

0450

Simplicity 1723244

SPACER, Hydraulic Lift, Pivot
(Superseded to 1723244SM)

Note: (46" Decks Only)

$7.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1739471A

BRACKET, Gauge Wheel
(Superseded to 1739471AYP)

$125.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1931350

BOLT, Round Head, Short Neck. 3/8 -16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0480

Simplicity 1737541

DECAL, Height of Cut
(Superseded to 1737541YP)

$10.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1739787A

BRACKET, Gauge Wheel
(Superseded to 1739787AYP)

$125.99

$

Usually ships in 2-12 days

0

0590

Simplicity 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, only 2 left!

0
