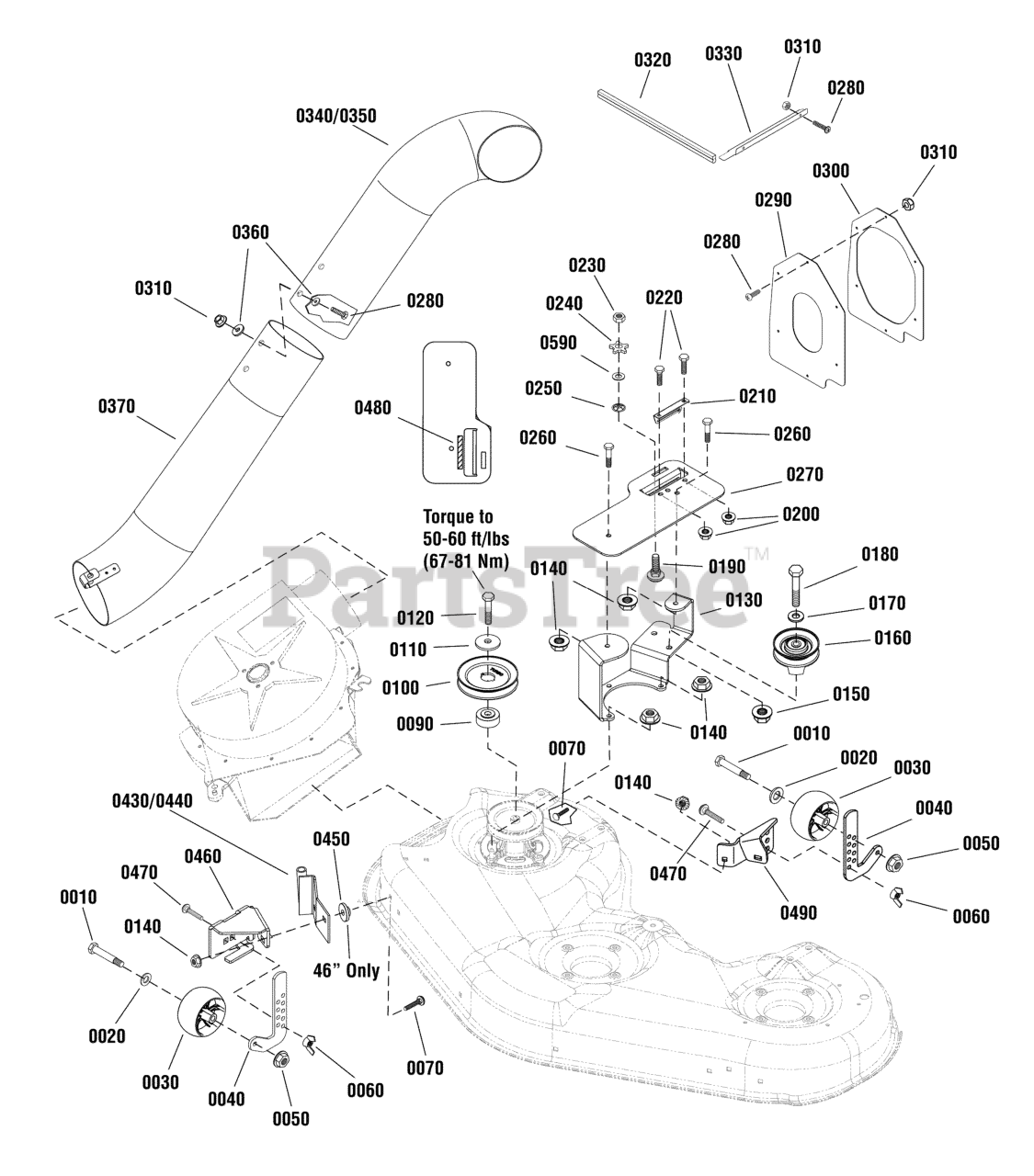

1695642 - Murray Turbo Collection System for 46" & 52" Mower Deck Turbo, Blower (988392) Parts Diagram

Turbo Collection System for 46" & 52" Mower Deck

Turbo, Blower (988392) Parts Diagram

  • Title

0010

Murray 1736539

SHOULDER BOLT, 3/8-16 x 3.41" .750 Thread Yellow
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

0020

Murray 1960170

Flatwasher, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0030

Murray 1736896

GAUGE WHEEL, Black Poly 5" Dia.
(Superseded to 1736896YP)

$16.99

$

In Stock, Qty 6

0

0040

Murray 1739472A

BRACKET, Wheel Adjustable
(Superseded to 1739472AYP)

$74.99

$

Usually ships in 2-12 days

0

0050

Murray 1960687

NUT, Hex Lock Flange, 5/16 - 18 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0060

Murray 7091049

WINGNUT, 3/8-16 w/Nylon Ring
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

0070

Murray 1960223

BOLT, 5/16-18 x 1-1/4" Round Head Short Square Neck GR5, Black
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0090

Murray 1738102

SPACER, Pulley
(Superseded to 1738102YP)

$62.99

$

Usually ships in 2-12 days

0

0100

Murray 1713090

PULLEY, 3 x 3/4 OD
(Superseded to 1713090SM)

$24.99

$

Usually ships in 2-12 days

0

0110

Murray 1656916

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

0120

Murray 1921212

CAPSCREW, Hex-Head, 7/16-14 x 1-1/2
(Superseded to 1921212SM)

$

$

Not available

0130

Murray 1737989A

BRACKET, Belt Cover
(Superseded to 1737989AYP)

$133.99

$

Usually ships in 2-12 days

0

0140

Murray 1931277

NUT, Hex Flange Whiz Lock, 5/16-18 all Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1931211

NUT, Hex Flange Whiz Lock, 3/8-16, Small
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0160

Murray 1721134

PULLEY, 3" OD x .378" ID x .75" WD, w/Bearing
(Superseded to 1721134SM)

$30.99

$

In Stock, Qty 20+

0

0170

Murray 1924940

Flatwasher, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0180

Murray 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5
(Superseded to 7091305SM)

$4.49

$

Usually ships in 2-12 days

0

0190

Murray 1931338

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck, GR 5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0200

Murray 725891

NUT, Hex Flange, 1/4 - 20
(Superseded to 703233)

$4.49

$

In Stock, Qty 9

0

0210

Murray 1739486A

BRACKET, Height of Cut
(Superseded to 1739486AYP)

$24.99

$

Usually ships in 2-12 days

0

0220

Murray 7090005

BOLT, 1/4-20 x 1/2" Short Neck Carriage GR 5
(Superseded to 703978)

$3.99

$

In Stock, Qty 20+

0

0230

Murray 7091298

NUT, 5/16-18 Hex Lock, ESNA, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0240

Murray 1733098

KNOB, Plastic, 5/16-18
(Superseded to 1733098SM)

$9.99

$

Usually ships in 2-12 days

0

0250

Murray 720376

NUT, Push, For 1/4 Stud
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

0260

Murray 7090316

BOLT, Carriage, Short Neck, 5/16c x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0270

Murray 1738143A

COVER, Belt
(Superseded to 1738143AYP)

$79.99

$

Usually ships in 2-12 days

0

0280

Murray 1960404

SCREW, Truss Head Phillips, #10-24 x 3/4 Black
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0290

Murray 1733741

SEAL, Cover, Nylon
(Superseded to 1733741SM)

$29.99

$

Usually ships in 2-12 days

0

0300

Murray 1732735A

FLANGE, Seal 14 GA
(Superseded to 1732735ASM)

$40.99

$

Usually ships in 2-12 days

0

0310

Murray 1933896

NUT, Hex Lock, 10-24 with Nylon Insert NC3B Black
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0320

Murray 1733579

EDGING, Rubber, thick
(Superseded to 1721175SM)

$39.99

$

Usually ships in 2-12 days

0

0330

Murray 1733580A

PLATE, Deflector
(Superseded to 1733580ASM)

$36.99

$

Usually ships in 2-12 days

0

0340

Murray 1738160

TUBE, Upper, Turbo"
(Superseded to 1738160YP)

$85.99

$

Usually ships in 2-12 days

0

0350

Murray 1732800

TUBE, Upper, Turbo"
(Superseded to 1732800SM)

$74.99

$

Usually ships in 2-12 days

0

0360

Murray 1910531

WASHER
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

0370

Murray 1719719

ASSEMBLY, Tube & Clip, Lower
(Superseded to 1719719SM)

$170.99

$

Usually ships in 2-12 days

0

0430

Murray 1737997A

ASSEMBLY, Mount, Turbo Blower
(Superseded to 1737997AYP)

$69.99

$

Usually ships in 2-12 days

0

0440

Murray 1739438A

ASSEMBLY, Mount, Turbo Blower
(Superseded to 1739438AYP)

$41.99

$

Usually ships in 2-12 days

0

0450

Murray 1723244

SPACER,HYDRAULIC LIFT PIVOT
(Superseded to 1723244SM)

Note: 46" Decks only

$7.99

$

Usually ships in 2-12 days

0

0460

Murray 1739471A

BRACKET, Gauge Wheel
(Superseded to 1739471AYP)

$125.99

$

Usually ships in 2-12 days

0

0470

Murray 1931350

BOLT, RD HD SH SQ NK 3/8- 16X1.000 G5 BL
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0480

Murray 1737541

DECAL, Height of Cut
(Superseded to 1737541YP)

$10.99

$

Usually ships in 2-12 days

0

0490

Murray 1739787A

BRACKET, Gauge Wheel
(Superseded to 1739787AYP)

$125.99

$

Usually ships in 2-12 days

0

0590

Murray 1919381

WASHER-0.312(0.34IDX1.00ODX.13THK)BLK
(Superseded to 1919381SM)

$4.49

$

In Stock, only 1 left!

0
