1695598 - Simplicity Clean Sweep Triple Grass Catcher for 46" Mower Triple Catcher Assembly 46" Parts Diagram

Clean Sweep Triple Grass Catcher for 46" Mower

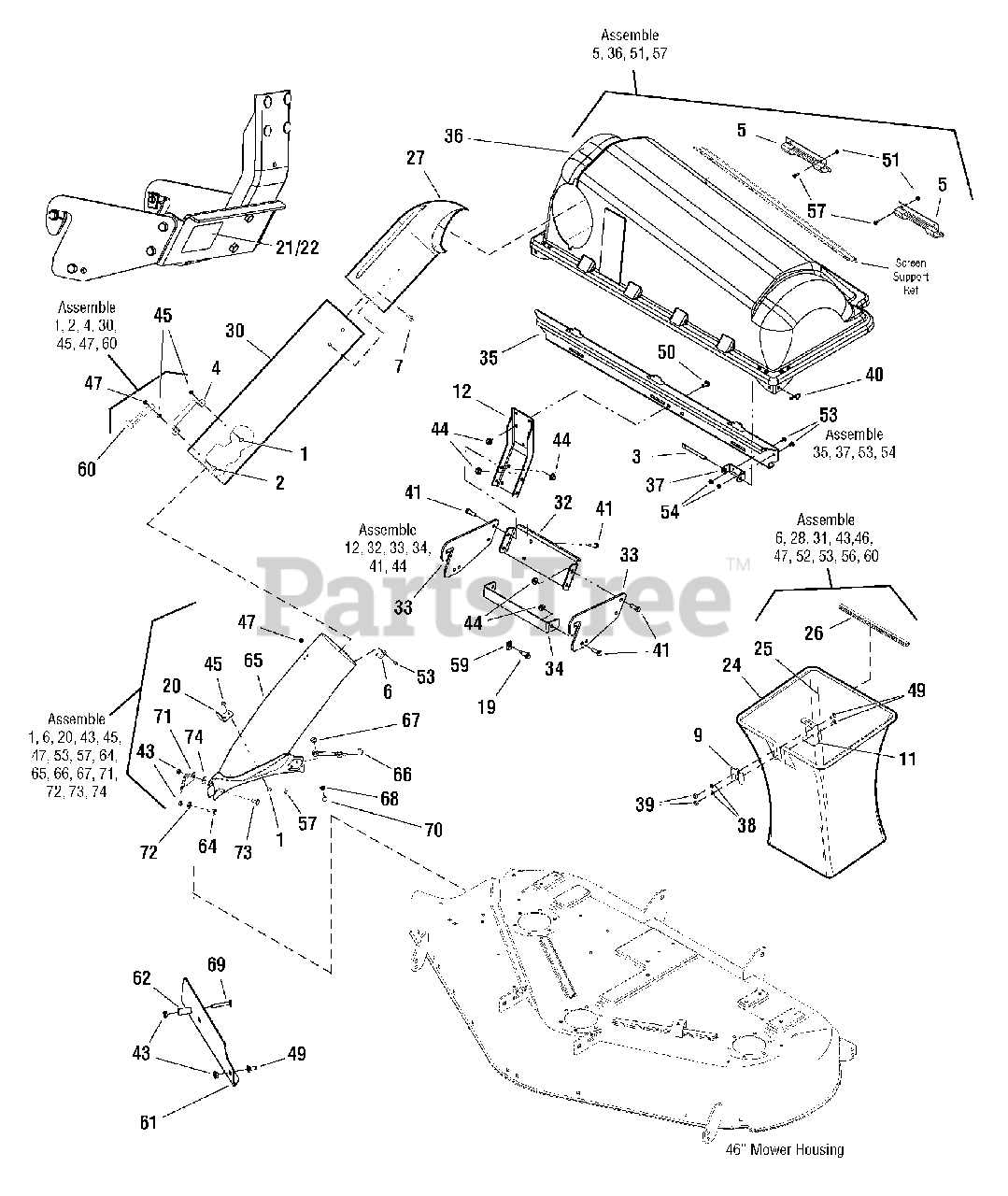

Triple Catcher Assembly 46" Parts Diagram

  • Title

1

Simplicity 004X24MA

SCREW, 1/4 - 20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

2

Simplicity 004X71MA

SCREW, 1/4 - 20 x 1

$4.99

$

In Stock, only 4 left!

0

3

Simplicity 054407ZMA

PIN, Cover Hinge

$14.99

$

In Stock, only 1 left!

0

4

Simplicity 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 3 left!

0

5

Simplicity 054537MA

HANDLE, Plastic

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

7

Simplicity 26X239MA

SCREW, 1/4 X 3/4

$4.49

$

In Stock, only 2 left!

0

9

Simplicity 1672023ASM

CLAMP, Grass Bag Plain

$11.99

$

Usually ships in 2-12 days

0

11

Simplicity 1703807ASM

HANGER, Grass Bag

$21.99

$

In Stock, only 2 left!

0

12

Simplicity 1707526ASM

SUPPORT, Upright

$82.99

$

Usually ships in 2-12 days

0

19

Simplicity 1728976SM

BOLT, Shoulder, 5/16 X 18

$6.49

$

In Stock, only 2 left!

0

20

Simplicity 1737764AYP

UPSTOP, Deflector

$33.99

$

Usually ships in 2-12 days

0

21

MYLAR OVERLAY

Note: (Not Serviceable)

$

$

Not available

22

STICKER, Serial w/Bar Code

Note: (Not Serviceable)

$

$

Not available

24

Simplicity 1733517SM

HOOP, Triple

$76.99

$

Usually ships in 2-12 days

0

25

Simplicity 1733695SM

BAG, Triple Regular

$140.99

$

In Stock, only 2 left!

0

26

Simplicity 1733709SM

CLIP, Tube Grass Bag

$16.99

$

In Stock, only 2 left!

0

27

Simplicity 1733885SM

ELBOW, Upper Tube Poly

$103.99

$

Usually ships in 2-12 days

0

30

Simplicity 1734299SM

TUBE, Clear

$140.99

$

In Stock, Qty 6

0

32

Simplicity 1736028AYP

BRACKET, Upright Support

$121.99

$

Usually ships in 2-12 days

0

33

Simplicity 1736029AYP

PLATE, Bagger Mount

$76.99

$

Usually ships in 2-12 days

0

34

Simplicity 1736030AYP

BRACKET, Hitch Support

$71.99

$

Usually ships in 2-12 days

0

35

Simplicity 1736080AYP

CROSS SUPPORT, Triplle bagger

$186.99

$

Usually ships in 2-12 days

0

36

Simplicity 1736101YP

ASSEMBLY, Cover, Triple Bagger

$695.99

$

Usually ships in 2-12 days

0

37

Simplicity 1736886AYP

PIVOT, Hinge
(Superseded to 1736886BMYP)

$34.99

$

Usually ships in 2-12 days

0

38

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Simplicity 1917372SM

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

40

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

41

Simplicity 1920415SM

CAPSCREW, Hex-Head, 3/8-16 X 1-1/4"
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

43

Simplicity 1927557SM

NUT, Hex Whiz Lock Flange, 5/16 - 18

$4.99

$

Usually ships in 2-12 days

0

44

Simplicity 1928352SM

NUT, Hex-Flange, Whiz-Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

45

Simplicity 1928372SM

NUT, Hex Keps, 1/4 - 20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

47

Simplicity 1930642SM

NUT, Hex Flange Top-Lock, 1/4 - 20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

49

Simplicity 1931333SM

BOLT, Carriage, 5/16 - 18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

50

Simplicity 1931350SM

BOLT, Carriage, 5/16 - 18 x 3/4, G5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

51

Simplicity 1933896SM

NUT, Hex Lock, 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

53

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 X 5/8"

$3.99

$

In Stock, only 1 left!

0

54

Simplicity 1960294SM

NUT, Hex-Flange, Whiz-Lock, 5/16 - 18
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

57

Simplicity 1960404SM

SCREW, Truss Head Phillips, 10 - 24 x 3/4

$3.99

$

In Stock, only 4 left!

0

59

Simplicity 1960717SM

NUT, Speed, Lug-Type, 5/16-18

$6.49

$

Usually ships in 2-12 days

0

60

Simplicity 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

61

Simplicity 1737241AYP

BAFFLE, 46" Mower Deck

$77.99

$

Usually ships in 2-12 days

0

62

Simplicity 1676088SM

SPACER, 5/8" O.D., .320 Long

$11.99

$

Usually ships in 2-12 days

0

64

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 X 1" Long
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

65

Simplicity 1734776YP

BOOT, Bagging

$268.99

$

In Stock, only 2 left!

0

66

Simplicity 7036433SM

STRAP, Mounting Bag

$31.99

$

In Stock, only 1 left!

0

67

Simplicity 7036404SM

NUT, Weld, 10-24

$3.49

$

Usually ships in 2-12 days

0

68

Simplicity 1960685SM

NUT, Hex, KEPS, Conical, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 13

0

69

Simplicity 1931339SM

BOLT, Carriage, 5/16-18 X 2"
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

70

Simplicity 1931317SM

BOLT, Carriage, 1/4-20 X 3/4"
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

71

Simplicity 1737765AYP

LATCH, Bagging Boot

$32.99

$

In Stock, only 1 left!

0

72

Simplicity 1723244SM

SPACER, Hydraulic Lift

$7.99

$

Usually ships in 2-12 days

0

73

Simplicity 1960371SM

SCREW, Hex-Head, 5/16-18 X 3/4"

$5.49

$

Usually ships in 2-12 days

0

74

Simplicity 1708511SM

SPACER, 1" O.D.

$7.49

$

In Stock, only 2 left!

0
