1695594A-00 - Snapper Clean Sweep Triple Grass Catcher for 44" & 50" Mower Triple Catcher Assembly Parts Diagram

Clean Sweep Triple Grass Catcher for 44" & 50" Mower

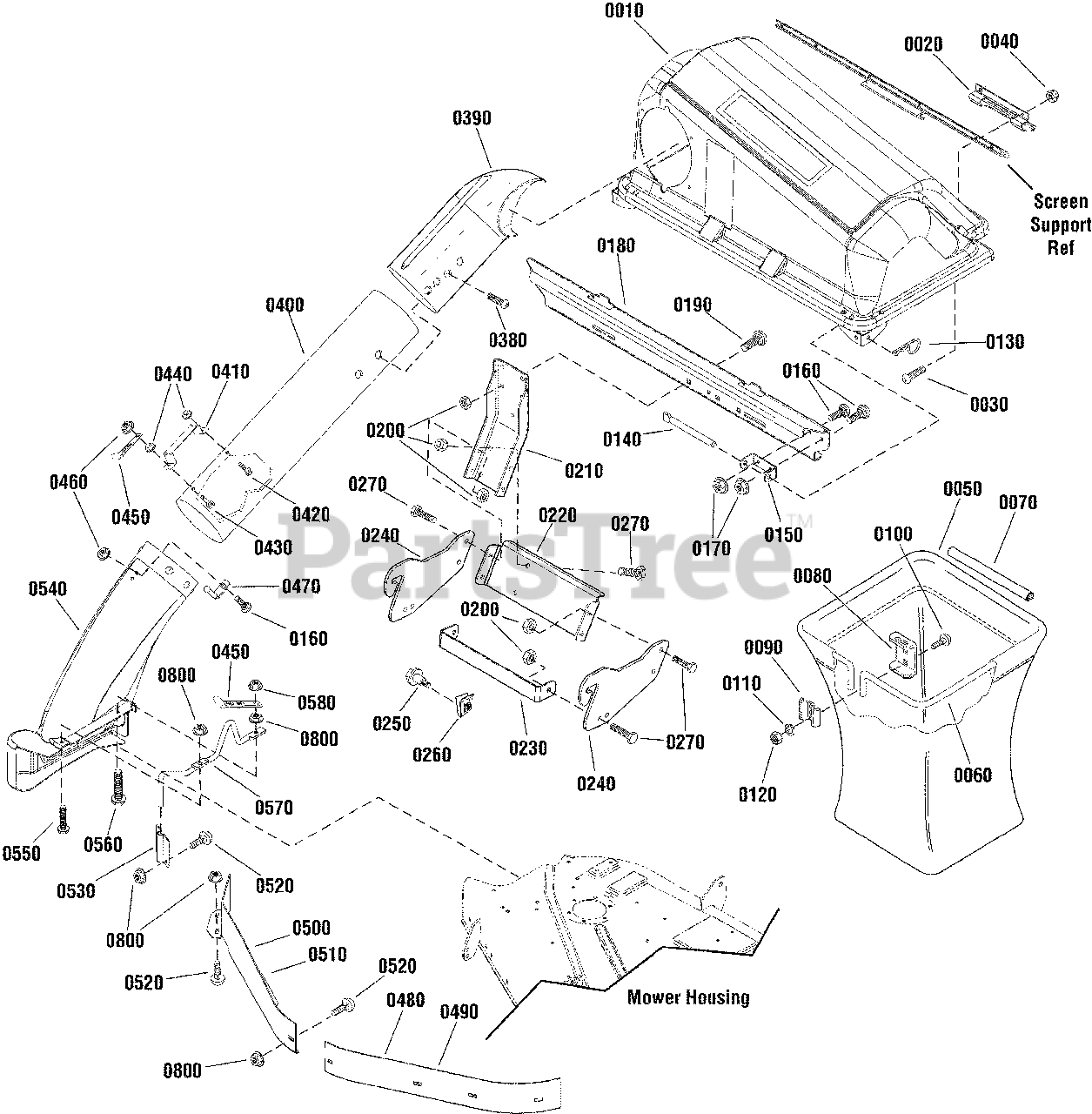

Triple Catcher Assembly Parts Diagram

  • Title

0010

Snapper 1736101

ASSEMBLY, Cover & Screen, Triple Catcher
(Superseded to 1736101YP)

$695.99

$

Usually ships in 2-12 days

0

0020

Snapper 720537

HANDLE, Plastic
(Superseded to 054537MA)

$18.99

$

Usually ships in 2-12 days

0

0030

Snapper 1960404

SCREW, Truss Head Phillips, 10-24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0040

Snapper 1933896

NUT, Hex Lock, 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0050

Snapper 1733695

BAG, Triple Regular
(Superseded to 1733695SM)

$140.99

$

In Stock, only 2 left!

0

0060

Snapper 1733517

HOOP, Triple
(Superseded to 1733517SM)

$76.99

$

Usually ships in 2-12 days

0

0070

Snapper 1733709

EDGING, Tube Grass Bag
(Superseded to 1733709SM)

$16.99

$

In Stock, only 2 left!

0

0080

Snapper 1703807A

HANGER, Grass Bag
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 1 left!

0

0090

Snapper 1672023A

CLAMP, Grass Bag Plain
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

0100

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0110

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0120

Snapper 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0130

Snapper 1918196

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

0140

Snapper 720525

PIN, Cover Hinge
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

0150

Snapper 1736886A

PIVOT, Hinge
(Superseded to 1736886BMYP)

$34.99

$

Usually ships in 2-12 days

0

0160

Snapper 1960252

BOLT, Carriage, 1/4-20 x 5/8
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0170

Snapper 1960294

NUT, Whiz-Lock, Hex-Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

0180

Snapper 1736080A

CROSS SUPPORT
(Superseded to 1736080AYP)

$186.99

$

Usually ships in 2-12 days

0

0190

Snapper 1931350

BOLT, Carriage, 3/8-16 X 1, G5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0200

Snapper 1928352

NUT, Hex Whiz Lock Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0210

Snapper 1707526A

SUPPORT, Upright
(Superseded to 1707526ASM)

$82.99

$

Usually ships in 2-12 days

0

0220

Snapper 1736028A

BRACKET, Upright
(Superseded to 1736028AYP)

$121.99

$

Usually ships in 2-12 days

0

0230

Snapper 1736030A

BRACKET, Hitch
(Superseded to 1736030AYP)

$71.99

$

Usually ships in 2-12 days

0

0240

Snapper 1736029A

PLATE, Bagger Mount
(Superseded to 1736029AYP)

$76.99

$

Usually ships in 2-12 days

0

0250

Snapper 1728976

BOLT, Shoulder, 5/16-18
(Superseded to 1728976SM)

$6.49

$

In Stock, only 2 left!

0

0260

Snapper 1960717

NUT, Speed, 5/16-18
(Superseded to 1960717SM)

$6.49

$

Usually ships in 2-12 days

0

0270

Snapper 1920415

CAPSCREW, Hex-Head, 3/8-16 X 1-1/4, G5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

0380

Snapper 722855

SCREW, 1/4 X 3/4
(Superseded to 26X239MA)

$4.49

$

Usually ships in 2-12 days

0

0390

Snapper 1733885

ELBOW, Upper Tube Poly
(Superseded to 1733885SM)

$103.99

$

Usually ships in 2-12 days

0

0400

Snapper 1734299

TUBE, Clear Poly
(Superseded to 1734299SM)

$140.99

$

In Stock, Qty 6

0

0410

Snapper 720533

HANDLE, Connect Tube
(Superseded to 720533FS)

$17.99

$

Usually ships in 2-12 days

0

0420

Snapper 720074

SCREW, 1/4-20 x 1/2
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

0430

Snapper 720076

SCREW, 1/4-20 x 1
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

0440

Snapper 1928372

NUT, Hex Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

0450

Snapper 2171600

STRAP, Hood
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

0460

Snapper 1930642

NUT, Hex Flange Top-Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, Qty 6

0

0470

Snapper 720543

PIN, Latch
(Superseded to 054563MA)

$23.99

$

In Stock, only 2 left!

0

0480

Snapper 1716870A

BAFFLE, Blowout L.H. 50" Mower Deck
(Superseded to 1716870ASM)

$164.99

$

In Stock, only 1 left!

0

0490

Snapper 1716879A

BAFFLE, Blowout L.H. 44" Mower Deck
(Superseded to 1716879ASM)

$115.99

$

Usually ships in 2-12 days

0

0500

Snapper 1726364A

BAFFLE, Blowout R.H. 50" Mower Deck
(Superseded to 1726364ASM)

$74.99

$

Usually ships in 2-12 days

0

0510

Snapper 1731990A

BAFFLE, Blowout R.H. 44" Mower Deck
(Superseded to 1731990ASM)

$122.99

$

In Stock, only 1 left!

0

0520

Snapper 1931332

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0530

Snapper 1726578A

PLATE, Chute Rod
(Superseded to 1726578ASM)

$32.99

$

Usually ships in 2-12 days

0

0540

Snapper 1734327

TUBE, Boot Poly
(Superseded to 1734327SM)

$

$

Not available

0550

Snapper 1960371

SCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 1960371SM)

$5.49

$

Usually ships in 2-12 days

0

0560

Snapper 1930595

SCREW, Hex Whiz Lock Flange, 5/16-18 x 1-1/4
(Superseded to 1930595SM)

$3.99

$

In Stock, Qty 5

0

0570

Snapper 1733946

ROD, Boot Mount, Deflector Prop, 44/50"
(Superseded to 1733946SM)

$44.99

$

Usually ships in 2-12 days

0

0580

Snapper 1935048

NUT, Hex Flange Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0800

Snapper 1927557

NUT, Whiz-Lock, Hex-Flange, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0
