1695592 - Simplicity Clean Sweep Twin Grass Catcher for 38" & 42" Mower Twin Catcher Parts Diagram

Clean Sweep Twin Grass Catcher for 38" & 42" Mower

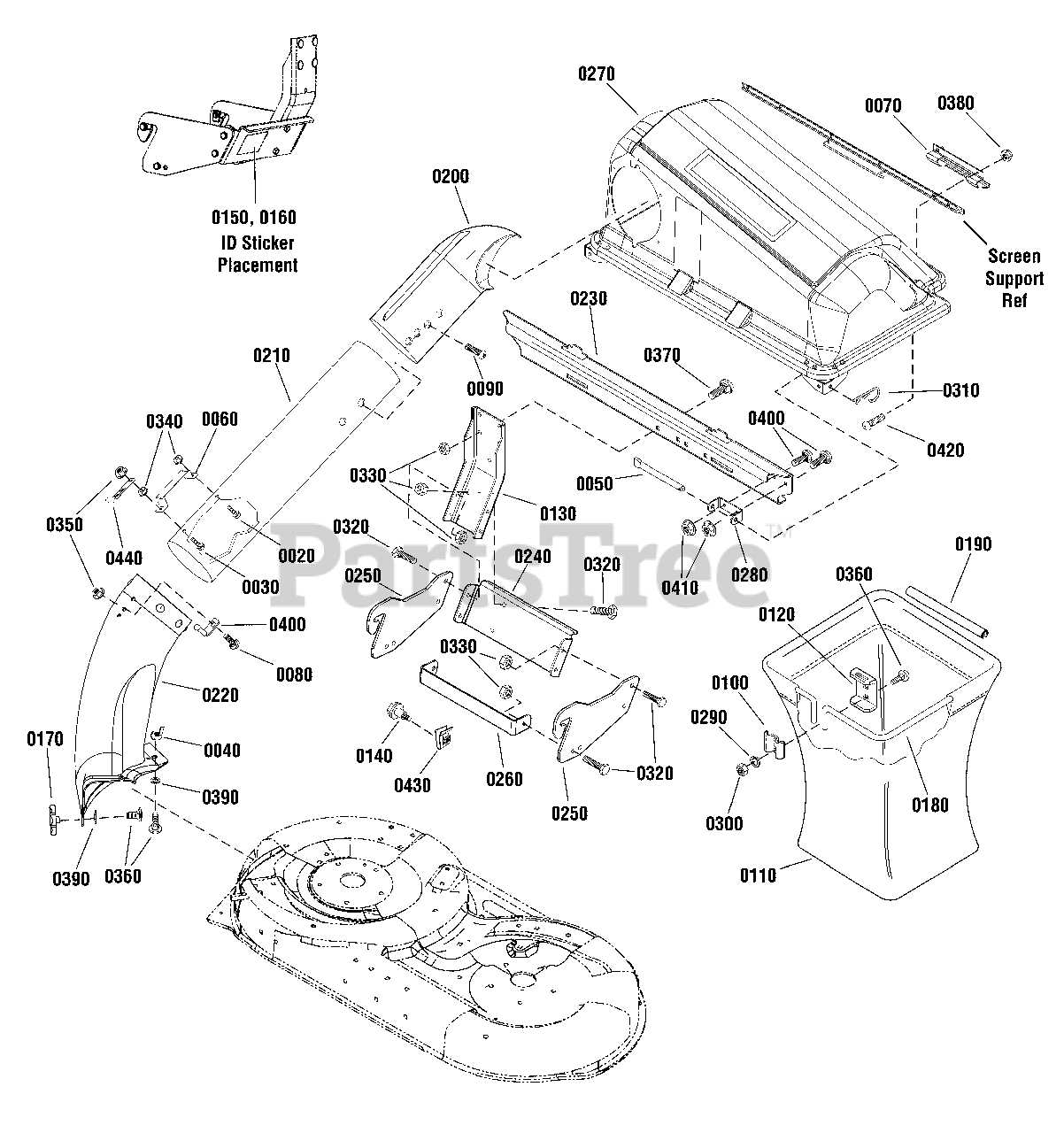

Twin Catcher Parts Diagram

  • Title

0020

Simplicity 720074

SCREW-Machine, 1/4-20 x 1/2
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

0030

Simplicity 720076

SCREW, Machine,1/4-20 x 1
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

0040

Simplicity 720125

WINGNUT, 5/16-18
(Superseded to 703141)

$3.49

$

In Stock, only 3 left!

0

0050

Simplicity 720525

PIN, Cover Hinge, 3/8 Dia.x 3-3/4
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

0060

Simplicity 720533

HANDLE, Tube Connect
(Superseded to 720533FS)

$17.99

$

Usually ships in 2-12 days

0

0070

Simplicity 720537

HANDLE, Plastic
(Superseded to 054537MA)

$18.99

$

Usually ships in 2-12 days

0

0080

Simplicity 720543

PIN, Latch
(Superseded to 054563MA)

$23.99

$

In Stock, only 2 left!

0

0090

Simplicity 722855

SCREW, 1/4 x 3/4
(Superseded to 26X239MA)

$4.49

$

In Stock, only 2 left!

0

0100

Simplicity 1672023A

CLAMP
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1703764

BAG, Grass, Cloth, 15-1/2 x 16 x 22-1/2
(Superseded to 5023290)

$

$

Not available

0120

Simplicity 1703807A

HANGER, Grass Bag Hoop, Twin
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 2 left!

0

0130

Simplicity 1707526A

SUPPORT, Upright
(Superseded to 1707526ASM)

$82.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1728976

BOLT, Shoulder, 5/16-18 x 1-5/8, G5
(Superseded to 1728976SM)

$6.49

$

In Stock, only 2 left!

0

0150

Simplicity 1731389

MYLAR OVERLAY

$

$

Not available

0160

Simplicity 1731420

STICKER, Serial Number

$

$

Not available

0170

Simplicity 1733098

KNOB, Threaded, 5 Lobe, 5/16-18 x 3/4 Lg
(Superseded to 1733098SM)

$9.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1733491

HOOP, Twin, 1/2 Dia.
(Superseded to 1733491SM)

$146.99

$

In Stock, only 2 left!

0

0190

Simplicity 1733709

EDGING, 12" Lg
(Superseded to 1733709SM)

$16.99

$

In Stock, only 2 left!

0

0200

Simplicity 1733885

ELBOW, Upper Tube
(Superseded to 1733885SM)

$103.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1734299

TUBE, Clear
(Superseded to 1734299SM)

$140.99

$

In Stock, Qty 6

0

0220

Simplicity 1734367

TUBE, Boot
(Superseded to 1734367SM)

$222.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1736026

CROSS SUPPORT, Twin
(Superseded to 1736026YP)

$153.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1736028

BRACKET, Upright Support

$

$

Not available

0250

Simplicity 1736029

PLATE, Bagger Mount

$

$

Not available

0260

Simplicity 1736030

BRACKET, Hitch Support

$

$

Not available

0270

Simplicity 1736656

COVER & SCREEN ASSEMBLY, Twin
(Superseded to 1736656YP)

$488.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1736886

PIVOT, Hinge
(Superseded to 1736886BMYP)

$34.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0300

Simplicity 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0310

Simplicity 1918196

PIN, Quick, 1-7/8 Lg
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

0320

Simplicity 1920415

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, G5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1928352

NUT, Hex Flange, 3/8-16, Whiz Lock
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

0340

Simplicity 1928372

NUT, Hex Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

0350

Simplicity 1930642

NUT, Hex Flange, 1/4-20 TOPLOCK SMALL
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

0360

Simplicity 1931333

BOLT-Carriage,5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0370

Simplicity 1931350

BOLT, Carriage,3/8- 16 x 1, G5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0380

Simplicity 1933896

NUT, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0390

Simplicity 1933988

PUSHNUT, 5/16, Dia. x 5/8 OD
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0400

Simplicity 1960252

BOLT-Carriage,1/4-20 x 5/8, G5
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0410

Simplicity 1960294

NUT, Hex Flange, 1/4-20, Whiz Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0420

Simplicity 1960404

SCREW, Truss Head, Phillips, #10-24 x 3/4,
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0430

Simplicity 1960717

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1960717SM)

$6.49

$

Usually ships in 2-12 days

0

0440

Simplicity 2171600

STRAP, Hood
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0
