1695592 - Murray 38" & 42" Clean Sweep Twin Bag Grass Catcher Twin Catcher Parts Diagram

38" & 42" Clean Sweep Twin Bag Grass Catcher

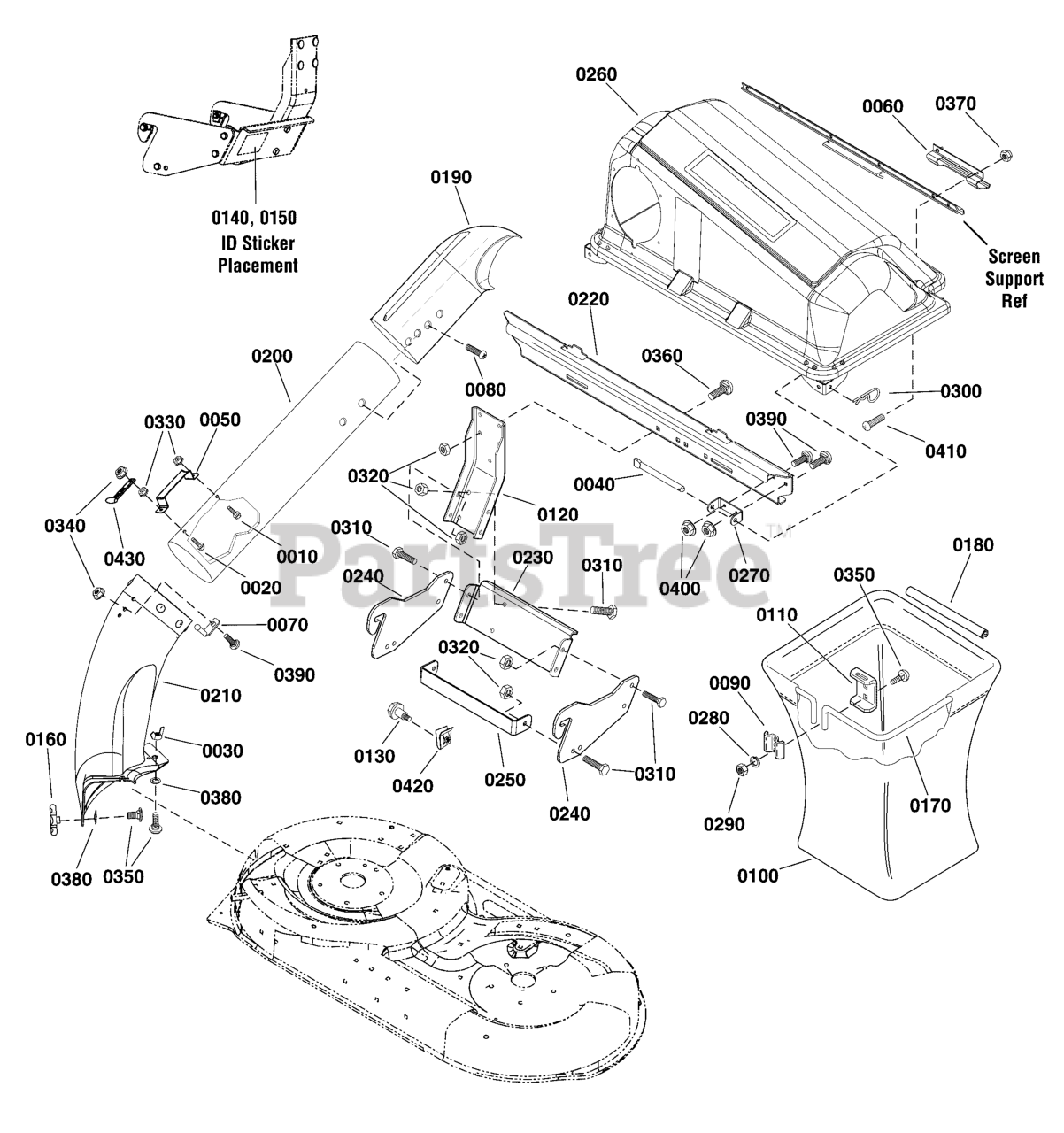

Twin Catcher Parts Diagram

  • Title

0010

Murray 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0020

Murray 004X71MA

SCREW, Machine, 1/4-20 X 1

$4.99

$

In Stock, only 4 left!

0

0030

Murray 703141

NUT, Wing, 5/16-18

$3.49

$

In Stock, only 3 left!

0

0040

Murray 054407ZMA

PIN, Cover Hinge, 3/8 Dia.x 3-3/4

$14.99

$

In Stock, only 1 left!

0

0050

Murray 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 3 left!

0

0060

Murray 054537MA

HANDLE, Plastic

$18.99

$

Usually ships in 2-12 days

0

0070

Murray 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0080

Murray 26X239MA

SCREW, 1/4 Phillips

$4.49

$

Usually ships in 2-12 days

0

0090

Murray 1672023ASM

CLAMP, 10 Gauge for (2) 1-2" Diameter Rods

$11.99

$

Usually ships in 2-12 days

0

0100

Murray 1703764SM

BAG, Grass, Cloth, 15-1/2 x 16 x 22-1/2

$96.99

$

In Stock, Qty 12

0

0110

Murray 1703807ASM

HANGER, Grass Bag Hoop, 10 Gauge Twin

$21.99

$

In Stock, only 1 left!

0

0120

Murray 1707526ASM

SUPPORT, Upright

$82.99

$

Usually ships in 2-12 days

0

0130

Murray 1728976SM

BOLT, Shoulder, 5/16-18 x 1-5/8

$6.49

$

In Stock, only 2 left!

0

0140

Murray 1731389

MYLAR OVERLAY

$

$

Not available

0150

DECAL, ID Plate

$

$

Not available

0160

Murray 1733098SM

KNOB, Threaded, 5 Lobe, 5/16-18 x 3/4 Lg

$9.99

$

In Stock, only 3 left!

0

0170

Murray 1733491SM

HOOP, Twin, 1/2 Dia.

$146.99

$

In Stock, only 2 left!

0

0180

Murray 1733709SM

EDGING, Tube Grass Bag

$16.99

$

In Stock, only 2 left!

0

0190

Murray 1733885SM

ELBOW, Upper Tube

$103.99

$

Usually ships in 2-12 days

0

0200

Murray 1734299SM

TUBE, Clear Poly, ZTS Twin Catcher

$140.99

$

In Stock, Qty 6

0

0210

Murray 1734367SM

TUBE, Boot Black Poly, 42" Mower

$222.99

$

Usually ships in 2-12 days

0

0220

Murray 1759713YP

CROSS SUPPORT, Twin

$159.99

$

Usually ships in 2-12 days

0

0230

Murray 1736028AYP

BRACKET, Upright Support

$121.99

$

Usually ships in 2-12 days

0

0240

Murray 1736029AYP

PLATE, Bagger Mount

$76.99

$

Usually ships in 2-12 days

0

0250

Murray 1736030AYP

BRACKET, Hitch Support

$71.99

$

Usually ships in 2-12 days

0

0260

Murray 1736656YP

COVER & SCREEN ASSEMBLY, Twin

$488.99

$

Usually ships in 2-12 days

0

0270

Murray 1736886AYP

PIVOT, Hinge
(Superseded to 1736886BMYP)

$34.99

$

Usually ships in 2-12 days

0

0280

Murray 1917356SM

WASHER, Lock Helical Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0290

Murray 703465

NUT, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0300

Murray 703796

PIN, Hair

$5.49

$

In Stock, only 1 left!

0

0310

Murray 703871

CAPSCREW, Hex Head, 3/8-16 X 1 1/4

$4.99

$

Usually ships in 2-12 days

0

0320

Murray 703793

NUT, Lock, Flange, 3/8-16

$4.49

$

In Stock, only 3 left!

0

0330

Murray 703914

NUT, Hex, 1/4-20

$3.49

$

In Stock, Qty 14

0

0340

Murray 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, Qty 6

0

0350

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0360

Murray 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0370

Murray 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0380

Murray 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0390

Murray 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0400

Murray 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 5

0

0410

Murray 1960404SM

SCREW, Truss Head, Phillips, #10-24 x 3/4,

$3.99

$

In Stock, only 4 left!

0

0420

Murray 1960717SM

NUT, Speed, 5/16-1

$6.49

$

Usually ships in 2-12 days

0

0430

Murray 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0
