1695591 - Simplicity 46" Mower Deck 46" & 52" Height Adjusting & Roller Group Parts Diagram

46" Mower Deck

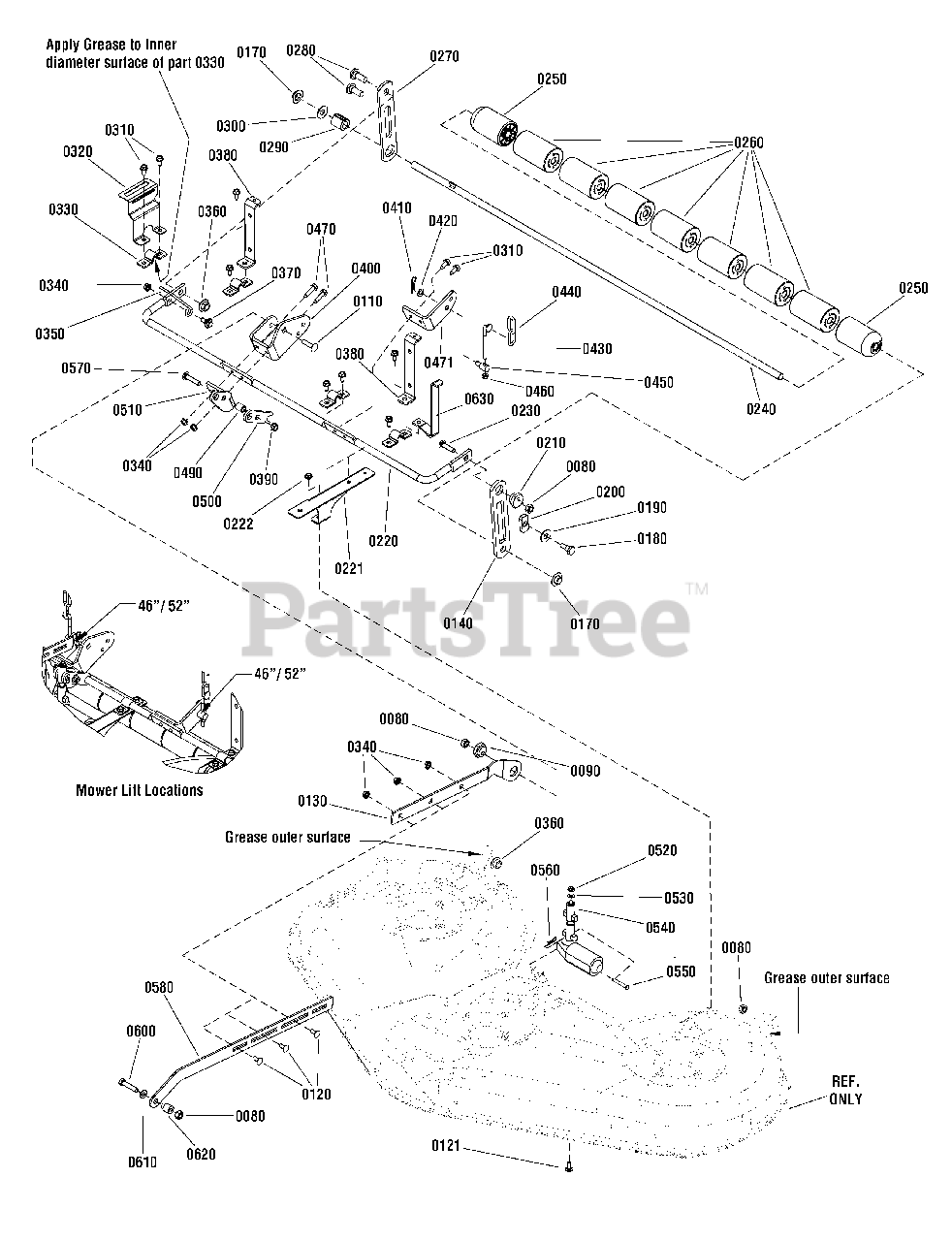

46" & 52" Height Adjusting & Roller Group Parts Diagram

  • Title

0080

Simplicity 2860681SM

NUT, Hex Toplock, Spiral Lock Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

0090

Simplicity 1727381SM

NUT, Hex Adjusting

$13.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1960268SM

BOLT, Carriage, 3/8-16 x 1 1/4 GR5

$4.49

$

In Stock, Qty 9

0

0120

Simplicity 703185

BOLT, Carriage, 5/16-18 x 3/4 GR5

$3.49

$

In Stock, Qty 12

0

0121

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4 GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0130

Simplicity 1739691AYP

ARM, Pitch Adjustment, Front

$35.99

$

In Stock, only 1 left!

0

0140

Simplicity 1704073ASM

BAR, Roller

$34.99

$

In Stock, only 1 left!

0

0170

Simplicity 1960520SM

PUSHNUT, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

0190

Simplicity 703451

WASHER, 1/2 x 1-1/4

$4.49

$

In Stock, Qty 20+

0

0200

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

0210

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

0220

Simplicity 1736563YP

SHAFT, Rocker

$155.99

$

Usually ships in 2-12 days

0

0221

Simplicity 1734806AYP

BRACKET, Rocker Shaft, 46"

$39.99

$

Usually ships in 2-12 days

0

0222

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0230

Simplicity 7091945YP

BOLT, Carriage, 3/8-16 x 1-1/2 GR5

$4.49

$

In Stock, only 2 left!

0

0240

Simplicity 1736155YP

SHAFT, Roller

$50.99

$

In Stock, only 3 left!

0

0250

Simplicity 1722036SM

ROLLER, Rounded

$7.99

$

In Stock, Qty 20+

0

0260

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

0270

Simplicity 1735327AYP

BAR, Roller, RD Slot

$22.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1737409YP

BOLT, Shoulder

$12.99

$

In Stock, only 2 left!

0

0290

Simplicity 1736152YP

SPACER, Roller

$8.49

$

In Stock, only 1 left!

0

0300

Simplicity 1960035SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

0310

Simplicity 1664847SM

SCREW, Hex Head, Taptite, 5/16-18
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0320

Simplicity 1756158AYP

BRACKET, Height of Cut

$21.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1736156AYP

STRAP, Rocker Shaft

$8.49

$

Usually ships in 2-12 days

0

0340

Simplicity 015X79MA

NUT, Hex Flange Serrated, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0350

Simplicity 1736851YP

ROD, Height of Cut Indicator

$7.49

$

Usually ships in 2-12 days

0

0360

Simplicity 1930644SM

NUT, Hex Flange, Two-Way Lock 1/2-13

$3.49

$

In Stock, Qty 6

0

0370

Simplicity 009X67MA

BOLT, Shoulder, 5/16-18

$5.49

$

In Stock, only 3 left!

0

0380

Simplicity 1737219AYP

UPSTOP, Rear

$27.99

$

Usually ships in 2-12 days

0

0390

Simplicity 7091619SM

NUT, Locking, 3/8
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0400

Simplicity 1739557AYP

ARM, Mower Lift, RH

$23.99

$

Usually ships in 2-12 days

0

0410

Simplicity 703300

PIN, Hair

$3.99

$

In Stock, Qty 20+

0

0420

Simplicity 1960103SM

WASHER, 3/8

$4.49

$

In Stock, Qty 7

0

0430

Simplicity 703827

ROD, Adjuster

$10.99

$

In Stock, Qty 11

0

0440

Simplicity 1731383ASM

CHAIN, 2 Link

$6.49

$

In Stock, only 2 left!

0

0450

Simplicity 1731382SM

TRUNNION

$34.99

$

In Stock, only 2 left!

0

0460

Simplicity 7091493YP

NUT, Jam, 5/16
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

0470

Simplicity 1931202SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1 1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

0471

Simplicity 1736108AYP

ARM, Mower Lift, LH

$66.99

$

Usually ships in 2-12 days

0

0490

Simplicity 7014334YP

SPACER, .625 OD X .388 ID X .801

$7.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1736956AYP

ARM, Elecric Height of Cut

$15.99

$

Usually ships in 2-12 days

0

0510

Simplicity 1736952AYP

ARM, Elecric Height of Cut

$29.99

$

Usually ships in 2-12 days

0

0520

Simplicity 1960757SM

NUT, Hex 1/4-20

$5.49

$

Usually ships in 2-12 days

0

0530

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0540

Simplicity 1753528YP

MOTOR, Deck Lift
(Superseded to 1761788YP)

$107.99

$

In Stock, Qty 13

0

0550

Simplicity 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0560

Simplicity 704039

PIN, Cotter

$4.49

$

In Stock, Qty 9

0

0570

Simplicity 703879

BOLT, Carriage, 5/16-18 x 1 3/4

$3.99

$

In Stock, Qty 5

0

0580

Simplicity 1739554AYP

ARM, Pitch Adjustment

$46.99

$

Usually ships in 2-12 days

0

0600

Simplicity 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1 3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

0610

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0620

Simplicity 1706644SM

SPACER, 3/8 x 3/4 x 15/16

$8.49

$

In Stock, only 1 left!

0

0630

Simplicity 1739852AYP

UPSTOP, Mower

$20.99

$

Usually ships in 2-12 days
