1695588 - Snapper 50" Mower Deck 50" Mower Deck - Clutch & Support Group Parts Diagram

50" Mower Deck

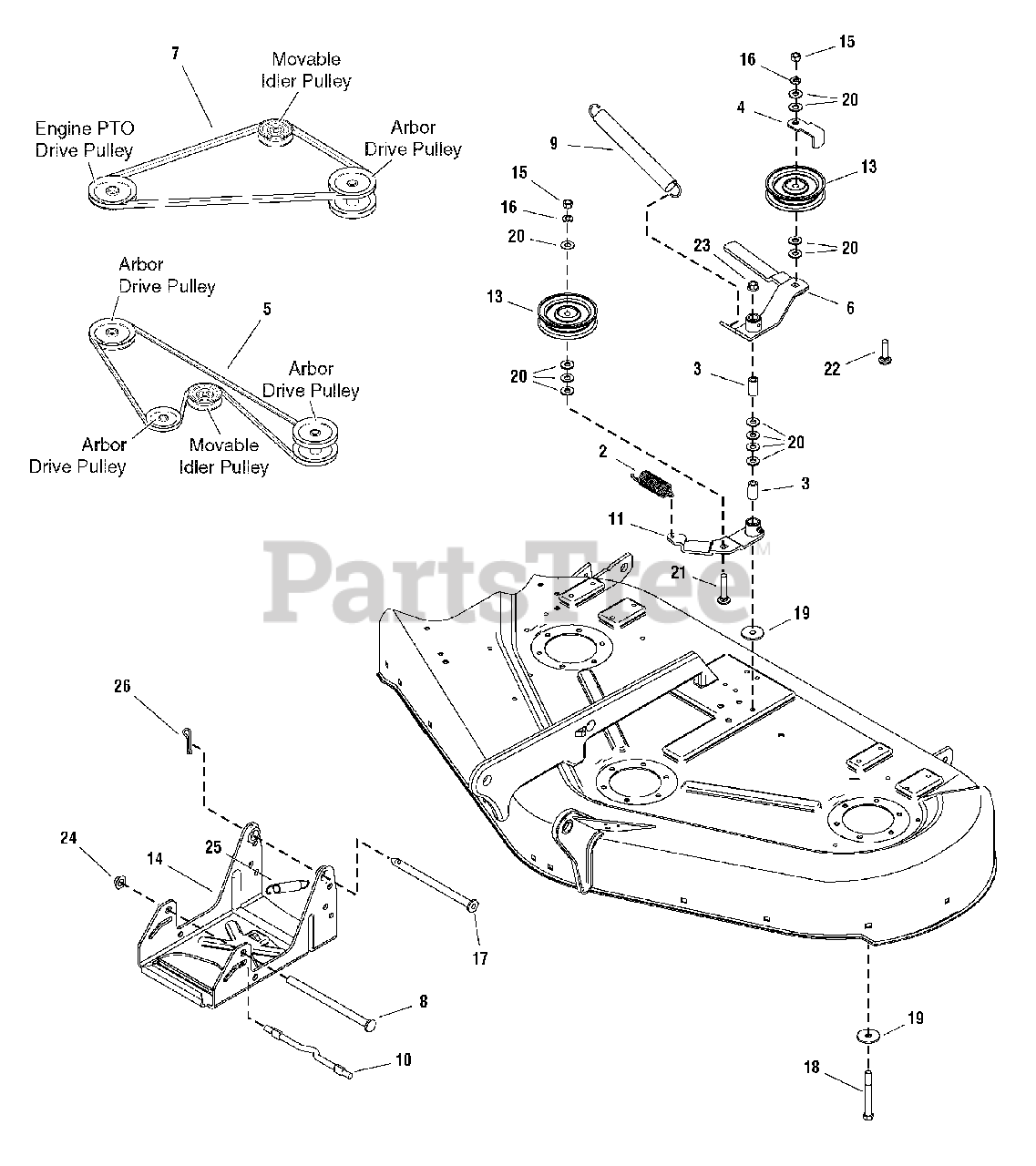

50" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

2

Snapper 1656936

SPRING, Extension
(Superseded to 1656936SM)

$9.99

$

In Stock, Qty 20+

0

3

Snapper 1674669

SPACER, Case Hard
(Superseded to 1674669SM)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 1677135A

GUARD, Belt
(Superseded to 1677135ASM)

$12.99

$

In Stock, Qty 8

0

5

Snapper 1703836

V BELT, Arbor Drive 50
(Superseded to 1703836SM)

$45.99

$

In Stock, Qty 20+

0

6

Snapper 1704658

LEVER ASSEMBLY, Idler w/Bushings & Fitting
(Superseded to 1704658SM)

$48.99

$

In Stock, only 1 left!

0

7

Snapper 1707740

V BELT, Mower Drive 50
(Superseded to 1707740SM)

$36.99

$

In Stock, Qty 20+

0

8

Snapper 1713578

ROD
(Superseded to 1713578SM)

$15.99

$

In Stock, only 1 left!

0

9

Snapper 1715435

SPRING, Extension
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

10

Snapper 1715759

ROD
(Superseded to 1715759SM)

$7.99

$

In Stock, Qty 11

0

11

Snapper 1718561

LEVER ASSEMBLY, Idler w/Bushings & Fitting
(Superseded to 1718561SM)

$50.99

$

Usually ships in 2-12 days

0

13

Snapper 1724387

PULLEY, Idler
(Superseded to 1724387SM)

$35.99

$

In Stock, Qty 20+

0

14

Snapper 1733717A

HITCH, Mower 44, 50"
(Superseded to 1738040AYP)

$289.99

$

Usually ships in 2-12 days

0

15

Snapper 1916950

NUT, Hex 3/8-16 NC-2B
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 1916965

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

17

Snapper 1734011

CAPSCREW, Hex Head 3/8-16 x 1-3/4 G8
(Superseded to 1734011SM)

$67.99

$

In Stock, only 3 left!

0

18

Snapper 1923938

CAPSCREW, Hex Head 3/8-16 x 3-1/2 G5
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

19

Snapper 1924356

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

20

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2 G5
(Superseded to 1931352SM)

$4.49

$

In Stock, only 4 left!

0

22

Snapper 1960315

CARRIAGE BOLT, 3/8-16 x 2 G5
(Superseded to 1960315SM)

$6.49

$

In Stock, only 1 left!

0

23

Snapper 1960339

NUT, Hex Flange 3/8-16 Machine Lock
(Superseded to 1922694SM)

$6.99

$

In Stock, Qty 20+

0

24

Snapper 1960519

NUT, Push
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

26

Snapper 1709189

PIN, Klik, 3/16 x 1-5/8
(Superseded to 1709189SM)

$6.99

$

Usually ships in 2-12 days

0
