1695584 - Simplicity Roticul Tiller, 5.5hp Tine Assembly Group Parts Diagram

Roticul Tiller, 5.5hp

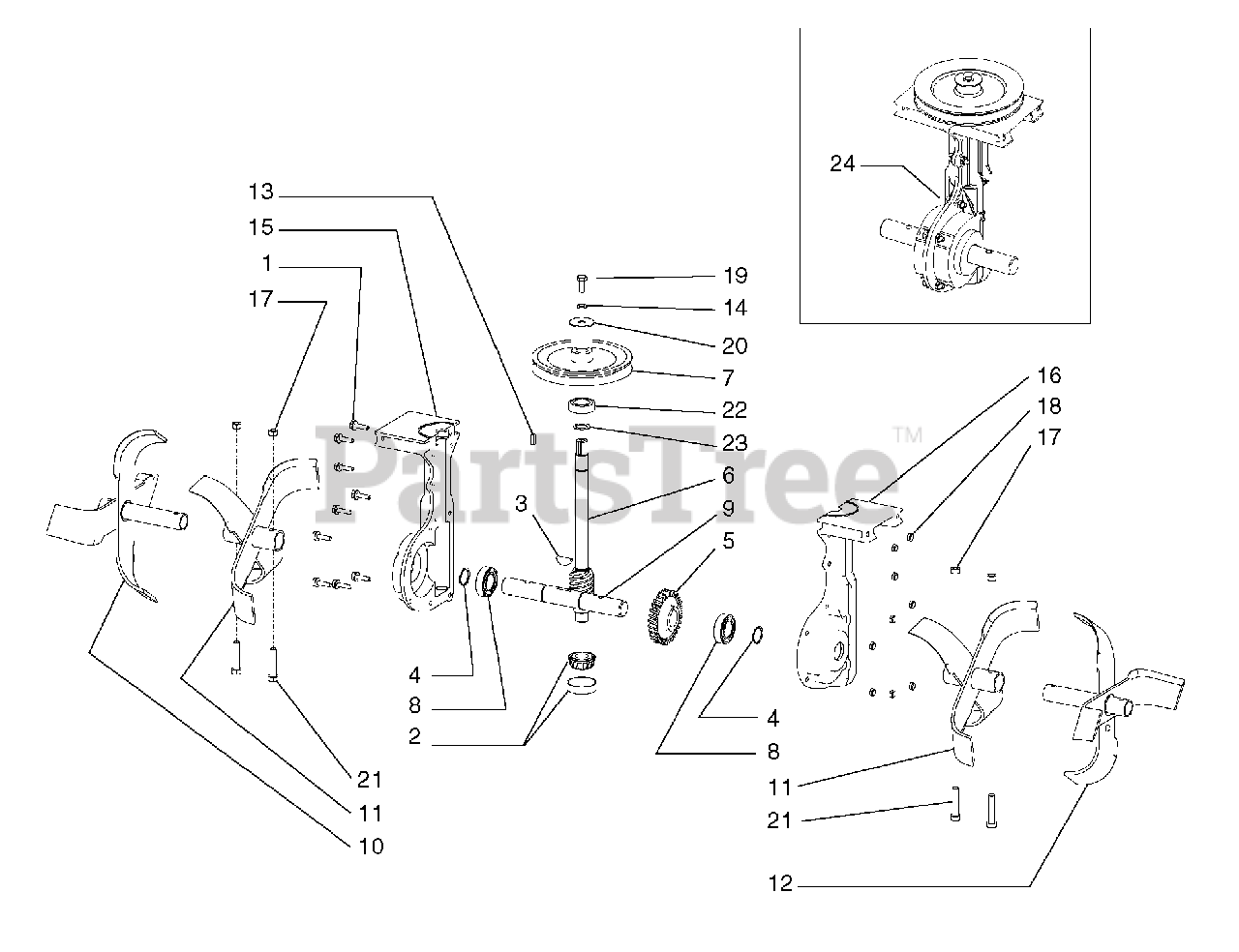

Tine Assembly Group Parts Diagram

  • Title

1

Simplicity 1716795

BOLT, Serated-Flange, Hex-Head, 1/4-20 x 7/8
(Superseded to 1716795SM)

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 1716810

BEARING, Tapered (Includes Cone & Race)
(Superseded to 1716810SM)

$56.99

$

Usually ships in 2-12 days

0

3

Simplicity 1716813

KEY, Half-Moon, 1/4 x 1
(Superseded to 1716813SM)

$5.49

$

Usually ships in 2-12 days

0

4

Simplicity 1716830

RING, Snap, External
(Superseded to 1716830SM)

$4.49

$

Usually ships in 2-12 days

0

5

* GEAR , Brass, 1" I.D.

$

$

Not available

6

* SHAFT, Drive

$

$

Not available

7

Simplicity 1738702

PULLEY, Single-Groove
(Superseded to 1738702YP)

$70.99

$

Usually ships in 2-12 days

0

8

Simplicity 1738701

BEARING, Sealed, 1" I.D. (replaces 3205 bearing & 747 spacer)
(Superseded to 1738701YP)

$43.99

$

Usually ships in 2-12 days

0

9

* SHAFT, Tine, 1"

$

$

Not available

10

Simplicity 1738706

TINE SET, Outside, Right
(Superseded to 1738706YP)

$161.99

$

Usually ships in 2-12 days

0

11

Simplicity 1738707

TINE SET, Inside
(Superseded to 1738707YP)

$136.99

$

Usually ships in 2-12 days

0

12

Simplicity 1738708

TINE SET, Outside, Left
(Superseded to 1738708YP)

$182.99

$

Usually ships in 2-12 days

0

13

Simplicity 1716771

KEY, Square, 3/16 x 5/8
(Superseded to 1716771YP)

$5.99

$

Usually ships in 2-12 days

0

14

Simplicity 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

* CASTING, Right Side

$

$

Not available

16

* CASTING, Left Side

$

$

Not available

17

Simplicity 1923362

NUT, Bi-Way Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

18

Simplicity 722393

NUT, Hex Ny-Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1921515

SCREW, Hex-Head, 5/16-24 x 3/4
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1716770

WASHER, 5/16 I.D. x 1-5/8 O.D.
(Superseded to 1716770SM)

$6.99

$

Usually ships in 2-12 days

0

21

Simplicity 1922127

BOLT, Hex-Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 1738727

BEARING, Ball, R12
(Superseded to 1738727YP)

$72.99

$

Usually ships in 2-12 days

0

23

Simplicity 1738776

RING, Snap, External, 3/4
(Superseded to 1738776YP)

$6.99

$

In Stock, only 2 left!

0

24

Simplicity 1738696

TRANSMISSION, Complete
(Superseded to 1738696YP)

$877.99

$

Usually ships in 2-12 days

0
