1695584 - Simplicity Roticul Tiller, 5.5hp Handle Bar Group Parts Diagram

Roticul Tiller, 5.5hp

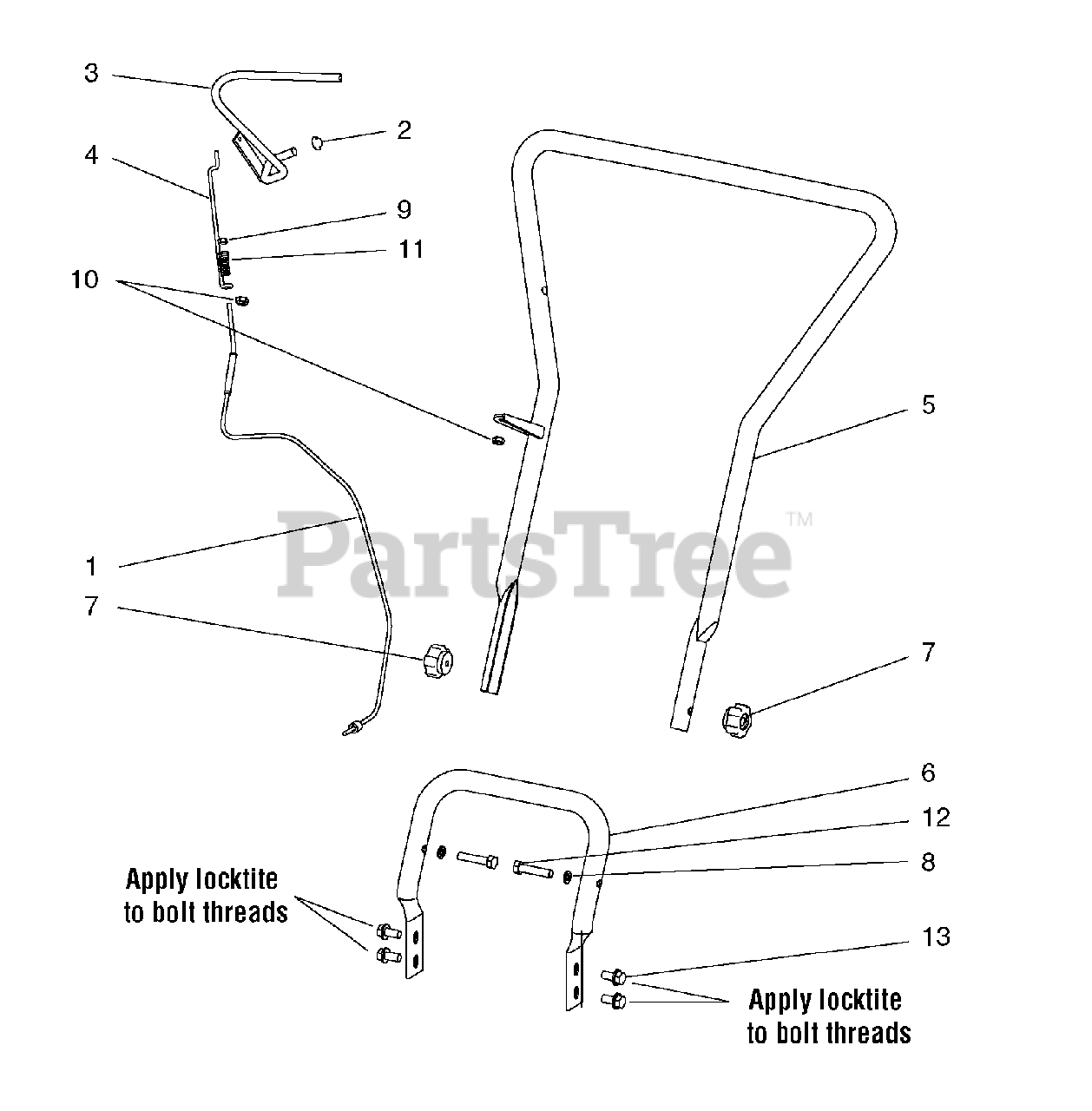

Handle Bar Group Parts Diagram

  • Title

1

Simplicity 1738714

CABLE ASSEMBLY, With Ferrel
(Superseded to 1738714YP)

$

$

Not available

2

Simplicity 1960093

NUT, Push, 3/8 Dia.
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1738715

LEVER, Drive Safety Control
(Superseded to 1738715YP)

$68.99

$

Usually ships in 2-12 days

0

4

Simplicity 1738693

LINK, 5-3/4
(Superseded to 1738693YP)

$32.99

$

Usually ships in 2-12 days

0

5

Simplicity 1738694

HANDLE, Top
(Superseded to 1738694YP)

$168.99

$

Usually ships in 2-12 days

0

6

Simplicity 1738716

HANDLE. Bottom
(Superseded to 1738716YP)

$131.99

$

Usually ships in 2-12 days

0

7

Simplicity 1733098

KNOB, 5-Star, 5/16-18
(Superseded to 1733098SM)

$9.99

$

In Stock, only 1 left!

0

8

Simplicity 7090187

WASHER, Locking, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1933896

NUT, Hex, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

10

Simplicity 2820438

NUT, Hex-Jam, 5/16-24
(Superseded to 2820438SM)

$3.49

$

In Stock, only 2 left!

0

11

Simplicity 1738712

SPRING, Compression, Forward Arm
(Superseded to 1738712YP)

$

$

Not available

12

Simplicity 1922127

BOLT, Hex-Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1934654

BOLT, Hex-Head, Serated Flange, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 3 left!

0
