1695584 - Simplicity Roticul Tiller, 5.5hp Engine Mount Group Parts Diagram

Roticul Tiller, 5.5hp

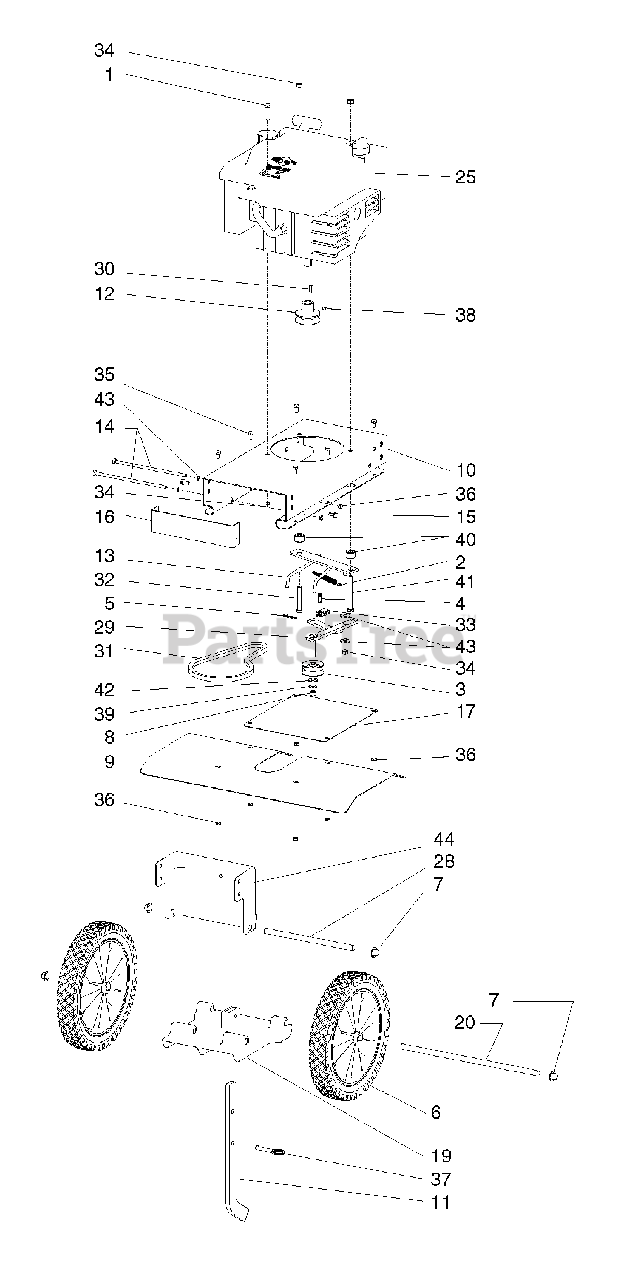

Engine Mount Group Parts Diagram

  • Title

1

Simplicity 1921977

BOLT, Hex-Head Capscrew, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

2

Simplicity 1716802

SPRING, Forward Arm
(Superseded to 1716802SM)

$

$

Not available

3

Simplicity 1716805

PULLEY, Reverse Idler
(Superseded to 1716805SM)

$42.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716702

PIN, Link
(Superseded to 1716702SM)

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1716703

PIN, Cotter
(Superseded to 1716703SM)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1738774

WHEEL & TIRE ASSEMBLY
(Superseded to 1738774YP)

$75.99

$

Usually ships in 2-12 days

0

7

Simplicity 1960519

NUT, Push, 1/2 Dia.
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1916950

NUT, Hex, Non-Locking, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1738691

SHIELD, Tine
(Superseded to 1738691YP)

$148.99

$

Usually ships in 2-12 days

0

10

Simplicity 1738692

FRAME, Engine Mount
(Superseded to 1738692YP)

$165.99

$

Usually ships in 2-12 days

0

11

Simplicity 1738705

LEVER, Depth Regulator
(Superseded to 1738705YP)

$66.99

$

Usually ships in 2-12 days

0

12

Simplicity 1738713

PULLEY, Engine, Single-Groove, 3/4 I.D.

$

$

Not available

13

Simplicity 1738718

BELT GUIDE & MOUNT
(Superseded to 1738718YP)

$80.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960283

BOLT, Hex-Head Capscrew, 1/4-20 x 7-1/2
(Superseded to 1960283SM)

$7.49

$

Usually ships in 2-12 days

0

15

Simplicity 1925592

SCREW, Sheet Metal, 1/4 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

16

Simplicity 1738719

COVER, Front Belt
(Superseded to 1738719YP)

$28.99

$

Usually ships in 2-12 days

0

17

Simplicity 1738695

SHIELD, Dirt
(Superseded to 1738695YP)

$20.99

$

Usually ships in 2-12 days

0

19

Simplicity 1738703

TAIL MOUNT, Lower
(Superseded to 1738703YP)

$79.99

$

Usually ships in 2-12 days

0

20

Simplicity 1738709

SHAFT, Wheel, 1/2
(Superseded to 1738709YP)

$43.99

$

Usually ships in 2-12 days

0

25

* ENGINE, 6.50 T.R. Briggs & Stratton

Note: (MTT10T7020124B1)

$

$

Not available

28

Simplicity 1738704

SHAFT, Tail Mount Hinge, 1/2
(Superseded to 1738704YP)

$32.99

$

Usually ships in 2-12 days

0

29

Simplicity 1738710

IDLER ARM, Forward
(Superseded to 1738710YP)

$40.99

$

Usually ships in 2-12 days

0

30

Simplicity 1716771

KEY, Square, 3/16 x 5/8
(Superseded to 1716771YP)

$5.99

$

Usually ships in 2-12 days

0

31

Simplicity 1738711

BELT, Forward
(Superseded to 37X138MA)

$20.99

$

Usually ships in 2-12 days

0

32

Simplicity 1921978

BOLT, Hex-Head, Capscrew, 5/16-18 x 2-1/4, G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

33

Simplicity 1716728

YOKE, Clevis, Zinc-Plated
(Superseded to 1716728SM)

$

$

Not available

34

Simplicity 1923362

NUT, Bi-Way Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

35

Simplicity 1921978

BOLT, Hex-Head, Capscrew, 1/4-20 x 2, G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

36

Simplicity 722393

NUT, Hex Ny-Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1738771

PIN, Detent, 5/16 x 2
(Superseded to 1738771YP)

$34.99

$

Usually ships in 2-12 days

0

38

Simplicity 1716758

SET SCREW, 1/4-20 x 1/4
(Superseded to 1716758SM)

$3.49

$

Usually ships in 2-12 days

0

39

Simplicity 720178

WASHER, Spring-Lock, 3/8
(Superseded to 018X31MA)

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 1738775

SPACER, Guide Belt
(Superseded to 1738775YP)

$24.99

$

Usually ships in 2-12 days

0

41

Simplicity 1926106

BOLT, Hex-Head, 5/16-18 x 3-1/4
(Superseded to 1926106SM)

$3.99

$

Usually ships in 2-12 days

0

42

Simplicity 1918265

WASHER, Flat, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

43

Simplicity 120380

WASHER, Spring Lock, 1/4
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

44

Simplicity 1738898

TAIL MOUNT, Upper
(Superseded to 1738898YP)

$124.99

$

Usually ships in 2-12 days

0
