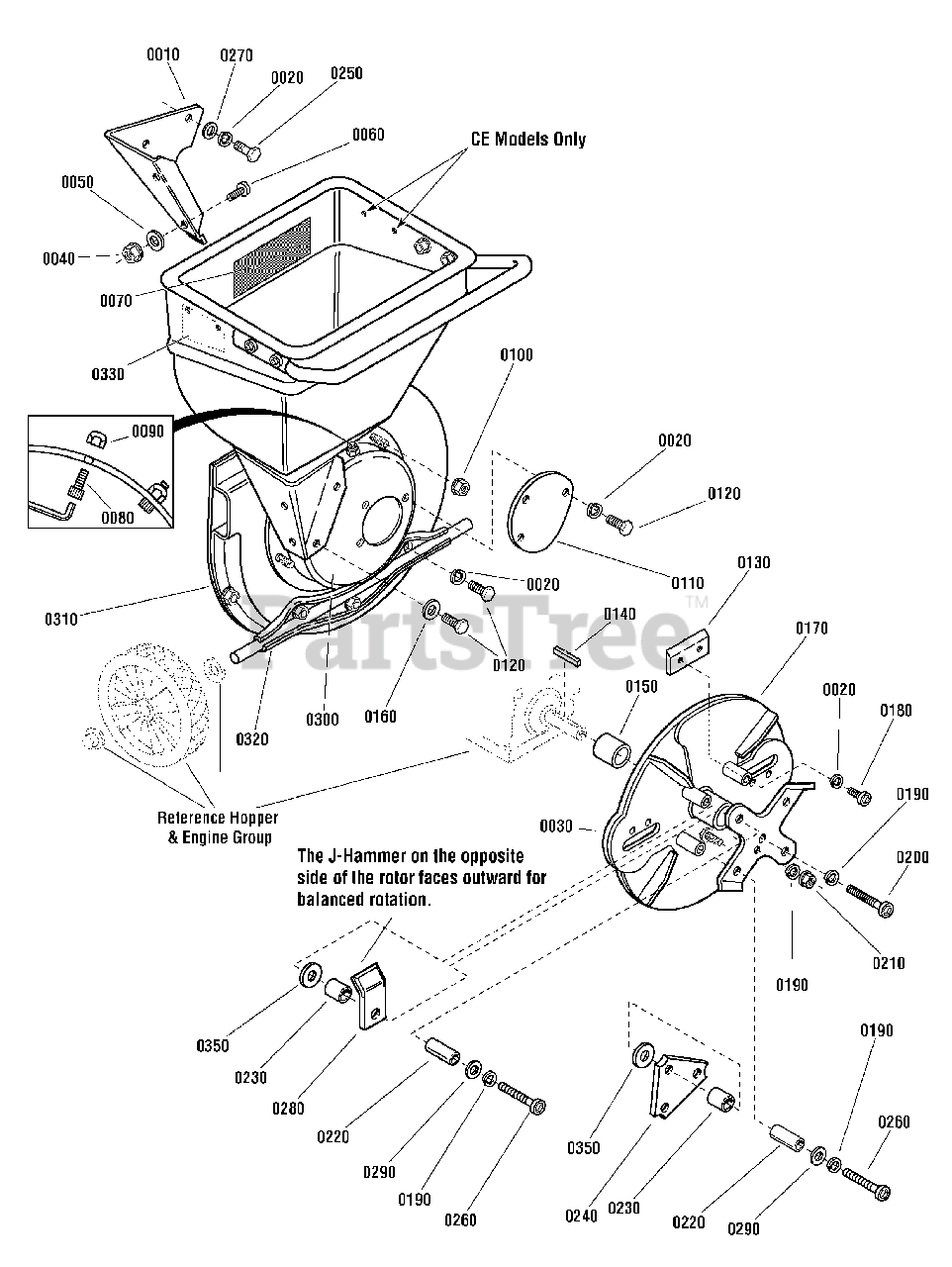

1695581 - Simplicity 3" Chipper Shredder Housing & Rotor Group Parts Diagram

3" Chipper Shredder

Housing & Rotor Group Parts Diagram

  • Title

0010

Simplicity 3525100

LINER, Hopper
(Superseded to 1729176SM)

$73.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1917356

* LOCKWASHER, Split, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0030

Simplicity 1729236

CAPSCREW, Socket Head, 3/8-16 x 5/8
(Superseded to 1729236SM)

$3.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1930642

NUT, 2-Way Locking, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

0050

Simplicity 1921319

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 1960507

BOLT, Socket Button Head, 1/4-20 x 3/4
(Superseded to 1960507SM)

$3.99

$

Usually ships in 2-12 days

0

0070

Simplicity 5004100

DECAL, Caution
(Superseded to 1729208SM)

$

$

Not available

0080

Simplicity 1733592

CAPSCREW, Socket Head, 5/16-28 x 1/2

$

$

Not available

0090

Simplicity 1919438

NUT, Nylock, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

0100

Simplicity 1931277

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110

Simplicity 3520100

COVER, Rotor Housing
(Superseded to 1729174SM)

$26.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1920787

CAPSCREW, Hex Head, 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

0130

Simplicity 3315612

CHIPPER KNIFE
(Superseded to 1729148SM)

$136.99

$

Usually ships in 2-12 days

0

0140

Simplicity 2805100

KEY 1/4 SQ. x 1-7/8
(Superseded to 2805100SM)

$5.49

$

In Stock, only 1 left!

0

0150

Simplicity 3299100

SPACER, Rotor
(Superseded to 1729132SM)

$28.99

$

In Stock, only 1 left!

0

0150

Simplicity 1713206

SPACER, Rotor
(Superseded to 1713206SM)

$7.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1919326

WASHER, Flat 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0170

Simplicity 1714177

* ROTOR, 1" Hub
(Superseded to 1714177SM)

$389.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1729215

CAPSCREW, Socket Head, 5/16-24 x 5/8
(Superseded to 1729215SM)

$3.49

$

Usually ships in 2-12 days

0

0190

Simplicity 1916965

LOCKWASHER, SPLIT 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

0200

Simplicity 1729235

CAPSCREW, Socket Head, 3/8-24 x 2
(Superseded to 1729235SM)

$4.49

$

Usually ships in 2-12 days

0

0210

Simplicity 1916950

NUT, HEX 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

0220

Simplicity 1709614

* SPACER, TUBE
(Superseded to 1709614SM)

$17.99

$

In Stock, only 3 left!

0

0230

Simplicity 1709616

* SPACER, 3/4" O.D. X 3/4" Long
(Superseded to 1709616SM)

$13.99

$

In Stock, only 2 left!

0

0230

Simplicity 1713207

* SPACER, 1" O.D. X 33/64" Long
(Superseded to 1713207SM)

$

$

Not available

0240

Simplicity 3307612

HAMMER, TRIANGULAR
(Superseded to 1729138SM)

$48.99

$

In Stock, Qty 12

0

0250

Simplicity 1921332

CAPSCREW, HEX HD 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0260

Simplicity 1960508

* CAPSCREW, Hex Socket Head With Patch, 3/8-16 X 2 GR8
(Superseded to 1960508SM)

$18.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1924874

WASHER, Flat, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0280

Simplicity 3307100

J HAMMER
(Superseded to 1729137SM)

$50.99

$

In Stock, Qty 5

0

0290

Simplicity 1924940

* WASHER, Flat, 7/8" O.D.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0300

Simplicity 3521100

HOUSING, Rotor
(Superseded to 1729175SM)

$153.99

$

Usually ships in 2-12 days

0

0310

Simplicity 3501100

HOUSING, Fan
(Superseded to 1729160SM)

$313.99

$

Usually ships in 2-12 days

0

0320

Simplicity 3505100

AXLE ASSEMBLY
(Superseded to 3505100YP)

$341.99

$

Usually ships in 2-12 days

0

0330

Simplicity 5001612

DECAL, Danger
(Superseded to 1729207SM)

$17.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1676435

WASHER, Plain, 1/2 x 1-1/4 x 3/16
(Superseded to 1676435SM)

$8.49

$

Usually ships in 2-12 days

0

0400

Simplicity 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

Note: (Not Shown)

$4.99

$

In Stock, only 1 left!

0

0410

Simplicity 1714177

ROTOR ASSEMBLY
(Superseded to 1714177SM)

Note: (Not Shown)

$389.99

$

Usually ships in 2-12 days

0

0420

Simplicity 1685698

* ROTOR KIT
(Superseded to 1685698YP)

Note: (Not Shown)

$598.99

$

Usually ships in 2-12 days

0

0430

Simplicity 1660071

ROTOR HAMMERS & KNIVES ASSEMBLY, 8.5 & 8.25 Torque Rated

Note: (Not Shown)

$

$

Not available

0440

Simplicity 1660092

ROTOR HAMMERS & KNIVES ASSEMBLY, 14.5 Torque Rated

Note: (Not Shown)

$

$

Not available
