1695575 - Brute 27" Snow Thrower, 11.5 Gross TP (2008) Handle & Cover Panel Assembly Parts Diagram

27" Snow Thrower, 11.5 Gross TP

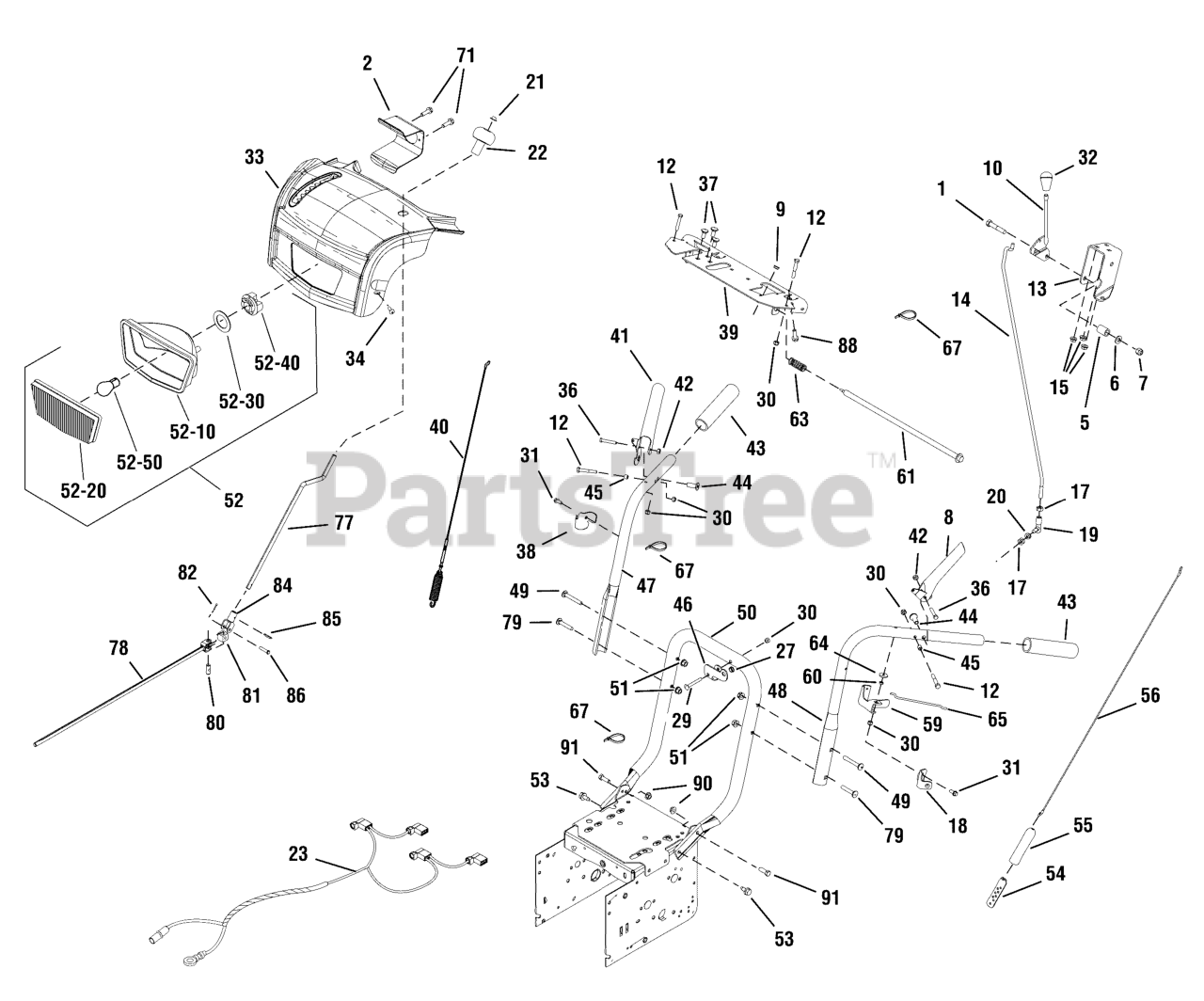

Handle & Cover Panel Assembly Parts Diagram

  • Title

1

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, GR5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

2

Murray 1736305AYP

BRACKET, Light Mount

$31.99

$

Usually ships in 2-12 days

0

5

Murray 50786MA

SPRING, 3/4"

$5.49

$

Usually ships in 2-12 days

0

6

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

7

Murray 1919439SM

NUT, Hex Lock, ESNA LIGHT, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

8

Murray 1736324YP

LEVER-CLUTCH LH PLASTISOL DIP

$31.99

$

Usually ships in 2-12 days

0

9

Murray 1667588SM

BUSHING, Nylon, 3/8 ID x 7/16 OD x 2"

$5.99

$

In Stock, Qty 20+

0

10

Murray 1733614SM

ROD & BRACKET ASSEMBLY, Speed

$26.99

$

Usually ships in 2-12 days

0

12

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, GR5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

13

Murray 1733045ASM

BRACKET, Trac & Deflector Control

$18.99

$

Usually ships in 2-12 days

0

14

Murray 1734354SM

ROD, 25-3/8"
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

15

Murray 1931277SM

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Murray 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

18

Murray 1736147YP

BRACKET, Mounting, Panel, Left

$8.49

$

Usually ships in 2-12 days

0

19

Murray 50782MA

BALL JOINT

$21.99

$

In Stock, Qty 6

0

20

Murray 1917356SM

WASHER, Lock Helical Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Murray 1960093SM

NUT, Push Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

22

Murray 1714084SM

KNOB, Spinner

$12.99

$

In Stock, only 1 left!

0

23

Murray 1737019YP

WIRING HARNESS, Headlights

$17.99

$

Usually ships in 2-12 days

0

27

Murray 1501874MA

BUSHING, Chute Crank

$4.99

$

In Stock, only 1 left!

0

29

Murray 1931323SM

BOLT, Carriage, Short Neck, 1/4-20 x 2, GR5

$4.49

$

Usually ships in 2-12 days

0

30

Murray 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

31

Murray 1927429SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

32

Murray 1732470SM

KNOB, Hole, .357 Diameter 1.14 Diameter, Sphere Softer

$19.99

$

In Stock, Qty 6

0

33

Murray 1736346YP

COVER ASSEMBLY, Panel

$

$

Not available

34

Murray 1960556SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

36

Murray 1922837SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, GR 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

37

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

38

Murray 1736354YP

BRACKET, Mounting, Panel, Right

$8.99

$

Usually ships in 2-12 days

0

39

Murray 1735628AYP

SUPPORT-DASH PANEL

$38.99

$

Usually ships in 2-12 days

0

40

Murray 1732471SM

CABLE & SPRING ASSEMBLY, Auger Drive, RH

$

$

Not available

41

Murray 1736323YP

LEVER, Clutch, RH

$20.99

$

Usually ships in 2-12 days

0

42

Murray 1923358SM

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

43

Murray 1726317SM

HAND GRIP

$8.49

$

In Stock, only 1 left!

0

44

Murray 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

45

Murray 1678392SM

SPACER, 1/4 ID x 3/8 OD x 5/16"
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

46

Murray 1735589YP

BRACKET, Rod Support

$9.49

$

Usually ships in 2-12 days

0

47

Murray 1734587ASM

HANDLE, Upper, RH

$51.99

$

Usually ships in 2-12 days

0

48

Murray 1734586ASM

HANDLE, Upper, LH

$55.99

$

In Stock, only 1 left!

0

49

Murray 1960723SM

BOLT, Carriage, 5/16-18 x 2-1/4, GR5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

50

Murray 1736301AYP

HANDLE, Lower Tubular

$96.99

$

Usually ships in 2-12 days

0

51

Murray 1960686SM

NUT, Hex Flange Nylock, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

52

Murray 1736208YP

HEADLIGHT ASSEMBLY

$42.99

$

Usually ships in 2-12 days

0

52-10

DEFLECTOR, Headlight

Note: (Not a serviceable part)

$

$

Not available

52-20

LENS, Headlight

Note: (Not a serviceable part)

$

$

Not available

52-30

Murray 1736179YP

GASKET, Light
(Superseded to 1736180YP)

$10.99

$

Usually ships in 2-12 days

0

52-40

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

$10.99

$

Usually ships in 2-12 days

0

52-50

BULB, Headlight, 12V 15W, 1156

Note: (Not a serviceable part)

$

$

Not available

53

Murray 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

54

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

55

Murray 308146MA

BOOT, Spring End Cover

$6.49

$

Usually ships in 2-12 days

0

56

Murray 1502113MA

CABLE, Front Drive

$22.99

$

In Stock, Qty 20+

0

59

Murray 1733505ASM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

60

Murray 1733095SM

SPACER, 1/4 ID x 3/8 OD x 1/8"

$4.49

$

Usually ships in 2-12 days

0

61

Murray 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

63

Murray 2108360SM

SPRING, Compression, 2-1/4"

$5.49

$

In Stock, only 1 left!

0

64

Murray 1960353SM

WASHER, 1/4 x 27/32 OD
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

65

Murray 1736360YP

ROD, Hold Down, 5-5/8"

$11.99

$

Usually ships in 2-12 days

0

67

Murray 1701011SM

TIE, Self Locking, 15" Long

$5.49

$

In Stock, only 2 left!

0

71

Murray 316042MA

CAPSCREW, Hex Washer Head, #10-HL x 5/8

$4.49

$

Usually ships in 2-12 days

0

77

Murray 1735661YP

CRANK, Chute Handle

$14.99

$

Usually ships in 2-12 days

0

78

Murray 1735660YP

ROD AND YOKE
(Superseded to 703173)

$27.99

$

Usually ships in 2-12 days

0

79

Murray 1931338SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, GR 5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

80

Murray 578060MA

PIN, Universal Joint, 3/8 x 1

$7.49

$

Usually ships in 2-12 days

0

81

Murray 578063MA

BLOCK, Universal Pivot

$5.49

$

In Stock, only 2 left!

0

82

Murray 579493MA

PIN, Cotter

$4.49

$

In Stock, only 1 left!

0

84

Murray 1733611SM

YOKE AND TUBE, Chute

$35.99

$

In Stock, only 1 left!

0

85

Murray 1501293MA

PIN, Hair, Chute Gear

$4.99

$

Usually ships in 2-12 days

0

86

Murray 578309MA

PIN, Clevis, 1/4 x 1.09

$5.49

$

In Stock, Qty 6

0

88

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

90

Murray 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

91

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0
