1695568 - Brute 33" Snow Thrower, 16.5 Gross TP (2008) Auger Housing (1736665) Parts Diagram

33" Snow Thrower, 16.5 Gross TP

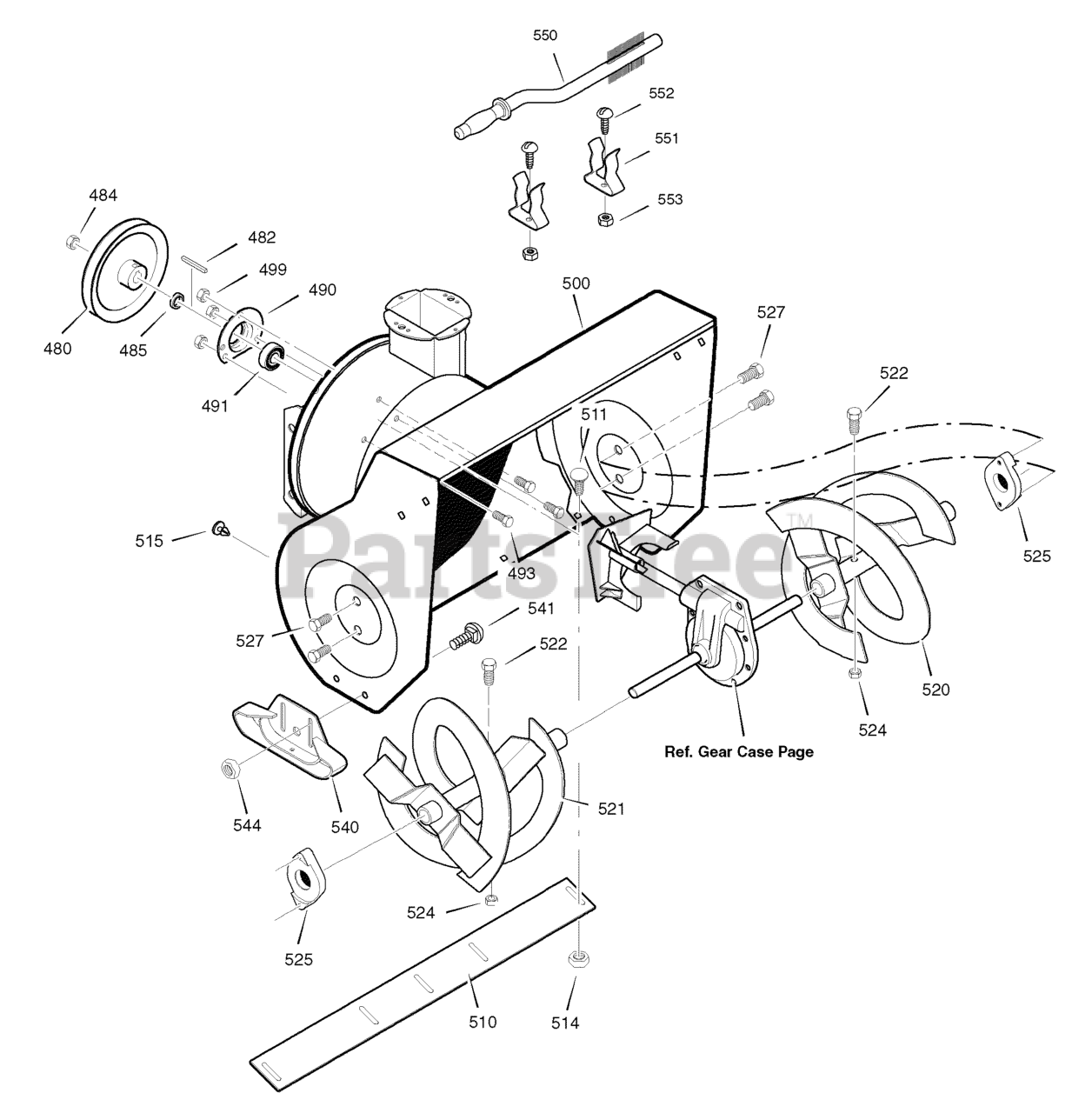

Auger Housing (1736665) Parts Diagram

  • Title

480

Murray 583146MA

PULLEY, 4L 8.40 OD

$

$

Not available

482

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 12

0

484

Murray 15X112MA

NUT, 1/2-20

$5.49

$

In Stock, only 2 left!

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

490

Murray 582957YZMA

RETAINER, BALL BEARING
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1705897SM

BEARING, BALL

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X45MA

BOLT, HEX 5/16-18 X 0.62
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

499

Murray 710026MA

NUT, 5/16-18 HEXWDFLLK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

500

Murray 1740649ZYP

HOUSING, ASSEMBLY

$712.99

$

Usually ships in 2-12 days

0

510

Murray 1740747TMA

BLADE, SCRAPER

$43.99

$

Usually ships in 2-12 days

0

511

Murray 340720MA

BOLT, 5/16-18 X 0.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

514

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

515

Murray 760040MA

PLUG PANEL, BLACK

$4.49

$

Usually ships in 2-12 days

0

520

Murray 1740742AYP

AUGER, ASSEMBLY, LH

$170.99

$

Usually ships in 2-12 days

0

521

Murray 1740743AYP

AUGER, ASSEMBLY, RH

$170.99

$

Usually ships in 2-12 days

0

522

Murray 578647MA

SCREW, 1/4-20 X 1.75
(Superseded to 703335)

$6.49

$

Usually ships in 2-12 days

0

524

Murray 71391MA

NUT, 5/16

$4.49

$

Usually ships in 2-12 days

0

525

Murray 53757MA

BEARING, FLANGE

$9.99

$

In Stock, only 2 left!

0

527

Murray 25X021MA

SCREW, 5/16-18 x 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

540

Murray 1740913TMA

SKID, HEIGHT ADJUST
(Superseded to 1737985AYP)

$

$

Not available

541

Murray 340720MA

BOLT, 5/16-18 X 0.5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

544

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

550

Murray 1501576MA

BRUSH, CLEANOUT
(Superseded to 1736094YP)

$34.99

$

In Stock, Qty 7

0

551

Murray 1736620YP

CLIP, RETAINER

$6.49

$

In Stock, only 3 left!

0

552

Murray 1960569SM

SCREW
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

553

Murray 15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

--

Murray 1501216MA

KIT, SHEAR BOLT

$4.99

$

In Stock, Qty 20+

0
