1695566 - Brute 27" Snow Thrower, 11.5 Gross TP (2008) Wheels and Tires Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

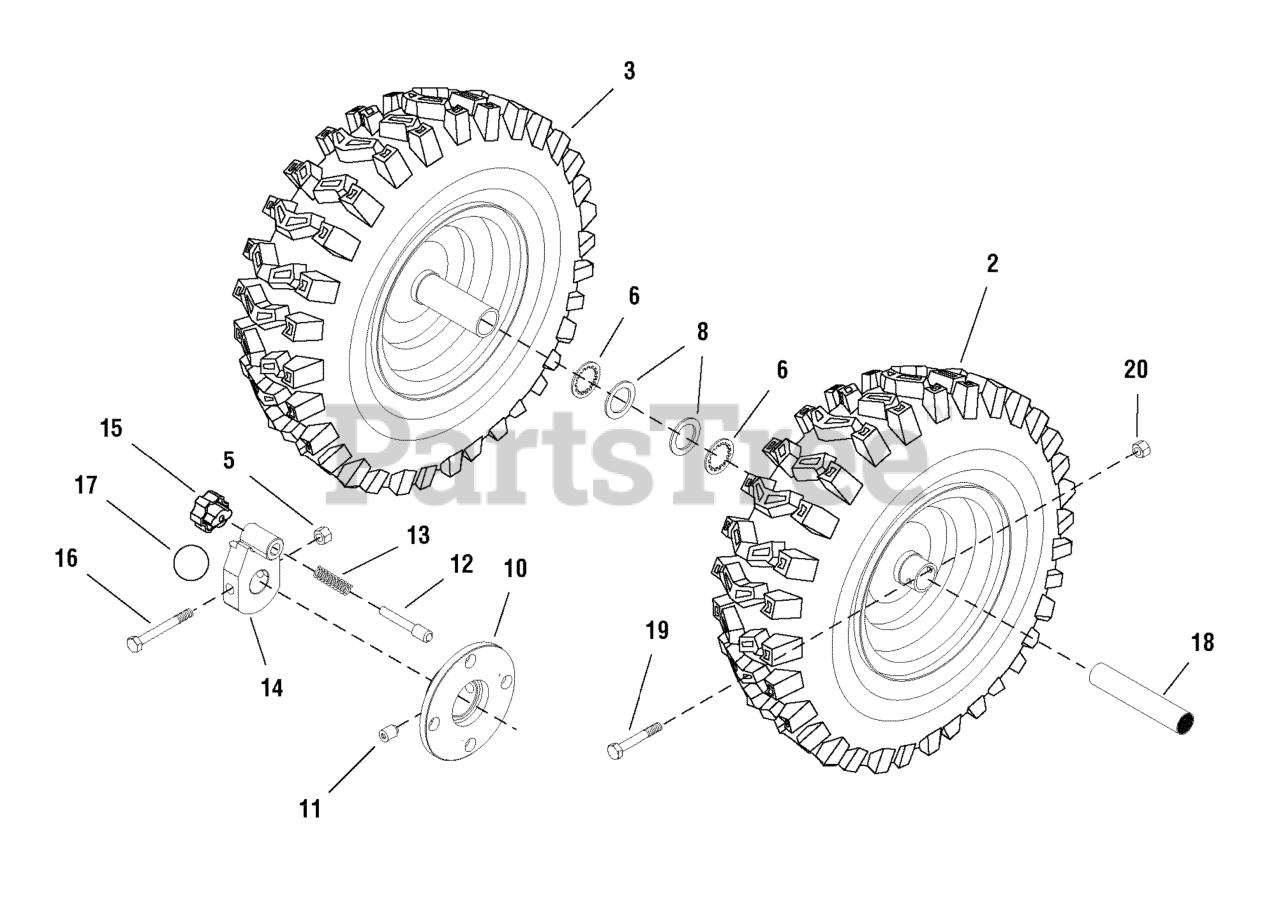

Wheels and Tires Group Parts Diagram

  • Title

2

Murray 1736622YP

WHEEL & TIRE ASSEMBLY, L.H. SNOW XTRAC 16 x 4.8-8

$182.99

$

Usually ships in 2-12 days

0

3

Murray 1736621YP

WHEEL & TIRE ASSEMBLY, R.H. SNOW XTRAC 16 x 4.8-8

$173.99

$

Usually ships in 2-12 days

0

5

Murray 1920397SM

NUT, Hex Lock ESNA Light, 1/4-20 NC3B Black
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 1657528SM

RETAINING RING, Extertal, #75 0.750 Self Lock

$4.49

$

In Stock, Qty 20+

0

8

Murray 712120MA

WASHER, Flat .765 x 1.12 x .06 YZ

$4.99

$

In Stock, Qty 20+

0

10

Murray 1501032EMA

DISC, Wheel Lock

$32.99

$

Usually ships in 2-12 days

0

11

Murray 2001066MA

SCREW, 3/8-16 x 1/2 Hex-18

$5.49

$

In Stock, Qty 20+

0

12

Murray 1501856YZMA

PIN, Wheel Lock 1/4-20 0.7

$15.99

$

In Stock, Qty 14

0

13

Murray 164X34MA

SPRING, Compression

$5.99

$

In Stock, Qty 19

0

14

Murray 1501857MA

HUB, Wheel Lock Centered

$34.99

$

In Stock, Qty 14

0

15

Murray 1501855MA

KNOB, Wheel Lock

$13.99

$

In Stock, Qty 16

0

16

Murray 73839MA

CAPSCREW, 1/4-20 x 2-1/4 Hex Head GR

$5.49

$

In Stock, only 4 left!

0

17

Murray 48X5600MA

DECAL, WHEEL LOCK

$14.99

$

Usually ships in 2-12 days

0

18

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

19

Murray 577015MA

BOLT, .25-20 X 1.75

$4.99

$

In Stock, Qty 5

0

20

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
