1695565 (525/21) - Brute 21" Snow Thrower, 5.25 Gross TP (2008) Handle Assembly Parts Diagram

21" Snow Thrower, 5.25 Gross TP

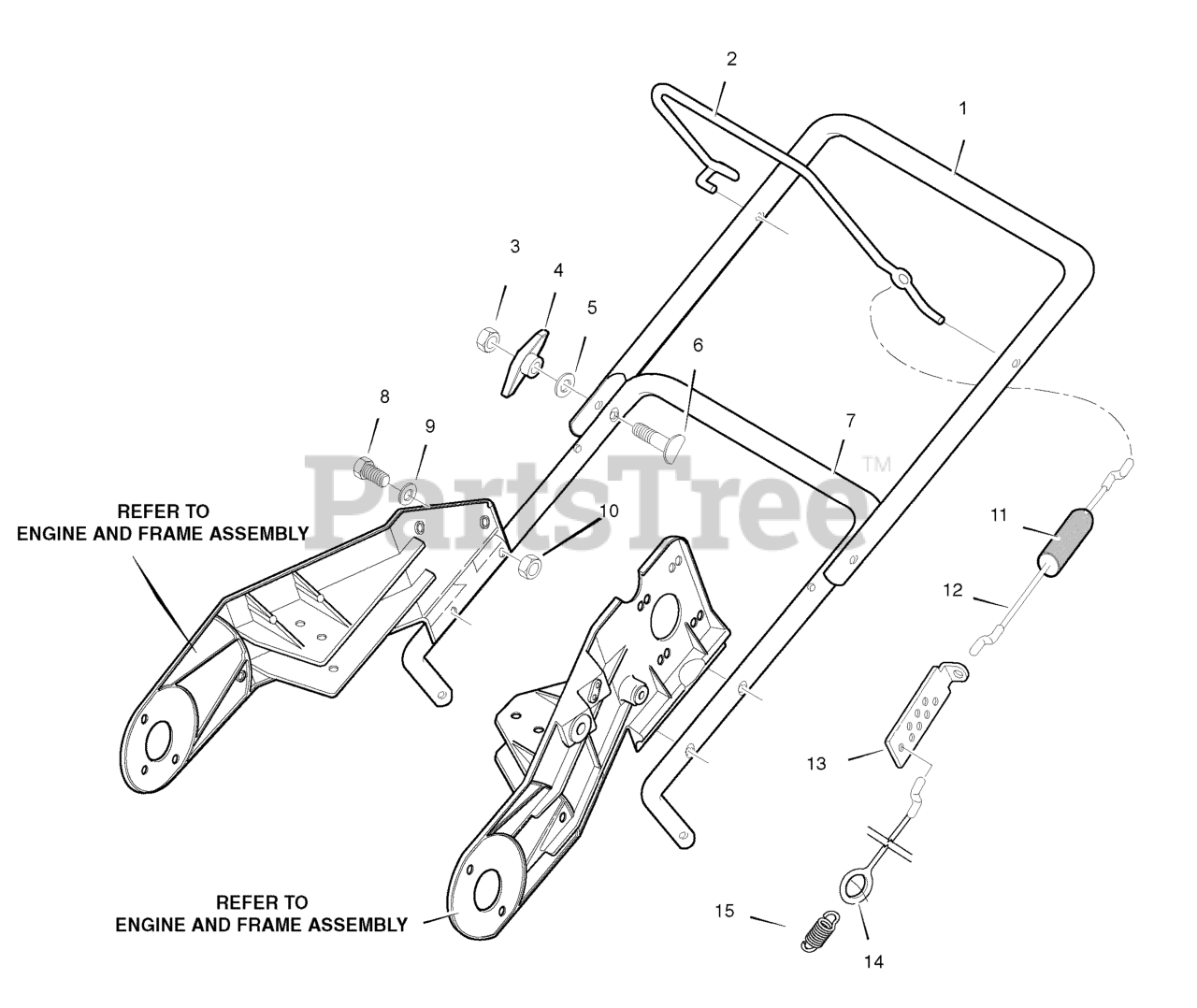

Handle Assembly Parts Diagram

  • Title

1

Murray 333919E701MA

HANDLE, UPPER
(Superseded to 1742109HYP)

$87.99

$

Usually ships in 2-12 days

0

2

Murray 313308E701MA

BAIL, CONTROL
(Superseded to 1742110HYP)

$22.99

$

Usually ships in 2-12 days

0

3

Murray 71037MA

NUT, 5/16-18 HEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

4

Murray 1501260MA

KNOB, WING

$7.99

$

In Stock, Qty 8

0

5

Murray 311936MA

WASHER, FORM

$7.49

$

Usually ships in 2-12 days

0

6

Murray 337584MA

BOLT, 5/16-18 X 2.00

$4.99

$

Usually ships in 2-12 days

0

7

Murray 333909E701MA

HANDLE, LOWER

$56.99

$

Usually ships in 2-12 days

0

8

Murray 313674MA

SCREW, 1/4-20 X 1.25

$3.99

$

Usually ships in 2-12 days

0

9

Murray 71067MA

WASHER, FLAT

$4.49

$

In Stock, only 1 left!

0

10

Murray 73826MA

NUT, 1/4-20 HEX
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

11

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

In Stock, only 2 left!

0

12

Murray 313449MA

CABLE, UPPER CONTROL
(Superseded to 1501122MA)

$8.49

$

In Stock, Qty 18

0

13

Murray 313441MA

BRACKET, CABLE ADJUST

$

$

Not available

14

Murray 313448MA

CABLE, LOWER CONTROL

$10.99

$

Usually ships in 2-12 days

0

15

Murray 313471MA

SPRING, EXTENSION

$4.99

$

In Stock, only 1 left!

0
