1695457 - Simplicity Power Source for MB Broom Handles & Controls Group Parts Diagram

Power Source for MB Broom

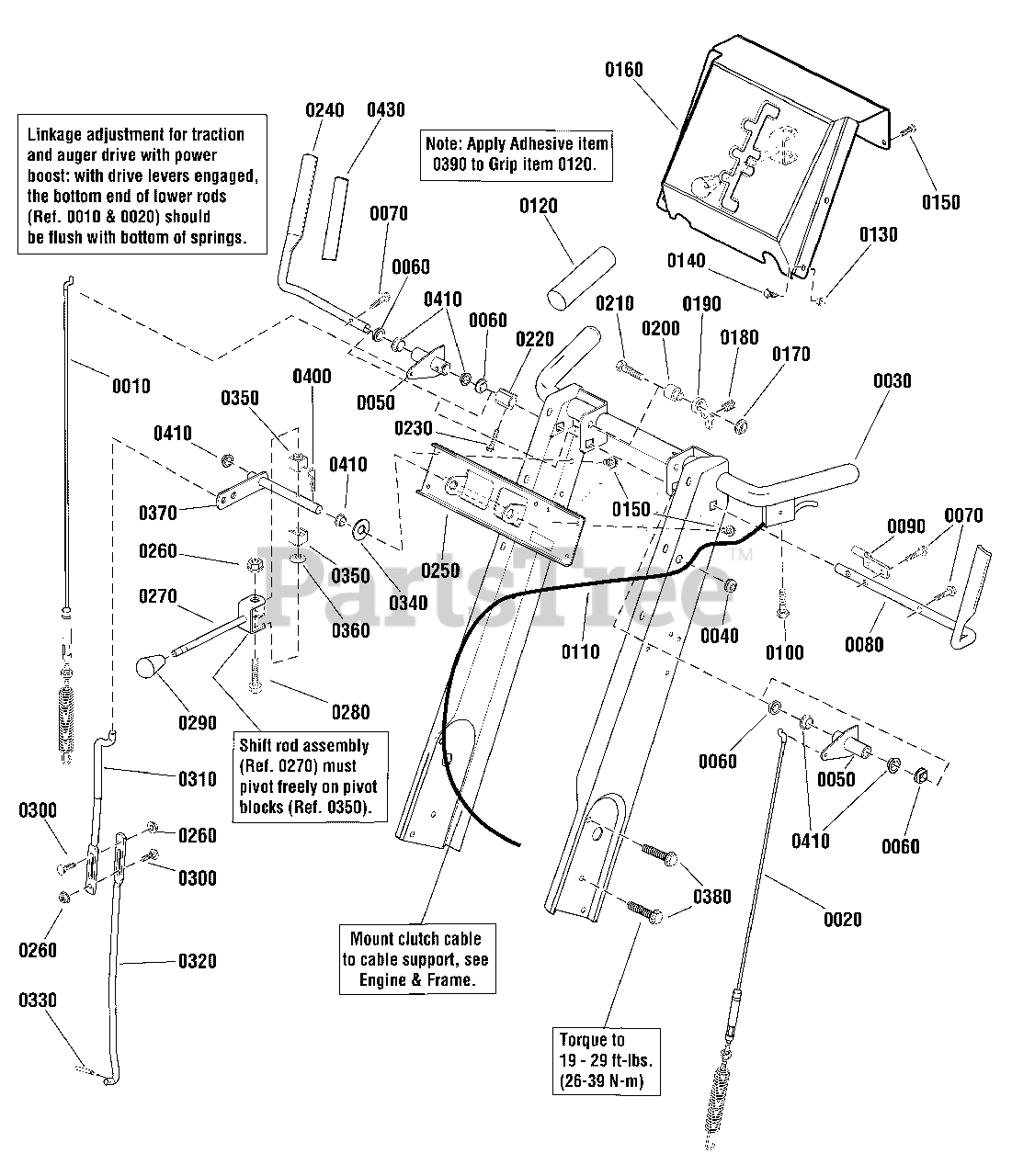

Handles & Controls Group Parts Diagram

  • Title

0010

Simplicity 1735148SM

CABLE & SPRING ASSEMBLY, RH

$23.99

$

In Stock, only 1 left!

0

0020

Simplicity 1728115SM

CABLE & SPRING ASSEMBLY, LH

$17.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1729855JSM

HANDLE ASSEMBLY

$253.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1664022SM

GROMMET, 1/2

$4.49

$

Usually ships in 2-12 days

0

0050

Simplicity 1725205ASM

CLUTCH LEVER ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1732732SM

BUSHING

$3.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1960471SM

SCREW, Hex Washerhead 12-24 x 1

$3.49

$

In Stock, only 1 left!

0

0080

Simplicity 1727127SM

HANDLE, Clutch LH

$45.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1677453SM

ROD, Control

$8.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1725702SM

SCREW, Pan head

$5.49

$

Usually ships in 2-12 days

0

0110

Simplicity 1718791SM

HANDLE & CABLE ASSEMBLY

$70.99

$

In Stock, only 3 left!

0

0120

Simplicity 1726317SM

GRIP, Black

$8.49

$

In Stock, only 1 left!

0

0130

Simplicity 1930641SM

NUT, Hex Flange 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0140

Simplicity 1935450SM

CAPSCREW, Hex Flange 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1925592SM

SCREW, Hex Washer Head 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0160

Simplicity 1733919JSM

DASHBOARD

$69.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1960686SM

NUT, Hex Flange 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0180

Simplicity 1701342SM

SPRING, Compression
(Superseded to 1750475YP)

$4.49

$

Usually ships in 2-12 days

0

0190

Simplicity 1705898SM

LATCH, Control
(Superseded to 703214)

$9.49

$

Usually ships in 2-12 days

0

0200

Simplicity 1678579SM

SPACER, 21/64
(Superseded to 703049)

$6.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1933689SM

SCREW, Hex Whiz Lock 5/16-18 1 1/2

$4.49

$

Usually ships in 2-12 days

0

0220

Simplicity 1705899SM

GUIDE, Control
(Superseded to 703213)

$8.49

$

In Stock, only 2 left!

0

0230

Simplicity 1928732SM

SCREW, Hex Washer Head #10-24 x 1
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

0240

Simplicity 1727128SM

HANDLE, Clutch RH

$40.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1723935SM

BRACKET, Shift Control
(Superseded to 1723935BMYP)

$15.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1960685SM

NUT, Hex 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0270

Simplicity 1668523SM

SHIFT ROD & CLEVIS ASSEMBLY
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1960705SM

SCREW, Hex Whiz Lock 1/4-20 x 2 1/4

$2.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1732470SM

KNOB

$19.99

$

In Stock, Qty 6

0

0300

Simplicity 1931317SM

BOLT, Carriage 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0310

Simplicity 1734388SM

ROD, 11.5 Long

$45.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1666255SM

ROD, 15.32 Long

$51.99

$

In Stock, only 4 left!

0

0330

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0340

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0350

Simplicity 1668524SM

BLOCK, Pivot
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1668681SM

WASHER, Curved

$4.49

$

Usually ships in 2-12 days

0

0370

Simplicity 1734696SM

ROD & ARM ASSEMBLY
(Superseded to 703052)

$39.99

$

Usually ships in 2-12 days

0

0380

Simplicity 703354

SCREW, Serrated Washer Head 5/16-18 x 3/4

$5.49

$

In Stock, Qty 10

0

0390

ADHESIVE, Locktite

Note: (Referenced, Not Shown)

$

$

Not available

0400

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0410

Simplicity 1668185SM

BUSHING, 1/2 - 3/4 x 1/4

$5.49

$

In Stock, only 1 left!

0

0430

Simplicity 1668608SM

GRIP, Handle Clutch

$

$

Not available
