1695446 - Simplicity Zero-Turn Twin Grass Catcher for 33" Mower 33" ZT Twin Catcher Parts Diagram

Zero-Turn Twin Grass Catcher for 33" Mower

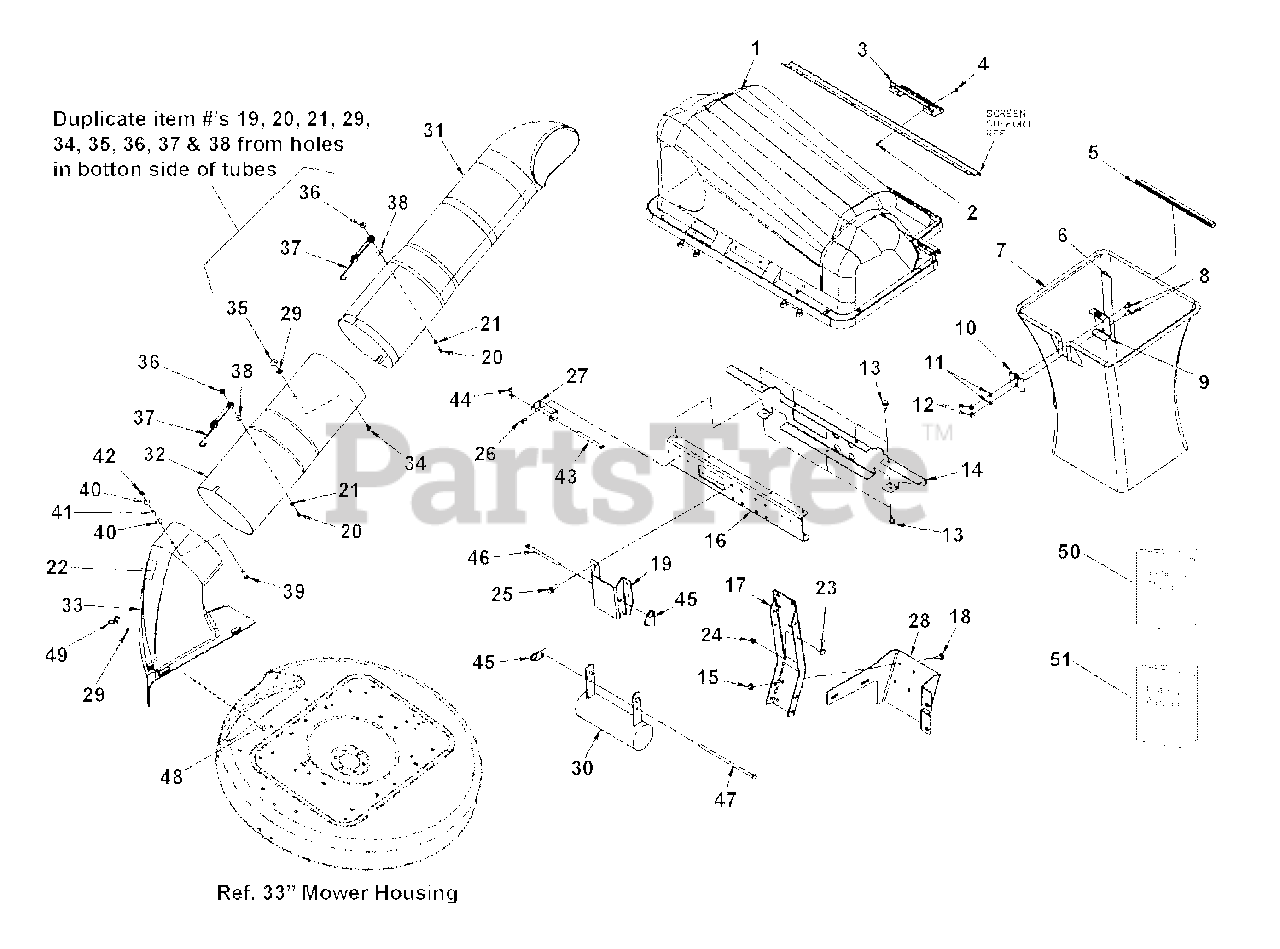

33" ZT Twin Catcher Parts Diagram

  • Title

1

Simplicity 1735393

COVER ASSY, Twin Catcher
(Superseded to 1735393YP)

$421.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960404

SCREW, Truss HD Phillips #10-24X0.750
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 720537

HANDLE, Plastic
(Superseded to 054537MA)

$18.99

$

In Stock, only 3 left!

0

4

Simplicity 1933896

NUT, Hex Lock 10-24 W/NYL Insert NC3B BLK
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 1675707

CLIP, Tube Grass Bag
(Superseded to 1675707SM)

$6.49

$

In Stock, only 3 left!

0

6

Simplicity 1703764

BAG, Grass, 15.4X16X22.5 White Poly Cloth
(Superseded to 5023290)

$

$

Not available

7

Simplicity 1733491

HOOP, Twin Catcher .500DIA Yellow
(Superseded to 1733491SM)

$146.99

$

In Stock, only 2 left!

0

8

Simplicity 1931333

BOLT, RD HD SH SQ NK 5/16-18X0.750 G5 BLK
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

9

Simplicity 1703807A

HANGER, Grass Bag Hoop 10GA Twin - Black
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 1 left!

0

10

Simplicity 1672023A

CLAMP, 10GA For (2) .500DIA Rods - Black
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917356

WASHER, Spring Lock, .312 BLK
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372

NUT, Hex 5/16-18 NC-2B BLK
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18X0.750 BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1733613A

BRACKET, Tab Cross Sup Twin - Black
(Superseded to 1733613ASM)

$96.99

$

Usually ships in 2-12 days

0

15

Simplicity 1928352

NUT, Hex Flange 3/8-16 Whiz Lock - BLK
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 1734228A

CHANNEL, Cross Support - Black
(Superseded to 1734228ASM)

$70.99

$

Usually ships in 2-12 days

0

17

Simplicity 1734223A

SUPPORT, Upright - Black
(Superseded to 1734223ASM)

$111.99

$

Usually ships in 2-12 days

0

18

Simplicity 1933260

SCREW, Hex WZ Lock Flange 3/8-16X0.750 BLK
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

19

Simplicity 1733982A

BRACKET, Bagger Mount ZT 2007 - Black
(Superseded to 1733982ASM)

$37.99

$

Usually ships in 2-12 days

0

20

Simplicity 7036415

SCREW, Pan Head Machine, CR, #10C X5/8 GR5 YZ
(Superseded to 7036415SM)

$3.99

$

In Stock, only 2 left!

0

21

Simplicity 7091552

WASHER, .219X.5X.049 BZ
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 14

0

22

Simplicity 7046720

DECAL, Chute Deflector
(Superseded to 7046720SM)

$7.49

$

In Stock, only 1 left!

0

23

Simplicity 1732426

BOLT, Shoulder 5/16-18 0.56LG .49SH .25L YEL
(Superseded to 1732426SM)

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 1935048

NUT, Hex Flange 5/16-18 Two-Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1927187

SCREW, Hex Washer Head Taptite 3/8-16X1.000 BLK
(Superseded to 1927187SM)

$4.49

$

In Stock, only 4 left!

0

26

Simplicity 1925003

SCREW, Hex Washer Head Taptite 1/4-20X0.500 BLK
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

27

Simplicity 1733504A

PIVOT, Hinge
(Superseded to 1733504ASM)

$22.99

$

Usually ships in 2-12 days

0

28

Simplicity 1737844A

HITCH, Bagger ZT - Black
(Superseded to 1737844AYP)

$76.99

$

Usually ships in 2-12 days

0

29

Simplicity 7090188

WASHER, 5/16" YZ
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

30

Simplicity 1734221A

WELD, Weight Assembly
(Superseded to 1734221ASM)

$376.99

$

Usually ships in 2-12 days

0

31

Simplicity 7100618

TUBE, Upper, Twin Bagger, 38" & 42" RZ
(Superseded to 7100618SM)

$205.99

$

Usually ships in 2-12 days

0

32

Simplicity 7100701

TUBE, Lower, Twin Bagger, 44"/50" RZT
(Superseded to 7100701SM)

$190.99

$

Usually ships in 2-12 days

0

33

Simplicity 7057809

ADAPTER, 33" Grass Catcher (Incl. Decal Item #34)
(Superseded to 7057809YP)

$277.99

$

Usually ships in 2-12 days

0

34

Simplicity 7091833

SCREW, Pan Head Machine, 5/16C X5/8 GR5 YZ
(Superseded to 7091833SM)

$4.49

$

In Stock, only 1 left!

0

35

Simplicity 7036543

NUT, "T", 5/16C YZ
(Superseded to 7036543SM)

$2.99

$

Usually ships in 2-12 days

0

36

Simplicity 7036404

WELD NUT, #10C YZ
(Superseded to 7036404SM)

$3.49

$

Usually ships in 2-12 days

0

37

Simplicity 7036433

STRAP, Mounting Bag Adapter
(Superseded to 7036433SM)

$31.99

$

In Stock, only 1 left!

0

38

Simplicity 7036422

WASHER, .192X.75X.051 YZ
(Superseded to 7036422SM)

$3.99

$

In Stock, only 2 left!

0

39

Simplicity 1729233

SCREW, Pan Head Phillips, 1/4-20X1.50

$

$

Not available

40

Simplicity 1960096

WASHER, 0.187(0.19IDX0.75ODX.06THK)
(Superseded to 1960096SM)

$3.99

$

In Stock, only 2 left!

0

41

Simplicity 1704846

SPACER, 0.256 ID X 0.394 OD X 0.512 LG
(Superseded to 1704846SM)

$4.49

$

Usually ships in 2-12 days

0

42

Simplicity 1960694

NUT, Hex Flange 1/4-20 ESNA BLK
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 720525

PIN, Cover Hinge .375DIA 3.75 LG YEL
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

44

Simplicity 1960074

CLIP, Hair Pin .093DIA SPG WR1.625LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

45

Simplicity 2176012

RETAINER, Pin Spring For .312/.375 Pin BLK
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

46

Simplicity 1734229

PIN, Hinge, Drilled .375 X 5.34L YEL
(Superseded to 1734229SM)

$17.99

$

Usually ships in 2-12 days

0

47

Simplicity 7200008

ROD, Hinge 5/16" x 9.69"
(Superseded to 7200008SM)

$5.99

$

Usually ships in 2-12 days

0

48

Simplicity 7091303

BOLT, RHSSN, 5/16C X1 GR5 YZ
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

49

Simplicity 7091537

NUT, Wing Lock, 5/16C YZ
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

--

Simplicity 722855

SCREW, 1/4 ABX.75 (Not shown)
(Superseded to 26X239MA)

$4.49

$

Usually ships in 2-12 days

0

50

Simplicity 1735395

MANUAL, Operators, SMI/Snapper 33" Twin ZT Bagger

$

$

Not available

51

Simplicity 7104098

MANUAL, Illustrated Parts List, Simplicity 33" Twin ZT Bagger

$

$

Not available
