1695433 - Snapper 40" Mower Deck 40" Mower Deck - Housing, Arbors & Blades Parts Diagram

40" Mower Deck

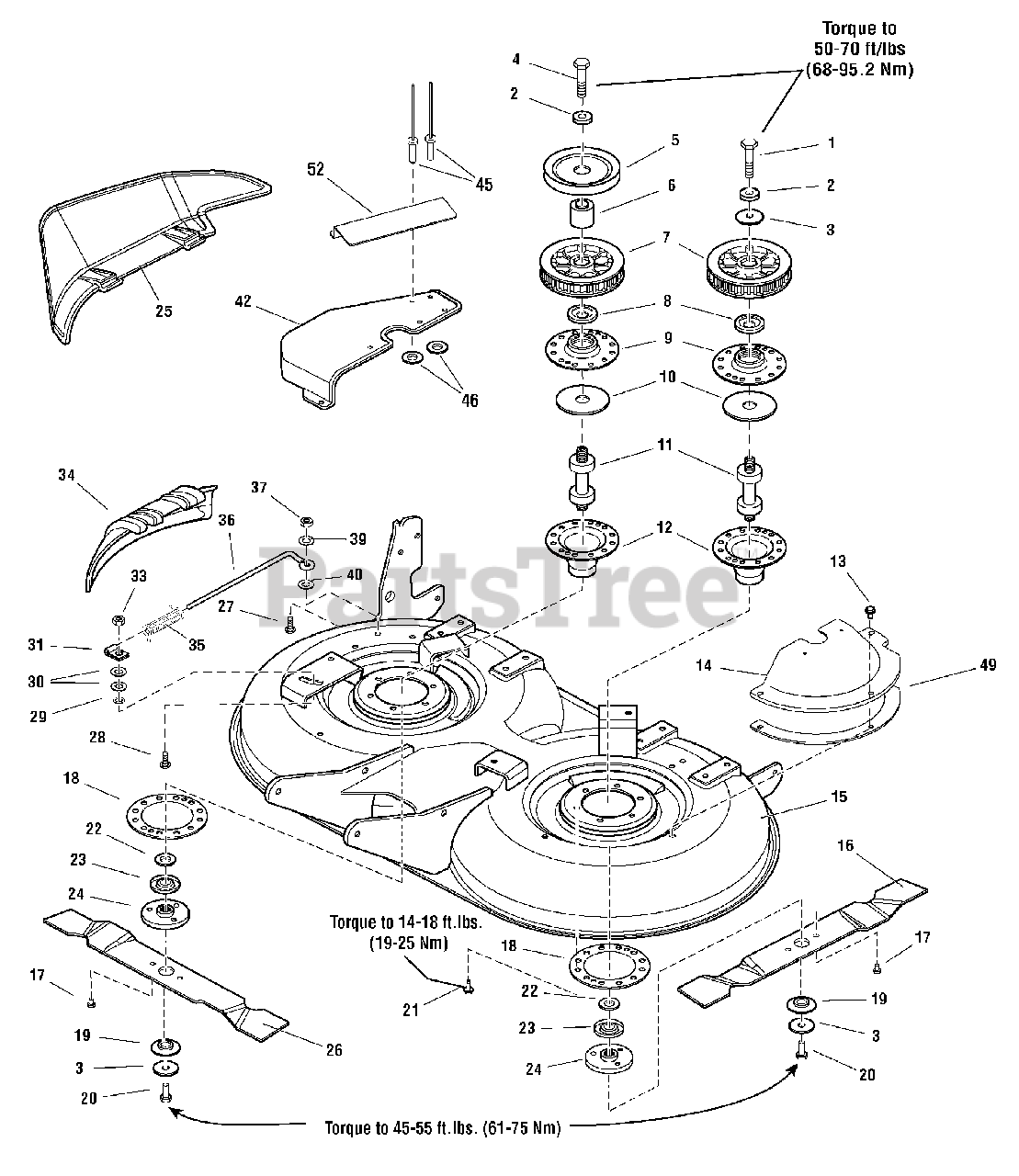

40" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

1

Snapper 1930584

CAPSCREW, Hex Head, 7/16-14 x 2-3/4 G8
(Superseded to 1930584SM)

$7.99

$

Usually ships in 2-12 days

0

2

Snapper 1933263

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

3

Snapper 1656916

WASHER, Spring
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

4

Snapper 1930585

CAPSCREW, Hex Head, 7/16-14 x 3-1/2
(Superseded to 1930585SM)

$7.49

$

In Stock, only 2 left!

0

5

Snapper 1732123

PULLEY, Drive 6"
(Superseded to 1732123SM)

$35.99

$

Usually ships in 2-12 days

0

6

Snapper 1732051

HUB

$

$

Not available

7

Snapper 1687229

SPROCKET & FLANGE ASSEMBLY, w/Screws, 38 Tooth
(Superseded to 1732590SM)

$87.99

$

In Stock, only 1 left!

0

8

Snapper 1657969

SHIELD, Bearing Upper, Arbor
(Superseded to 1657969SM)

$7.49

$

In Stock, Qty 20+

0

9

Snapper 1655729A

HOUSING, Arbor Top
(Superseded to 1655729ASM)

$14.99

$

Usually ships in 2-12 days

0

10

Snapper 1707335

GASKET, Foam Poly
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

11

Snapper 1722396

ARBOR SHAFT & BEARINGS ASSEMBLY
(Superseded to 1722396SM)

$263.99

$

Usually ships in 2-12 days

0

12

Snapper 1703273A

HOUSING, Arbor Bottom with Lube Fitting
(Superseded to 1703273ASM)

$38.99

$

In Stock, Qty 20+

0

13

Snapper 1664847

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 1724601

COVER, Arbor, LH
(Superseded to 1732301SM)

$29.99

$

Usually ships in 2-12 days

0

15

Snapper 1687175

HOUSING ASSEMBLY, 40", Red
(Superseded to 1687175SM)

$523.99

$

Usually ships in 2-12 days

0

16

Snapper 1719624A

BLADE, Mower, LH
(Superseded to 1719624ASM)

$31.99

$

In Stock, only 1 left!

0

17

Snapper 1722258

PIN, Blade
(Superseded to 1722258SM)

$8.49

$

In Stock, only 2 left!

0

18

Snapper 1677274A

ADAPTOR, Arbor
(Superseded to 1677274ASM)

$20.99

$

Usually ships in 2-12 days

0

19

Snapper 1722257

WASHER, Spline
(Superseded to 1722257SM)

$59.99

$

Usually ships in 2-12 days

0

20

Snapper 2827120

CAPSCREW, Hex Head, 7/16-14 x 2-1/4 G8
(Superseded to 2827120SM)

$

$

Not available

21

Snapper 1960373

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 1700230

WASHER, Shim
(Superseded to 1700230SM)

$4.99

$

In Stock, Qty 20+

0

23

Snapper 1700229

SHIELD, Arbor Bearing, Lower
(Superseded to 1700229SM)

$10.99

$

In Stock, Qty 20+

0

24

Snapper 1655777

ADAPTER, Blade
(Superseded to 1655777SM)

$25.99

$

In Stock, Qty 20+

0

25

Snapper 1723453

DEFLECTOR, Discharge
(Superseded to 1723453SM)

$61.99

$

Usually ships in 2-12 days

0

26

Snapper 1719623A

BLADE, Mower, RH
(Superseded to 1719623ASM)

$31.99

$

In Stock, only 1 left!

0

27

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

28

Snapper 1931318

CARRIAGE BOLT, 1/4-20 x 7/8
(Superseded to 1931318SM)

$4.49

$

In Stock, only 2 left!

0

29

Snapper 1960518

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

31

Snapper 1704873

CLAMP
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 1920397

NUT, Hex 1/4-20, ESNA
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 1719597

DOOR, Mulching, Black Plastic
(Superseded to 1719597SM)

$32.99

$

Usually ships in 2-12 days

0

35

Snapper 7101082

SPRING, Torsion
(Superseded to 7101082SM)

$8.49

$

In Stock, Qty 20+

0

36

Snapper 1719617

ROD, Pivot
(Superseded to 1719617SM)

$10.99

$

Usually ships in 2-12 days

0

37

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

39

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, only 2 left!

0

40

Snapper 1933988

NUT, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

42

Snapper 1732085

COVER, Arbor
(Superseded to 1732085SM)

$47.99

$

Usually ships in 2-12 days

0

45

Snapper 1675044

RIVIT, Pop
(Superseded to 1675044SM)

$3.99

$

In Stock, only 1 left!

0

46

Snapper 1960096

WASHER, 3/16 x 3/4 x 1/16
(Superseded to 1960096SM)

$3.99

$

Usually ships in 2-12 days

0

49

Snapper 1732960

SHIM-Cover LH 7GA 40" Mower

$

$

Not available

52

Snapper 1735702

GUARD, Pulley

$

$

Currently unavailable
