1695433 - Snapper 40" Mower Deck 40" Mower Deck - Belt, Idler Arm & Hitch Parts Diagram

40" Mower Deck

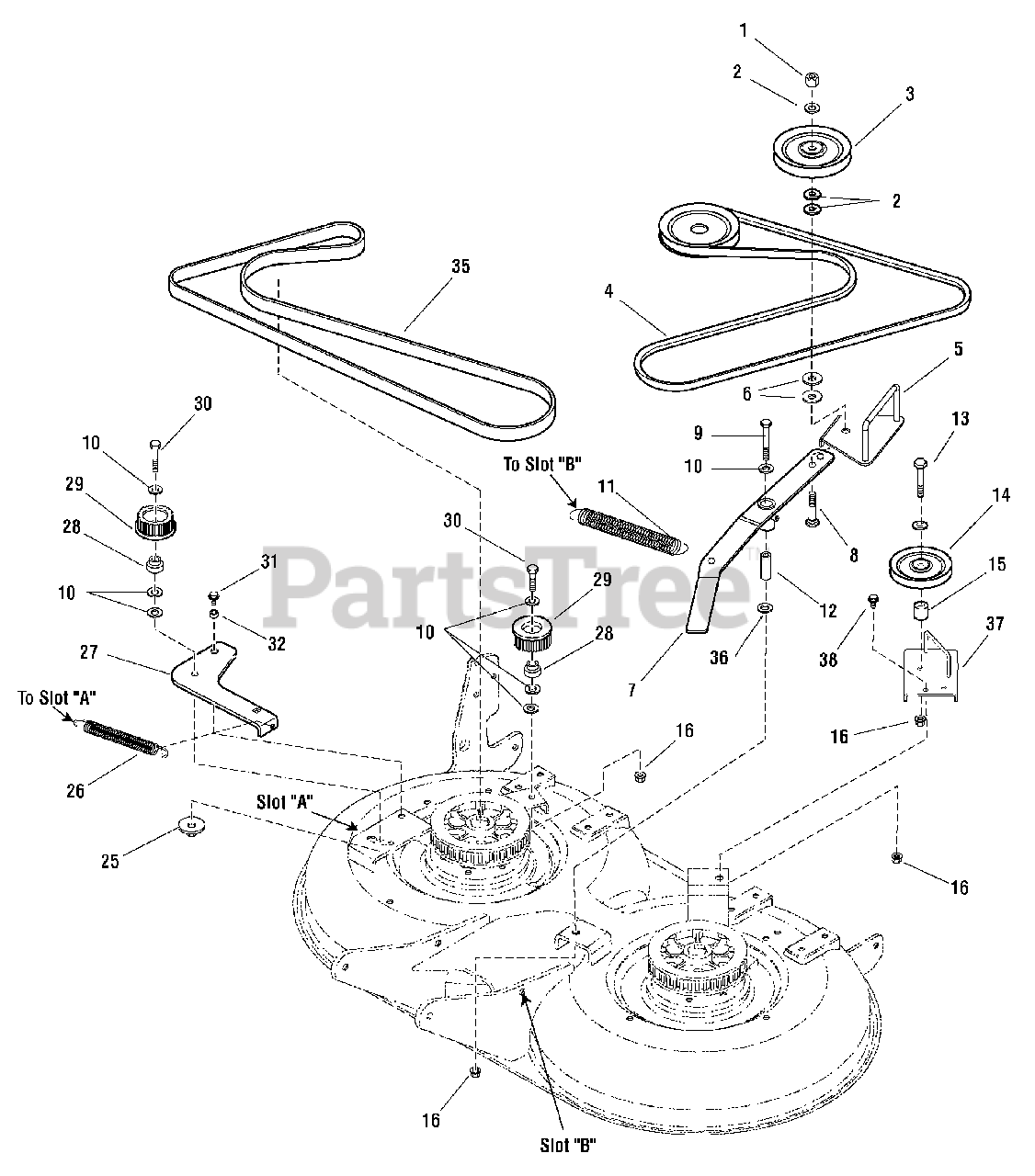

40" Mower Deck - Belt, Idler Arm & Hitch Parts Diagram

  • Title

1

Snapper 1919439

NUT, Hex Lock Esna Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

2

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 1725408

PULLEY, Idler
(Superseded to 1725408SM)

$47.99

$

Usually ships in 2-12 days

0

4

Snapper 1721532

V-BELT, Mower Drive (82.0 EL, HA Sect.)
(Superseded to 1721532SM)

$58.99

$

In Stock, Qty 20+

0

5

Snapper 1722175A

BELT GUIDE ASSY
(Superseded to 1722175ASM)

$26.99

$

Usually ships in 2-12 days

0

6

Snapper 1960534

WASHER
(Superseded to 1960534SM)

$

$

Not available

7

Snapper 1724835A

IDLER ASSY

$

$

Currently unavailable

8

Snapper 1931355

BOLT, Carriage, 3/8-16 x 3
(Superseded to 1931355SM)

$5.99

$

In Stock, Qty 11

0

9

Snapper 1960614

CAPSCREW, Hex, 3/8-16 x 3
(Superseded to 1960614SM)

$4.99

$

In Stock, only 1 left!

0

10

Snapper 1922755

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

11

Snapper 1715435

SPRING, Extension
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

12

Snapper 1657242

SPACER,
(Superseded to 1657242SM)

$10.99

$

In Stock, Qty 10

0

13

Snapper 1922130

CAPSCREW, Hex Head, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

14

Snapper 1723952

PULLEY
(Superseded to 1723952SM)

$43.99

$

Usually ships in 2-12 days

0

15

Snapper 1667812

SPACER
(Superseded to 1667812SM)

$5.99

$

In Stock, Qty 16

0

16

Snapper 1928352

NUT, Hex Flange Whiz Lock, Large, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

25

Snapper 1721425

WASHER & NUT ASSEMBLY, 3/8 x 1-1/2
(Superseded to 1721425SM)

$

$

Not available

26

Snapper 1674671

SPRING, Extension
(Superseded to 1674671SM)

$24.99

$

In Stock, Qty 5

0

27

Snapper 1726387A

ARM, Idler
(Superseded to 1726387ASM)

$55.99

$

Usually ships in 2-12 days

0

28

Snapper 1719221

HUB, Pulley
(Superseded to 1719221SM)

$23.99

$

Usually ships in 2-12 days

0

29

Snapper 1731892

PULLEY, Idler
(Superseded to 1731892SM)

$67.99

$

Usually ships in 2-12 days

0

30

Snapper 1960746

BOLT, Hex Flange 3/8-16 x 2
(Superseded to 1960746SM)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper 1930601

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1/2
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

32

Snapper 1666697

SPACER
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

35

Snapper 1724625

BELT, Timing, 38 Tooth, Arbor Drive
(Superseded to 1724625SM)

$213.99

$

Usually ships in 2-12 days

0

36

Snapper 1933263

SPACER
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

37

Snapper 1735248A

PLATE ASSY, Idler

$

$

Currently unavailable

38

Snapper 1921965

CAPSECREW, 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0
