1695419 - Snapper 36" Tiller Attachment Tine & Deflector Group Parts Diagram

36" Tiller Attachment

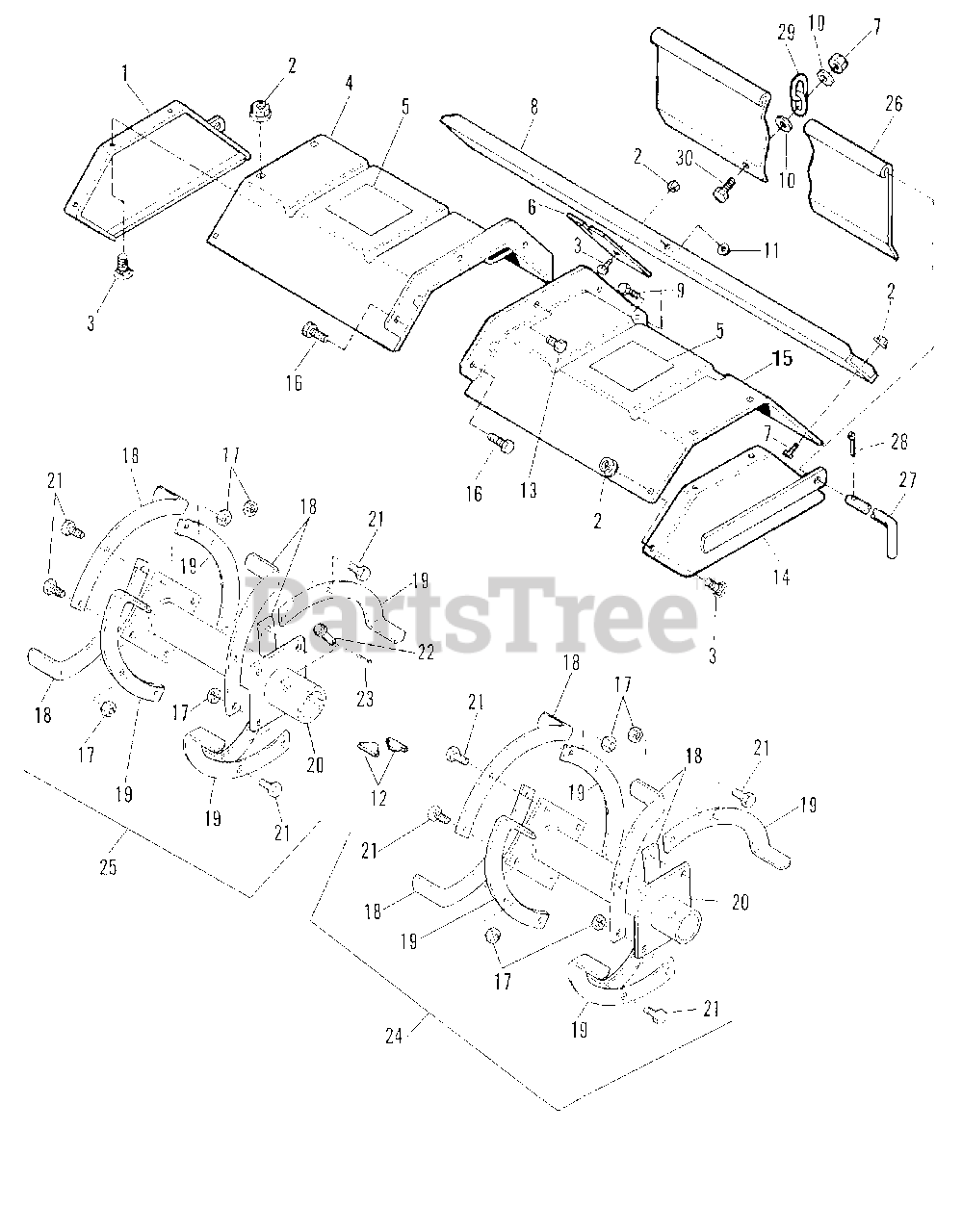

Tine & Deflector Group Parts Diagram

  • Title

1

Snapper 1707990A

PLATE, End, R.H.
(Superseded to 1707990ASM)

$45.99

$

Usually ships in 2-12 days

0

2

Snapper 1927557

LOCKNUT, Flange, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

3

Snapper 1931332

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 2105369A

DEFLECTOR ASSEMBLY, R.H.
(Superseded to 2105369ASM)

$233.99

$

Usually ships in 2-12 days

0

5

Snapper 1679700

DECAL, Safety
(Superseded to 1679700SM)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 2105354A

SHIELD
(Superseded to 2105354ASM)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 1930642

NUT, Hex Head, Flange, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, Qty 6

0

8

Snapper 1707938A

CHANNEL
(Superseded to 1707938ASM)

$70.99

$

Usually ships in 2-12 days

0

9

Snapper 1921210

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

10

Snapper 1960353

WASHER
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

11

Snapper 1930645

NUT, Hex, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Snapper 2105337

KEY
(Superseded to 2105337SM)

$8.49

$

In Stock, Qty 12

0

13

Snapper 1933260

CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

14

Snapper 1707991A

PLATE, End, L.H.
(Superseded to 1707991ASM)

$

$

Not available

15

Snapper 2105370A

DEFLECTOR ASSEMBLY, L.H.
(Superseded to 2105370ASM)

$216.99

$

Usually ships in 2-12 days

0

16

Snapper 1934654

CAPSCREW, Hex, Whizlock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

17

Snapper 1928867

LOCKNUT, 7/16-20
(Superseded to 1928867SM)

$2.99

$

Usually ships in 2-12 days

0

18

Snapper 2105376A

BLADE, Tine, R.H.
(Superseded to 2105376ASM)

$

$

Not available

19

Snapper 2105375A

BLADE, Tine, L.H.
(Superseded to 2105375ASM)

$

$

Not available

20

Snapper 1651504A

HUB & PLATE ASSEMBLY
(Superseded to 1651504ASM)

$216.99

$

Usually ships in 2-12 days

0

21

Snapper 1920353

CAPSCREW, Hex Head, 7/16-20 x 1-1/2
(Superseded to 1920353SM)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 2105249

PIN
(Superseded to 2105249SM)

$16.99

$

Usually ships in 2-12 days

0

23

Snapper 1918451

PIN, Cotter
(Superseded to 1918451SM)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 1650461

BLADE ASSEMBLY, L.H.
(Superseded to 1650461SM)

$

$

Not available

25

Snapper 1650460

BLADE ASSEMBLY, R.H.
(Superseded to 1650460SM)

$

$

Not available

26

Snapper 1707945A

DEFLECTOR

$

$

Not available

27

Snapper 1707939

ROD
(Superseded to 1707939SM)

$19.99

$

Usually ships in 2-12 days

0

28

Snapper 1918448

PIN, Cotter
(Superseded to 1918448SM)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 1707951

CHAIN
(Superseded to 1707951SM)

$

$

Not available

30

Snapper 1924009

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0
