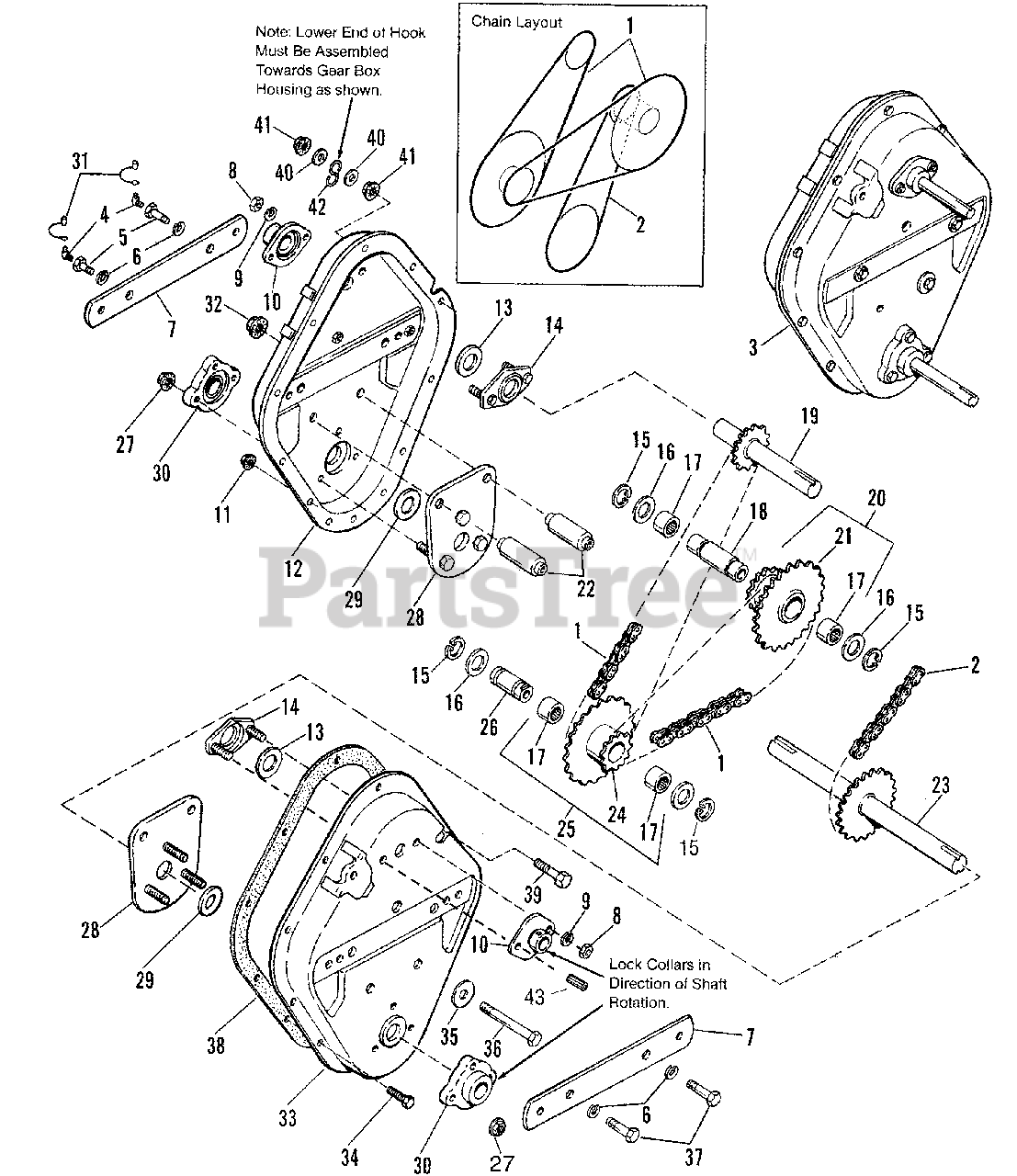

1695419 - Simplicity 36" Tiller Attachment Housing Group Parts Diagram

36" Tiller Attachment

Housing Group Parts Diagram

  • Title

1

Simplicity 2105336

CHAIN, # 40
(Superseded to 2105336SM)

$29.99

$

Usually ships in 2-12 days

0

2

Simplicity 2178174

CHAIN, # 50
(Superseded to 2178174SM)

$86.99

$

Usually ships in 2-12 days

0

3

Simplicity 1650841

TRANSMISSION SUB ASSEMBLY (Incl. Ref. Nos. 1-16, 18-38 on this page) & Incls. Ref. Nos. 1-5,7,11,17,18,19,34,36 & 38 in the 36" Tiller Drive Group)
(Superseded to 1650841SM)

$

$

Not available

4

Simplicity 2815019

FITTING, Grease
(Superseded to 2815019SM)

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 2105132

BOLT, Hex Head, Drilled & Tapped
(Superseded to 2105132SM)

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 1916966

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 2105320A

BAR, Side
(Superseded to 2105320ASM)

$

$

Not available

8

Simplicity 1917372

NUT, Hex, 5/16-1
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1669337

BEARING
(Superseded to 1669337SM)

$85.99

$

Usually ships in 2-12 days

0

11

Simplicity 1923362

LOCKNUT, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

12

Simplicity 2105366A

CASE ASSEMBLY, Half, R.H.
(Superseded to 2105366ASM)

$182.99

$

Usually ships in 2-12 days

0

13

Simplicity 2105365

SEAL
(Superseded to 2105365SM)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1669338

PLATE ASSEMBLY, Upper Bearing
(Superseded to 1669338SM)

$104.99

$

Usually ships in 2-12 days

0

15

Simplicity 2827320

RING, Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0

16

Simplicity 2860208

WASHER, 1
(Superseded to 2860208SM)

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 2105192

SPACER, Inter.
(Superseded to 2105192SM)

$110.99

$

Usually ships in 2-12 days

0

19

Simplicity 2105298

SHAFT ASSEMBLY, Pulley
(Superseded to 2105298SM)

$71.99

$

Usually ships in 2-12 days

0

20

Simplicity 1650975

SPROCKET & BEARING ASSEMBLY, (Incl. Ref. Nos. 17 & 21)
(Superseded to 1650975SM)

$259.99

$

Usually ships in 2-12 days

0

25

Simplicity 1650976

SPROCKET & BEARING ASSEMBLY, (Incl. Ref. Nos. 17 & 24)
(Superseded to 1650976SM)

$198.99

$

Usually ships in 2-12 days

0

17

Simplicity 2105195

BEARING, Roller
(Superseded to 2105195SM)

$34.99

$

Usually ships in 2-12 days

0

21

SPROCKET ASSEMBLY, (See Ref. No. 20)

$

$

Not available

22

Simplicity 2105360

SPACER
(Superseded to 2105360ASM)

$14.99

$

Usually ships in 2-12 days

0

23

Simplicity 2178177

SHAFT ASSEMBLY, Tine
(Superseded to 2178177SM)

$277.99

$

In Stock, only 1 left!

0

24

SPROCKET (See Ref. No. 25)

$

$

Not available

26

Simplicity 2105292

SPACER, Internal
(Superseded to 2105292SM)

$51.99

$

Usually ships in 2-12 days

0

27

Simplicity 1930645

LOCKNUT, Hex, Jam, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

28

Simplicity 1669298

PLATE ASSEMBLY
(Superseded to 1669298SM)

$53.99

$

Usually ships in 2-12 days

0

29

Simplicity 2105357

SEAL
(Superseded to 2105357SM)

$5.99

$

In Stock, Qty 5

0

30

Simplicity 2105309

BEARING
(Superseded to 2105309SM)

$158.99

$

In Stock, only 1 left!

0

31

Simplicity 2105363

CAP, Grease
(Superseded to 2105363SM)

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 1930644

LOCKNUT, Flange, 1/2-13
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

33

Simplicity 2105367A

CASE ASSEMBLY, Half, L.H.
(Superseded to 2105367ASM)

$182.99

$

Usually ships in 2-12 days

0

34

Simplicity 1925205

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

35

Simplicity 1918431

WASHER, 1/2
(Superseded to 704011)

$4.49

$

In Stock, Qty 11

0

36

Simplicity 1926158

CAPSCREW, Hex Head, 1/2-13 x 4
(Superseded to 1926158SM)

$6.99

$

In Stock, only 1 left!

0

37

Simplicity 1929528

CAPSCREW, Hex Head, 1/2-20 x 1
(Superseded to 1929528SM)

$4.49

$

In Stock, only 1 left!

0

38

Simplicity 2105373

GASKET
(Superseded to 2105373SM)

$42.99

$

In Stock, Qty 6

0

39

Simplicity 1921977

CAPSCREW, Hex Head, 5/16-1 8 x 1-1 /4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

40

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

41

Simplicity 1935048

LOCKNUT, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

42

Simplicity 1679204

HOOK, "S"
(Superseded to 1679204SM)

$2.99

$

Usually ships in 2-12 days

0

43

Simplicity 1707599

ANCHOR SPRING
(Superseded to 1707599SM)

$31.99

$

Usually ships in 2-12 days

0
