1695414 - Snapper 44" Mower Deck 44" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

44" Mower Deck

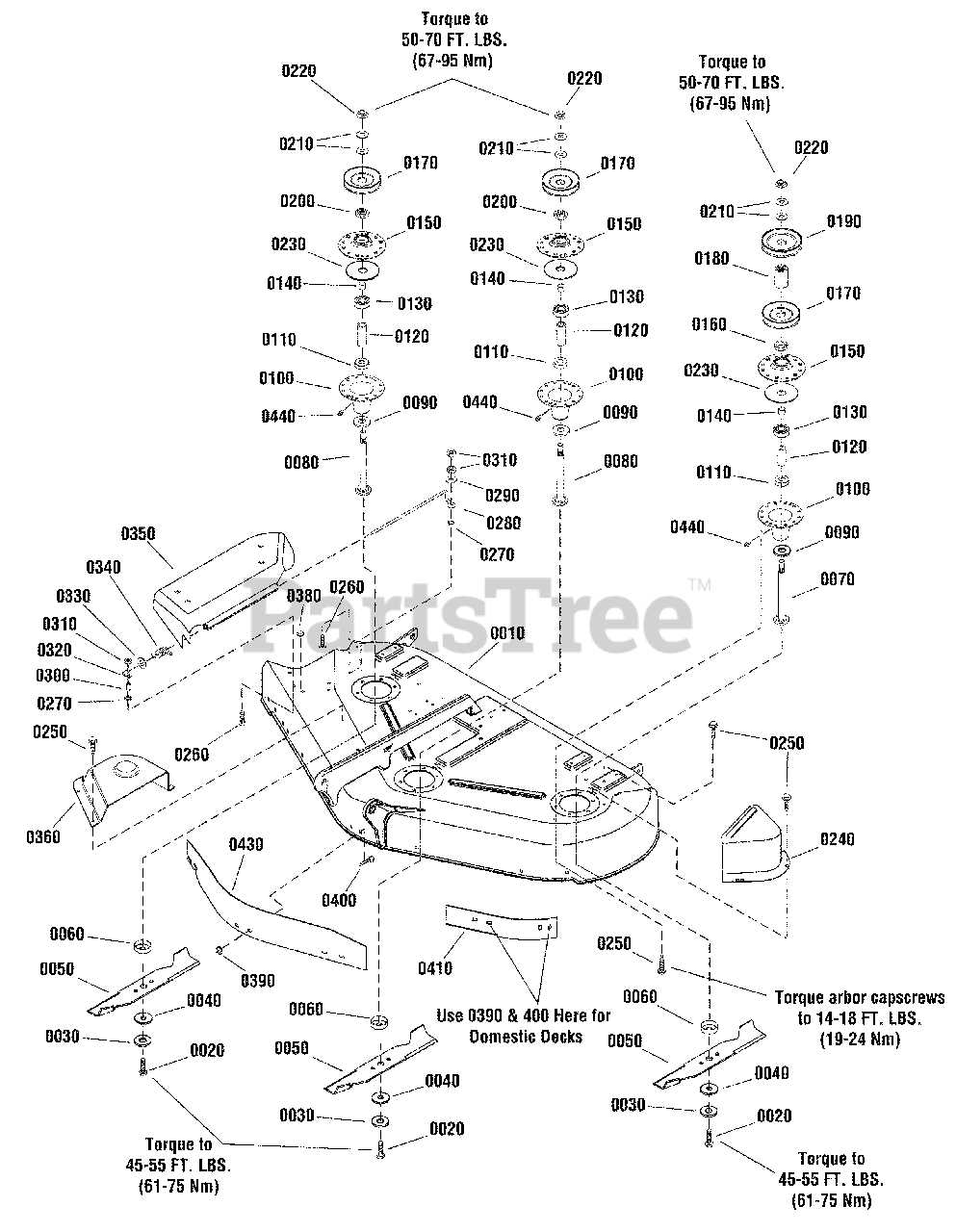

44" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Snapper 1734753D

HOUSING ASSEMBLY, 44 Red

$

$

Not available

0020

Snapper 2823471

CAPSCREW, Hex Head 7/16-14 x 1-1/4 G8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 1656916

WASHER, Spring
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

0040

Snapper 1713089

WASHER, Hex, 11/16 x 2
(Superseded to 1713089SM)

$4.99

$

In Stock, Qty 20+

0

0050

Snapper 1727774

BLADE, Mower
(Superseded to 1716696ASM)

$25.99

$

In Stock, Qty 20+

0

0060

Snapper 1713196

SHIELD, Grass Lower Arbor
(Superseded to 1713196SM)

$9.49

$

In Stock, Qty 20+

0

0070

Snapper 1713612

SHAFT, Arbor
(Superseded to 1713612SM)

$

$

Not available

0080

Snapper 1713195

SHAFT, Arbor
(Superseded to 1713195SM)

$31.99

$

In Stock, Qty 8

0

0090

Snapper 1713619

WASHER, Cup
(Superseded to 1713619SM)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1713338A

HOUSING, Arbor Bottom w/Lube Fitting
(Superseded to 1713338ASM)

$41.99

$

In Stock, Qty 20+

0

0110

Snapper 1705897

BEARING, Ball 11/16 x 1-9/16 x 15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

0120

Snapper 1732544

SPACER, Powdered Metal
(Superseded to 1732544SM)

$5.49

$

In Stock, Qty 20+

0

0130

Snapper 2108202

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

0140

Snapper 1715724

SPACER, 21/32 x 3/4 x 5/8
(Superseded to 1715724SM)

$9.49

$

In Stock, Qty 20+

0

0150

Snapper 1655729A

HOUSING, Arbor Top
(Superseded to 1655729ASM)

$14.99

$

Usually ships in 2-12 days

0

0160

Snapper 1713533

HUB, Powdered Metal
(Superseded to 1713533SM)

$9.99

$

In Stock, Qty 20+

0

0170

Snapper 1713098

PULLEY
(Superseded to 1713098SM)

$19.99

$

In Stock, Qty 20+

0

0180

Snapper 1713158

HUB, Hub Serrated
(Superseded to 1713158SM)

$18.99

$

In Stock, Qty 20+

0

0190

Snapper 1732951

PULLEY
(Superseded to 1732951SM)

$19.99

$

In Stock, Qty 20+

0

0200

Snapper 1713197

HUB, Pulley, Center & R.H.
(Superseded to 1713197SM)

$6.99

$

In Stock, Qty 20+

0

0210

Snapper 1713675

WASHER, Bellville, 9/16
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

0220

Snapper 1714419

NUT, Hex Flange 9/16-18
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 20+

0

0230

Snapper 1707335

GASKET
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

0240

Snapper 1720560A

COVER, Arbor
(Superseded to 1720560ASM)

$90.99

$

In Stock, only 1 left!

0

0250

Snapper 1664847

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0260

Snapper 1960633

CARRIAGE BOLT, 1/4-20 x 1-1/2 G5
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

0270

Snapper 1960518

NUT, Push for 1/4 Diameter Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0290

Snapper 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0280

Snapper 1706709

ROD, Deflector
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 20+

0

0300

Snapper 1710703

SPACER
(Superseded to 1710703SM)

$6.49

$

In Stock, Qty 20+

0

0310

Snapper 1920397

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0320

Snapper 1704873

CLAMP, Wire, 5/16 Diameter
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

0330

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0340

Snapper 7101082

SPRING, Torsion Chute
(Superseded to 7101082SM)

$8.49

$

In Stock, Qty 20+

0

0350

Snapper 1705449

DEFLECTOR
(Superseded to 1705449SM)

$122.99

$

In Stock, only 1 left!

0

0360

Snapper 1715673

COVER, Arbor
(Superseded to 1715673SM)

$38.99

$

In Stock, only 1 left!

0

0380

Snapper 1705115

PLUG, Button
(Superseded to 1705115SM)

$4.49

$

In Stock, only 1 left!

0

0390

Snapper 1927557

NUT, Hex Flange 5/16-18 Whiz Lock
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

0400

Snapper 1921333

CAPSCREW, Hex Head 5/16-18 x 1 G5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0410

Snapper 1724538A

BAFFLE, Short Blowout
(Superseded to 1724538ASM)

$45.99

$

In Stock, only 1 left!

0

0430

Snapper 1734181A

BAFFLE, Front
(Superseded to 1734181ASM)

$43.99

$

Usually ships in 2-12 days

0

0440

Snapper 1704314

LUBE, Fitting, 1/4 Drive
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0
