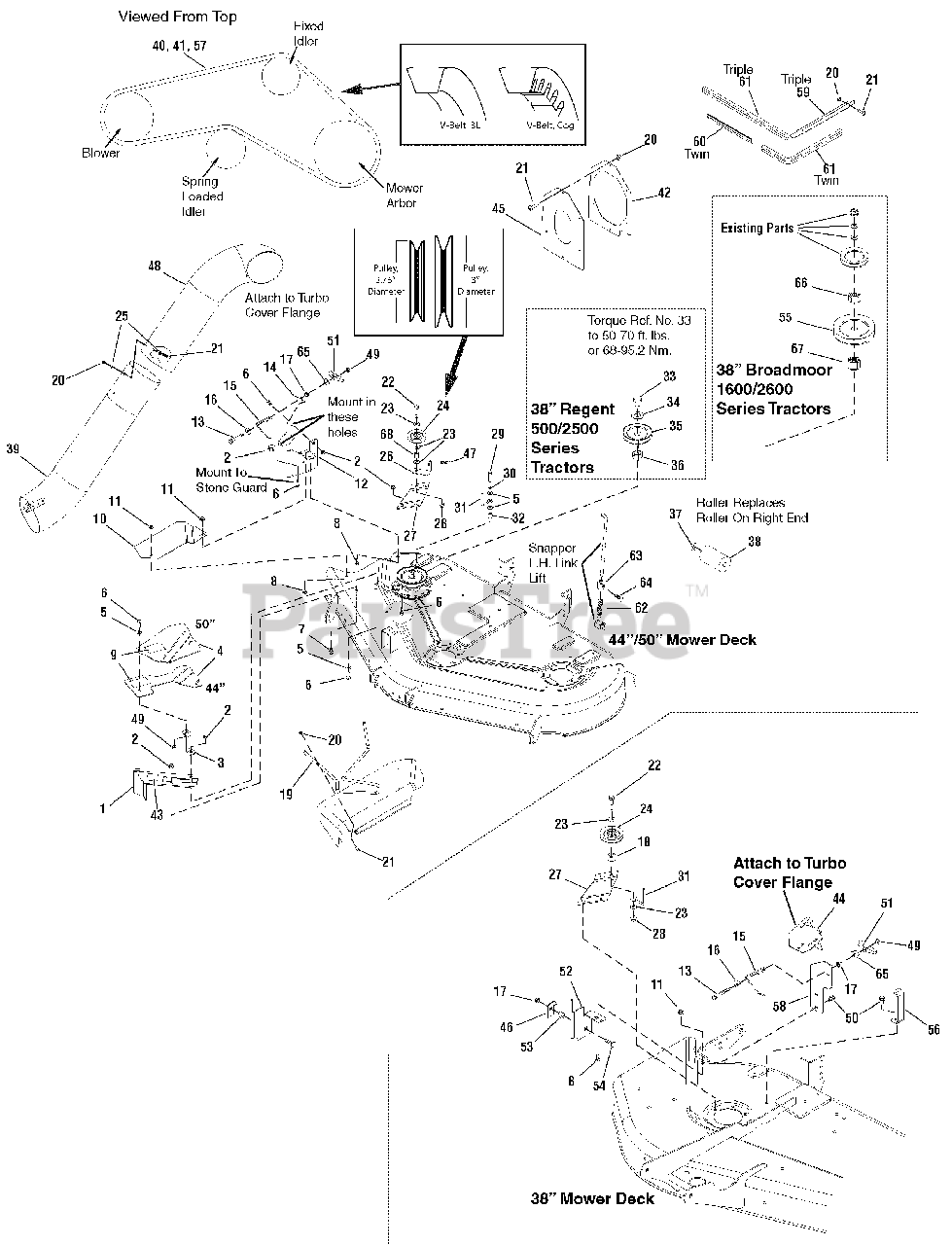

1695412 - Simplicity Turbo Collection System for 38", 44" & 50" Mower Deck Turbo, Mounting Kit Parts Diagram

Turbo Collection System for 38", 44" & 50" Mower Deck

Turbo, Mounting Kit Parts Diagram

  • Title

1

Simplicity 1722546ASM

PIVOT BRACKET ASSEMBLY

$216.99

$

Usually ships in 2-12 days

0

2

Simplicity 1931277SM

NUT, Hex Whiz Lock Flange, 5/16 - 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 1718304ASM

SUPPORT, Belt Cover

Note: (44" & 50" Mower Decks)

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 1724374ASM

COVER, Belt, 44"

$22.99

$

Usually ships in 2-12 days

0

4

Simplicity 1724376ASM

COVER, Belt, 50"

$21.99

$

Usually ships in 2-12 days

0

5

Simplicity 1919326SM

WASHER, Flat, 5/16

Note: (44" & 50" Mower Decks)

$4.49

$

In Stock, Qty 6

0

6

Simplicity 1923325SM

CAPSCREW, Hex, 5/16 - 18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

7

Simplicity 1931333SM

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

8

Simplicity 1931317SM

BOLT, Carriage, 1/4 - 20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 1717291SM

DECAL, Warning

Note: (44" & 50" Mower Decks)

$13.99

$

Usually ships in 2-12 days

0

10

Simplicity 1732591ASM

COVER, Mower

Note: (44" & 50" Mower Decks)

$40.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960685SM

NUT, Keps Conical, 1/4 - 20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

12

Simplicity 1732592ASM

BRACKET, Baffle

Note: (44" & 50" Mower Decks)

$45.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960318SM

CAPSCREW, Hex, 5/16 - 18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1732619ASM

BAFFLE, Turbo

Note: (44" & 50" Mower Decks)

$27.99

$

Usually ships in 2-12 days

0

15

Simplicity 1705064SM

SPRING, Latch

$44.99

$

Usually ships in 2-12 days

0

16

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1960636SM

NUT, Keps Lock, 5/16 - 18

$4.99

$

In Stock, only 1 left!

0

18

Simplicity 1667811SM

SPACER

Note: (38" Mower Decks)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1718295ASM

ROD, Deflector

$112.99

$

Usually ships in 2-12 days

0

20

Simplicity 1933896SM

NUT, ESNA Lock, 10 - 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 1960404SM

SCREW, Truss Phillips, 10 - 24 x 3/4

$3.99

$

In Stock, only 4 left!

0

22

Simplicity 1923701SM

CAPSCREW, Hex, 3/8 - 16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1714817SM

PULLEY, Idler, 2-3/4" Dia.
(Superseded to 703056)

Note: (For 3L V-Belt, Replaced by Service Kit Ref. Nos. 69, 70 or 71)

$42.99

$

In Stock, Qty 6

0

24

Simplicity 1721134SM

PULLEY, Idler, 3" Dia.

Note: (For Cog Belt, Included in Service Kit Ref. Nos. 69, 70 & 71)

$30.99

$

In Stock, Qty 20+

0

25

Simplicity 1910531SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 1724373ASM

BRACKET, "L"

Note: (44" & 50" Mower Decks)

$17.99

$

Usually ships in 2-12 days

0

27

Simplicity 1704768ASM

BRACKET, "Z"

$13.99

$

Usually ships in 2-12 days

0

28

Simplicity 1931211SM

NUT, Whiz Lock Small, 3/8 - 16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

29

Simplicity 1921221SM

CAPSCREW, Hex, 5/16 - 18 x 1-1/2
(Superseded to 703906)

Note: (44" & 50" Mower Decks)

$4.99

$

In Stock, only 4 left!

0

30

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

Note: (44" & 50" Mower Decks)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 2172845SM

STOP, Belt

$11.99

$

Usually ships in 2-12 days

0

32

Simplicity 1710703SM

SPACER

Note: (44" & 50" Mower Decks)

$6.49

$

In Stock, Qty 20+

0

33

Simplicity 1733078SM

NUT, 1-7/32 Sleeve Length

Note: (For Regent 500/2500 Series Tractors)

$27.99

$

Usually ships in 2-12 days

0

33

Simplicity 1713523SM

NUT, 1-3/4 Sleeve Length

Note: (For Broadmoor 1600/2600, 44" & 50" Series Tractors)

$41.99

$

In Stock, only 1 left!

0

34

Simplicity 1603592SM

WASHER, Flat, 7/8

$11.99

$

Usually ships in 2-12 days

0

35

Simplicity 1709941SM

PULLEY, 4.3

Note: (44" & 50" Mower Decks)

$28.99

$

Usually ships in 2-12 days

0

36

Simplicity 1713623SM

HUB, 0.73L

Note: (For Use On Regent 500/2500 Series Tractors)

$9.99

$

In Stock, only 1 left!

0

36

Simplicity 1713634SM

HUB, 1.28L

Note: (For Use On Conquest 1800/2700 and Prestige 1800/2800, 44" & 50" Series Tractors)

$16.99

$

Usually ships in 2-12 days

0

37

Simplicity 1960520SM

NUT, Push
(Superseded to 771009)

Note: (44" & 50" Mower Decks)

$3.99

$

In Stock, Qty 20+

0

38

Simplicity 1713540SM

ROLLER

Note: (44" & 50" Mower Decks)

$43.99

$

Usually ships in 2-12 days

0

39

Simplicity 1719719SM

TUBE ASSEMBLY, Lower

$170.99

$

Usually ships in 2-12 days

0

40

Simplicity 1732945SM

V-BELT, 3L, 37.90

Note: (44" Mower Decks - Replaced by Service Kit Ref. No. 70)

$25.99

$

Usually ships in 2-12 days

0

40

Simplicity 1736553YP

V-BELT, Cog, 37.90

Note: (44" Mower Decks - Included in Service Kit Ref. No. 70)

$40.99

$

In Stock, only 2 left!

0

41

Simplicity 1732801SM

V-BELT, 3L, 37.90

Note: (50" Mower Decks - Replaced by Service Kit Ref. No. 71)

$26.99

$

Usually ships in 2-12 days

0

41

Simplicity 1736554YP

V-BELT, Cog, 39.62

Note: (50" Mower Decks - Included in Service Kit Ref No. 71)

$40.99

$

In Stock, only 1 left!

0

42

Simplicity 1732735ASM

SEAL, Flange

$40.99

$

Usually ships in 2-12 days

0

43

*DECAL, Patent

$

$

Not available

44

Simplicity 1733077ASM

LATCH - 38" Turbo

Note: (38" Mower Decks)

$56.99

$

Usually ships in 2-12 days

0

45

Simplicity 1733741SM

SEAL, Cover
(Superseded to 1733741YP)

$29.99

$

Usually ships in 2-12 days

0

46

Simplicity 1705308ASM

BRACKET, "L" Turbo

Note: (38" Mower Decks)

$33.99

$

Usually ships in 2-12 days

0

47

Simplicity 1960074SM

PIN, Klik
(Superseded to 703300)

Note: (44" & 50" Mower Decks)

$3.99

$

In Stock, Qty 20+

0

48

Simplicity 1732800SM

TUBE, Upper

$74.99

$

Usually ships in 2-12 days

0

49

Simplicity 1919438SM

NUT, ESNA, 5/16 - 18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

50

Simplicity 1930601SM

SCREW, 5/16 - 18 x 5/8
(Superseded to 703949)

Note: (38" Mower Decks)

$3.99

$

In Stock, only 3 left!

0

51

Simplicity 071294MA

WINGNUT
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

52

Simplicity 1733076ASM

DEFLECTOR

Note: (38" Mower Decks)

$114.99

$

Usually ships in 2-12 days

0

53

Simplicity 1666294SM

SPACER

Note: (38" Mower Decks)

$4.99

$

In Stock, Qty 20+

0

54

Simplicity 1960223SM

BOLT, Carriage, 5/16 - 18 x 1 1/4
(Superseded to 703446)

Note: (38" Mower Decks)

$4.49

$

In Stock, Qty 5

0

55

Simplicity 1713091SM

PULLY

Note: (38" Mower Decks)

$23.99

$

In Stock, only 1 left!

0

56

Simplicity 1722750ASM

STOP - UP BRACKET

Note: (38" Mower Decks)

$25.99

$

Usually ships in 2-12 days

0

57

Simplicity 1733980SM

V-BELT, 3L, 47.70

Note: (38" Mower Decks - Replaced by Service Kit Ref. No. 69)

$31.99

$

In Stock, Qty 6

0

57

Simplicity 1737073YP

V-BELT, Cog, 47.875

Note: (38" Mower Decks - Included in Service Kit Ref. No. 69)

$31.99

$

In Stock, only 1 left!

0

58

Simplicity 1724370ASM

BRACE, Turbo

Note: (38" Mower Decks)

$11.99

$

Usually ships in 2-12 days

0

59

Simplicity 1733580ASM

PLATE, Deflector

Note: (44" & 50" Mower Decks)

$36.99

$

Usually ships in 2-12 days

0

60

Simplicity 1717496SM

SEAL, Rubber

$19.99

$

Usually ships in 2-12 days

0

61

Simplicity 1733579SM

SEAL, Rubber
(Superseded to 1721175SM)

$39.99

$

Usually ships in 2-12 days

0

62

Simplicity 1729277SM

SPRING, Compression

$6.99

$

In Stock, only 1 left!

0

63

Simplicity 1719777SM

COLLAR, Locking

$14.99

$

Usually ships in 2-12 days

0

64

Simplicity 1928721SM

SCREW, Set, 5/16 - 19

$4.99

$

In Stock, only 2 left!

0

65

Simplicity 1709256SM

WASHER, Spring Cup

$5.99

$

In Stock, only 2 left!

0

66

Simplicity 1713613SM

HUB, PULLY, 0.681D x 1.50OD x 1.24LG

Note: (For Use On 38" Broadmoor 1800/2600 Series Tractors)

$15.99

$

In Stock, Qty 20+

0

67

Simplicity 1713621SM

HUB, PULLY, 0.681D x 1.50OD x 1.65LG

Note: (For Use On 38" Broadmoor 1800/2600 Series Tractors)

$19.99

$

Usually ships in 2-12 days

0

68

Simplicity 2108717SM

SPACER, 5/8" O.D., 17/64" Long

Note: (38" & 44" Mower Decks - Included in Service Kit Ref. Nos. 69 & 70)

$17.99

$

In Stock, only 1 left!

0

69

Simplicity 1687415YP

KIT, Belt & Pulley, 38" Mower Decks

$155.99

$

Usually ships in 2-12 days

0

70

Simplicity 1687416YP

KIT, Belt & Pulley, 44" Mower Decks

$189.99

$

Usually ships in 2-12 days

0

71

Simplicity 1687417YP

KIT, Belt & Pulley, 50" Mower Decks

$195.99

$

Usually ships in 2-12 days

0

--

Simplicity 1660934SM

HARDWARE BAG

$53.99

$

Usually ships in 2-12 days

0

--

Simplicity 1732839

INSTALLATION INSTRUCTIONS

$

$

Not available
