1695404 - Simplicity 38" Mower Deck 38" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

38" Mower Deck

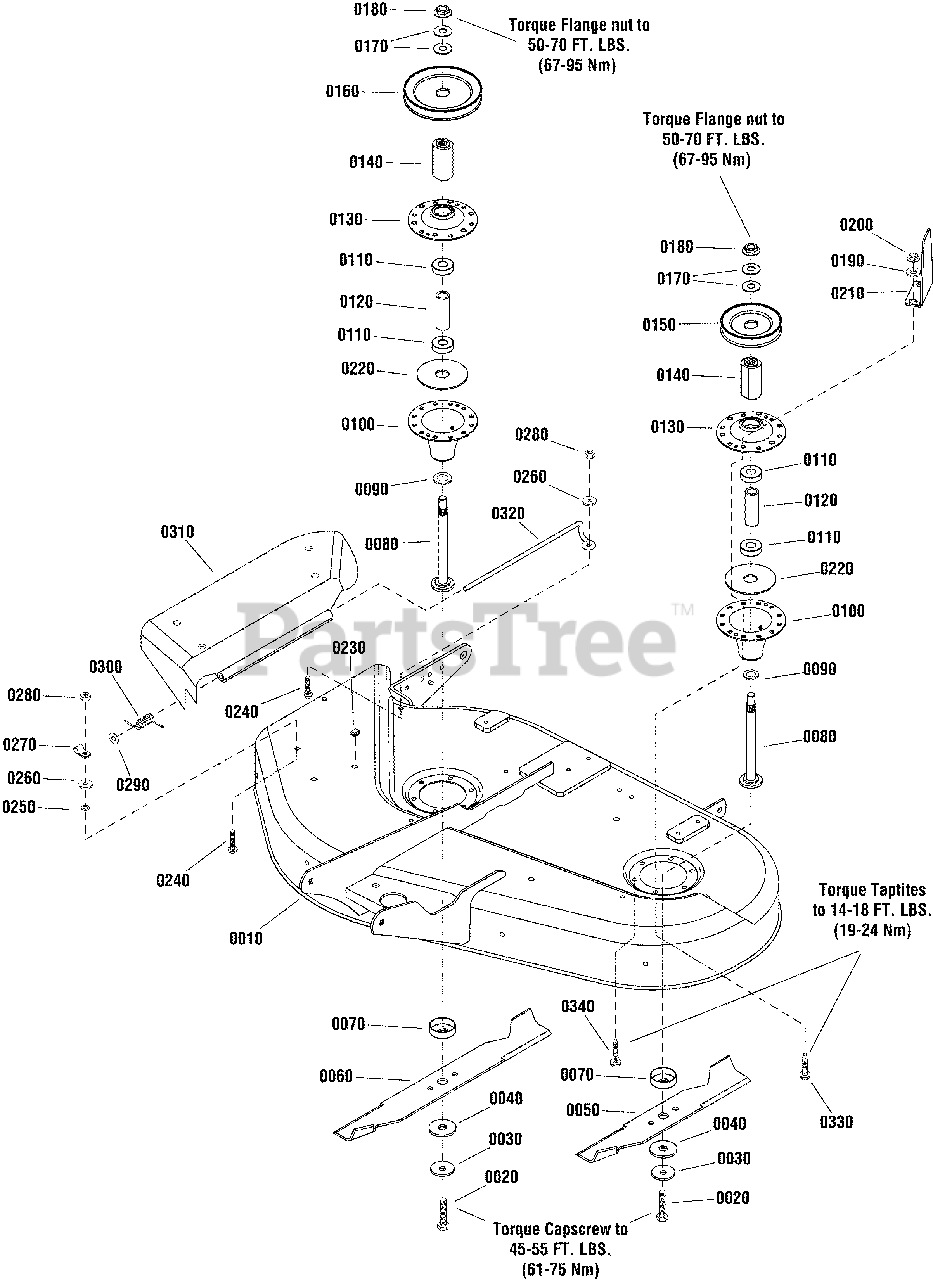

38" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Simplicity 1687269SM

KIT, Mower Deck w/decals
(Superseded to 1733127CYP)

$843.99

$

Usually ships in 2-12 days

0

0020

Simplicity 2823471

CAPSCREW, Hex Head 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 1656916

WASHER, Spring
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1713089

WASHER, Hex, 11/16 x 2
(Superseded to 1713089SM)

$4.99

$

In Stock, Qty 20+

0

0050

Simplicity 1704856

BLADE, 16-1/8
(Superseded to 1704856ASM)

$24.99

$

In Stock, Qty 20+

0

0060

Simplicity 1704101

BLADE, Mower 22-1/4
(Superseded to 1716695ASM)

$29.99

$

In Stock, Qty 20+

0

0070

Simplicity 1713196

SHIELD, Grass
(Superseded to 1713196SM)

$9.49

$

In Stock, Qty 20+

0

0080

Simplicity 1713612

SHAFT, Arbor
(Superseded to 1713612SM)

$

$

Not available

0090

Simplicity 1713619

WASHER, Cup
(Superseded to 1713619SM)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 1713338A

HOUSING, Arbor Bottom w/Lube Fitting
(Superseded to 1713338ASM)

$41.99

$

In Stock, Qty 20+

0

0110

Simplicity 1705897

BEARING, Ball 11/16 x 1-9/16 x 15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

0120

Simplicity 1732543

SPACER, Powdered Metal
(Superseded to 1732543SM)

$8.49

$

In Stock, Qty 20+

0

0130

Simplicity 1713199A

HOUSING, Arbor Top
(Superseded to 1713199ASM)

$16.99

$

In Stock, Qty 20+

0

0140

Simplicity 1713616

ADAPTER, Pulley
(Superseded to 1713616SM)

$24.99

$

In Stock, Qty 20+

0

0150

Simplicity 1732950SM

PULLEY

$20.99

$

In Stock, only 1 left!

0

0160

Simplicity 1732953SM

PULLEY

$31.99

$

In Stock, only 1 left!

0

0170

Simplicity 1713675

WASHER, Bellville
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

0180

Simplicity 1714419

NUT, Hex Flange 9/16-18, Non-Locking
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 20+

0

0190

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0200

Simplicity 1931277

NUT, Hex Flange 5/16-18 Whiz Lock Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0210

Simplicity 1733225A

UPSTOP
(Superseded to 1733225ASM)

$12.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1707335

GASKET, Foam
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

0230

Simplicity 1705115

PLUG, Button
(Superseded to 1705115SM)

$4.49

$

In Stock, only 1 left!

0

0240

Simplicity 1931318

CARRIAGE BOLT, 1/4-20 x 7/8
(Superseded to 1931318SM)

$4.49

$

In Stock, only 2 left!

0

0250

Simplicity 1960518

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0260

Simplicity 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0270

Simplicity 1704873

CLAMP, Wire 5/16
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

0280

Simplicity 1920397

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0290

Simplicity 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0300

Simplicity 7101082

SPRING, Torsion Chute
(Superseded to 7101082SM)

$8.49

$

In Stock, Qty 20+

0

0310

Simplicity 1705449

DEFLECTOR
(Superseded to 1705449SM)

$122.99

$

In Stock, only 1 left!

0

0320

Simplicity 1706709

ROD, Deflector
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 20+

0

0330

Simplicity 2860678

SCREW, Hex Washer Head Taptite 5/16-18 x 1-3/4
(Superseded to 2860678SM)

$4.49

$

In Stock, only 2 left!

0

0340

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0
