1695400 - Simplicity 44" Mower Deck 44" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

44" Mower Deck

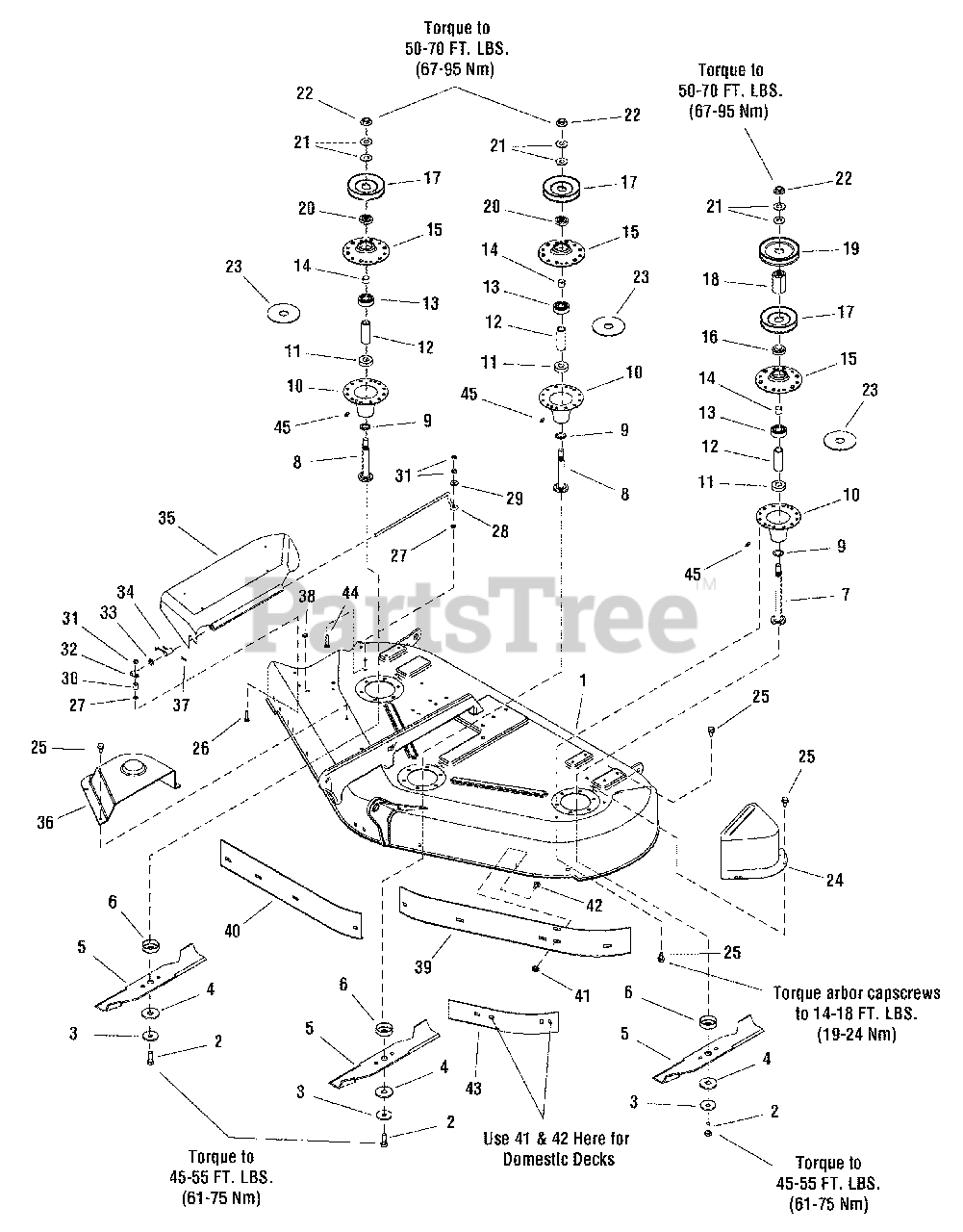

44" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

1

Simplicity 1687327

HOUSING ASSEMBLY, 44"
(Superseded to 1687327SM)

$997.99

$

Usually ships in 2-12 days

0

2

Simplicity 2823471

CAPSCREW, Hex Head 7/16-14 x 1-1/4 G8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1656916

WASHER, Spring
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

4

Simplicity 1713089

WASHER, Hex, 11/16 x 2
(Superseded to 1713089SM)

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 1727774

BLADE, Mower
(Superseded to 1716696ASM)

$25.99

$

In Stock, Qty 20+

0

6

Simplicity 1713196

SHIELD, Grass Lower Arbor Heat Treat
(Superseded to 1713196SM)

$9.49

$

In Stock, Qty 20+

0

7

Simplicity 1713612

SHAFT, Arbor
(Superseded to 1713612SM)

$

$

Not available

8

Simplicity 1713195

SHAFT, Arbor
(Superseded to 1713195SM)

$31.99

$

In Stock, Qty 8

0

9

Simplicity 1713619

WASHER, Cup
(Superseded to 1713619SM)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1713338A

HOUSING, Arbor Bottom w/Lube Fitting (Includes Ref. No. 45)
(Superseded to 1713338ASM)

$41.99

$

In Stock, Qty 20+

0

11

Simplicity 1705897

BEARING, Ball 11/16 x 1-9/16 x 15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

12

Simplicity 1732544

SPACER, Powdered Metal
(Superseded to 1732544SM)

$5.49

$

In Stock, Qty 20+

0

13

Simplicity 2108202

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

14

Simplicity 1715724

SPACER, 21/32 x 3/4 x 5/8
(Superseded to 1715724SM)

$9.49

$

In Stock, Qty 20+

0

15

Simplicity 1655729A

HOUSING, Arbor Top
(Superseded to 1655729ASM)

$14.99

$

Usually ships in 2-12 days

0

16

Simplicity 1713533

HUB, Powdered Metal
(Superseded to 1713533SM)

$9.99

$

In Stock, Qty 20+

0

17

Simplicity 1713098

PULLEY
(Superseded to 1713098SM)

$19.99

$

In Stock, Qty 20+

0

18

Simplicity 1713158

HUB, Hub Serated
(Superseded to 1713158SM)

$18.99

$

In Stock, Qty 20+

0

19

Simplicity 1732951

PULLEY
(Superseded to 1732951SM)

$19.99

$

In Stock, Qty 20+

0

19

Simplicity 1713091

PULLEY
(Superseded to 1713091SM)

Note: (CE/Export)

$23.99

$

In Stock, only 1 left!

0

20

Simplicity 1713197

HUB, Pulley, Center & R.H.
(Superseded to 1713197SM)

$6.99

$

In Stock, Qty 20+

0

21

Simplicity 1713675

WASHER, Bellville
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1714419

NUT, Hex Flange 9/16-18
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 20+

0

23

Simplicity 1707335

GASKET
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

24

Simplicity 1720560A

COVER, Arbor
(Superseded to 1720560ASM)

$90.99

$

In Stock, only 1 left!

0

24

Simplicity 1732200A

COVER, Arbor (No Ribs)
(Superseded to 1732200ASM)

Note: (CE/Export)

$25.99

$

Usually ships in 2-12 days

0

25

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1960633

CARRIAGE BOLT, 1/4-20 x 1-1/2 G5
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960518

NUT, Push for 1/4 Diameter Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1706709

ROD, Deflector
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 20+

0

29

Simplicity 1710703

SPACER
(Superseded to 1710703SM)

$6.49

$

In Stock, Qty 20+

0

30

Simplicity 1931320

CARRIAGE BOLT, 1/4-20 x 1-1/4 G5
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

31

Simplicity 1920397

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1704873

CLAMP, Wire, 5/16 Diameter
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 7101082

SPRING, Torsion Chute
(Superseded to 7101082SM)

$8.49

$

In Stock, Qty 20+

0

35

Simplicity 1705449

DEFLECTOR
(Superseded to 1705449SM)

$122.99

$

In Stock, only 1 left!

0

36

Simplicity 1715673

COVER, Arbor
(Superseded to 1715673SM)

$38.99

$

In Stock, only 1 left!

0

37

Simplicity 1931277

NUT, Hex Flange 5/16-18 Whiz Lock Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

38

Simplicity 1705115

PLUG, Button
(Superseded to 1705115SM)

$4.49

$

In Stock, only 1 left!

0

39

Simplicity 1716879A

BAFFLE, Blowout 44" LH
(Superseded to 1716879ASM)

Note: (CE/Export)

$115.99

$

Usually ships in 2-12 days

0

40

Simplicity 1716878A

BAFFLE, Blowout 44" RH
(Superseded to 1716878ASM)

Note: (CE/Export)

$97.99

$

Usually ships in 2-12 days

0

41

Simplicity 1927557

NUT, Hex Flange 5/16-18 Whiz Lock Large
(Superseded to 703330)

Note: (Quantity 11 used on CE/Export Models)

$4.99

$

In Stock, Qty 14

0

42

Simplicity 1921333

CAPSCREW, Hex Head 5/16-18 x 1 G5
(Superseded to 703585)

Note: (Quantity 11 used on CE/Export Models)

$4.99

$

Usually ships in 2-12 days

0

43

Simplicity 1724538A

BAFFLE, Short Blowout
(Superseded to 1724538ASM)

$45.99

$

In Stock, only 1 left!

0

44

Simplicity 1960633

CARRIAGE BOLT, 1/4-20 x 1-1/2
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 1704314

FITTING, Grease 1/4 Drive
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0
