1695400 - Simplicity 44" Mower Deck 44" Mower Deck - Height Adjustment & Roller Group Parts Diagram

44" Mower Deck

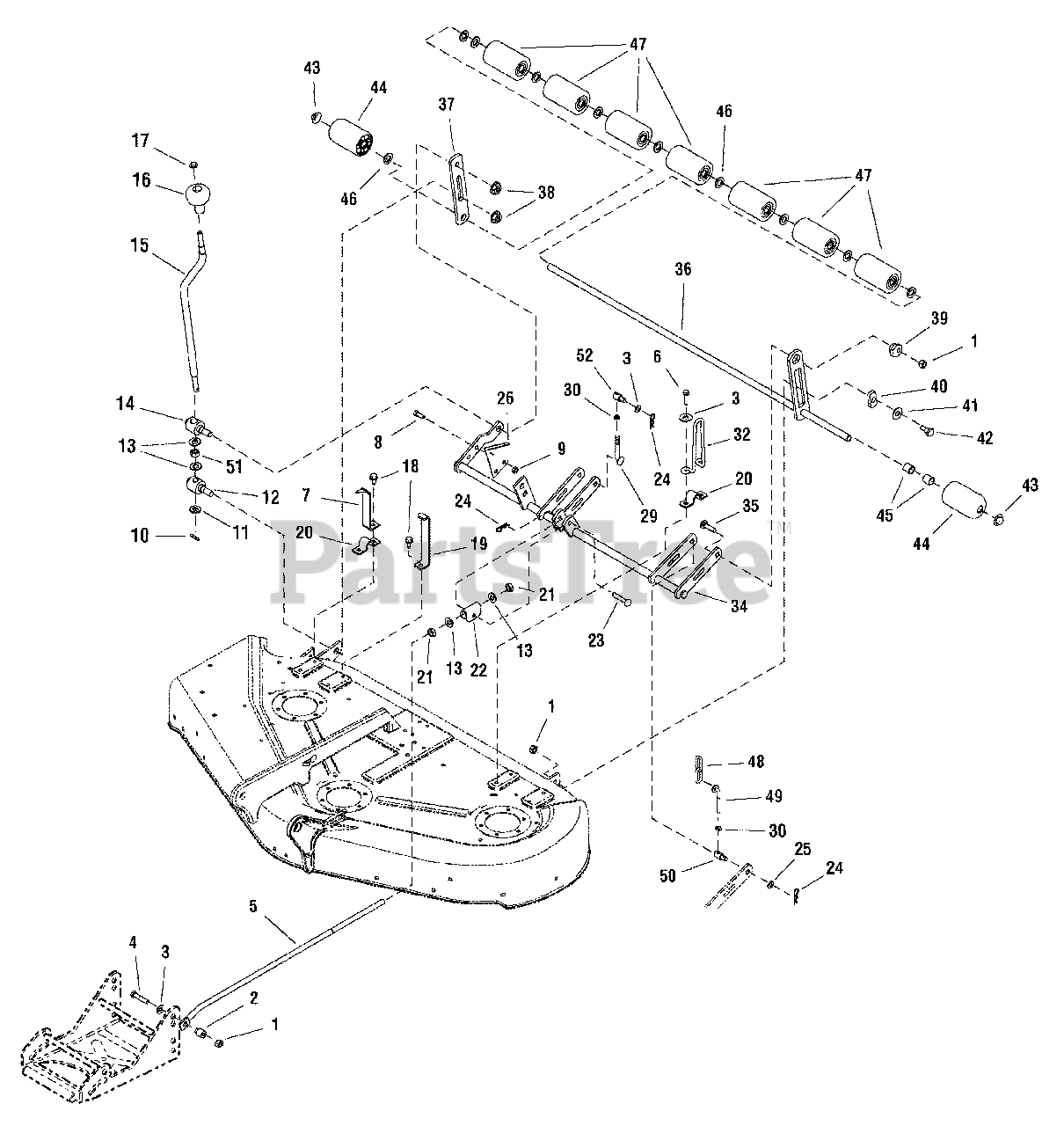

44" Mower Deck - Height Adjustment & Roller Group Parts Diagram

  • Title

1

Simplicity 2860681SM

NUT, Hex Toplock Spiral Lock Flange 3/8-16

$4.49

$

In Stock, Qty 7

0

2

Simplicity 1706644SM

SPACER, 3/8 x 3/4 x 15/16

$8.49

$

In Stock, only 1 left!

0

3

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 12

0

5

Simplicity 1734797SM

ROD, Adjustment

$28.99

$

Usually ships in 2-12 days

0

6

Simplicity 1931202SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

7

Simplicity 1720643ASM

INDICATOR, Height of Cut

$19.99

$

In Stock, only 2 left!

0

8

Simplicity 1930591SM

SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

9

Simplicity 1931277SM

NUT, Hex Flange 5/16-18 Whiz Lock Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Simplicity 2816001SM

PIN, Spring

$4.49

$

In Stock, Qty 11

0

11

Simplicity 1704097SM

WASHER, Detent

$4.49

$

In Stock, Qty 11

0

12

Simplicity 1733257SM

TRUNNION

$28.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

14

Simplicity 1733258SM

TRUNNION

$

$

Not available

15

Simplicity 1719901SM

CRANK, Height Adjust

$48.99

$

In Stock, only 1 left!

0

16

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, only 1 left!

0

17

Simplicity 1960093SM

NUT, Push Pal 3/8 Diameter Stud Capped
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

18

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1722748ASM

BRACKET, Up-Stop

$19.99

$

Usually ships in 2-12 days

0

20

Simplicity 1665374SM

STRAP, Roller
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

21

Simplicity 1913744SM

NUT, Hex Jam 1/2-13

$4.99

$

In Stock, Qty 19

0

22

Simplicity 1704081ASM

TRUNNION, Rod

$7.99

$

Usually ships in 2-12 days

0

23

Simplicity 2118053SM

PIN, Round Head Drilled 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

24

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1960103SM

WASHER, 3/8

$4.49

$

In Stock, Qty 7

0

26

Simplicity 1704116ASM

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

In Stock, only 1 left!

0

29

Simplicity 1724959SM

ROD,Height Adjuster
(Superseded to 703827)

$10.99

$

In Stock, Qty 11

0

30

Simplicity 1920161SM

NUT, Hex Jam 5/16-18

$4.49

$

In Stock, only 2 left!

0

32

Simplicity 1722747SM

UP-STOP, 6-14 High

$21.99

$

Usually ships in 2-12 days

0

34

Simplicity 1733521ASM

SHAFT ASSEMBLY, Rocker 44"

$222.99

$

In Stock, only 1 left!

0

35

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2 G5

$4.49

$

In Stock, Qty 5

0

36

Simplicity 1716159ASM

SHAFT & BAR ASSEMBLY, 44"
(Superseded to 1685443SM)

$137.99

$

In Stock, only 1 left!

0

37

Simplicity 1704074ASM

BAR, Roller

$17.99

$

In Stock, only 1 left!

0

38

Simplicity 1930644SM

NUT, Hex Flange 1/2-13 Two-Way Lock

$3.49

$

In Stock, Qty 6

0

39

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

40

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

41

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

42

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

43

Simplicity 1960520SM

NUT, Push for 5/8 Diameter Stud Capped
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

44

Simplicity 1722036SM

ROLLER, Rounded

$7.99

$

In Stock, Qty 20+

0

45

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

46

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

47

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

48

Simplicity 1731383ASM

CHAIN, Link

$6.49

$

In Stock, only 2 left!

0

49

Simplicity 1731384SM

ROD, Height Adjusting, 3/8-18
(Superseded to 1737124YP)

$

$

Not available

50

Simplicity 1731382SM

TRUNNION

$34.99

$

In Stock, only 2 left!

0

51

Simplicity 1716953SM

SPACER

$13.99

$

In Stock, only 2 left!

0

52

Simplicity 7028200SM

SWIVEL, Adjustable

$13.99

$

In Stock, only 2 left!

0
