1695400 - Simplicity 44" Mower Deck 44" & 50" Mower Deck - Clutch & Support Group Parts Diagram

44" Mower Deck

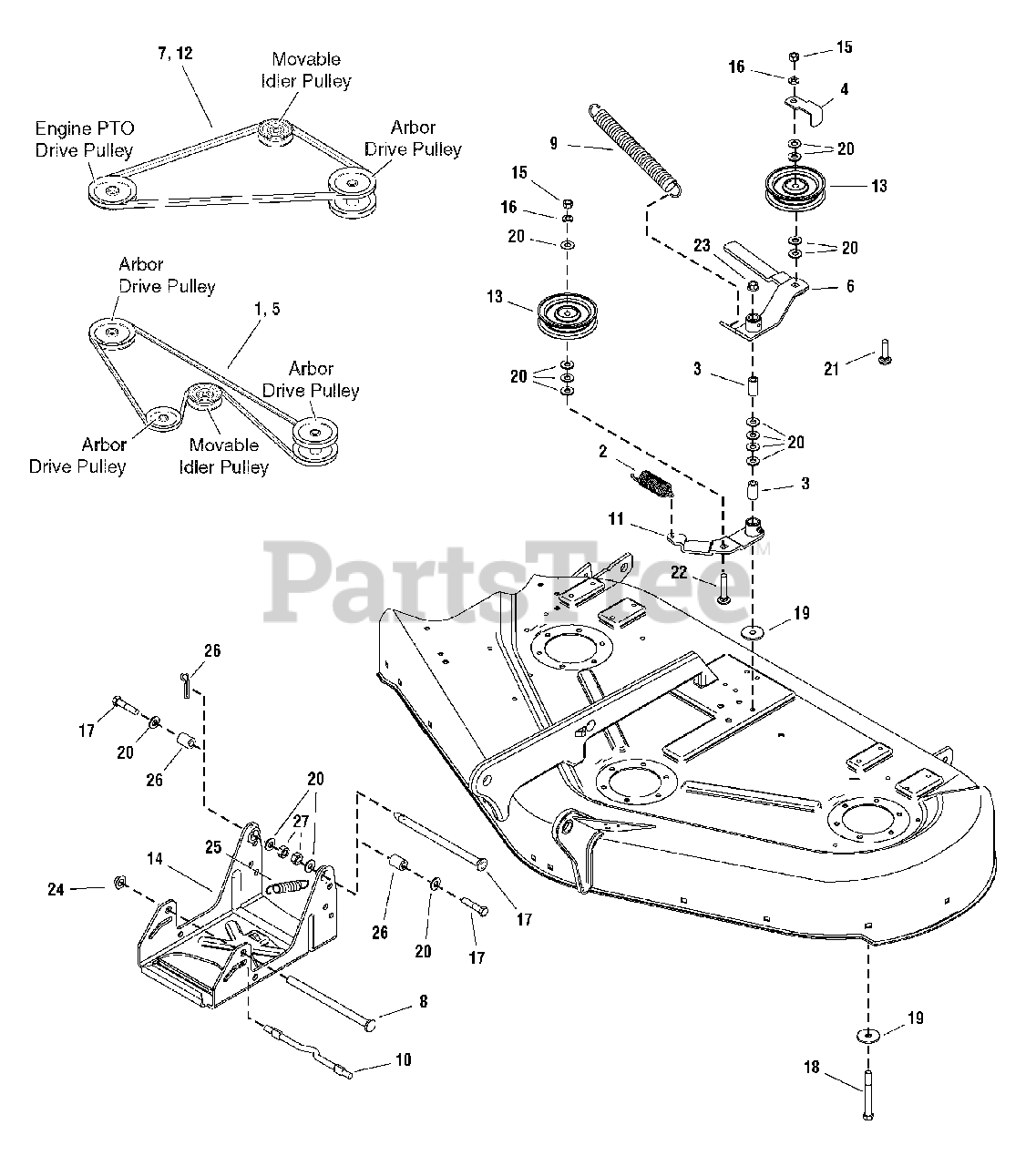

44" & 50" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

1

Simplicity 1721532SM

BELT, 83.1 44"

Note: (Used only on 44" Mower)

$58.99

$

In Stock, Qty 20+

0

2

Simplicity 1656936SM

SPRING, Extension

$9.99

$

In Stock, Qty 20+

0

3

Simplicity 1674669SM

SPACER, Case Hard

$11.99

$

In Stock, Qty 20+

0

4

Simplicity 1677135ASM

GUARD, Belt

$12.99

$

In Stock, Qty 8

0

5

Simplicity 1703836SM

V BELT, Arbor Drive 50

Note: (Used only on 50" Mower)

$45.99

$

In Stock, Qty 20+

0

6

Simplicity 1704658SM

LEVER ASSEMBLY, Idler w/Bushings & Fitting

$48.99

$

In Stock, only 1 left!

0

7

Simplicity 1707740SM

V BELT, Mower Drive 50

Note: (Used only on 50" Mower)

$36.99

$

In Stock, Qty 20+

0

8

Simplicity 1713578SM

ROD

$15.99

$

In Stock, only 1 left!

0

9

Simplicity 1715435SM

SPRING, Extension

$9.49

$

In Stock, Qty 20+

0

10

Simplicity 1715759SM

ROD

$7.99

$

In Stock, Qty 11

0

11

Simplicity 1718561SM

LEVER ASSEMBLY, Idler w/Bushings & Fitting

$50.99

$

Usually ships in 2-12 days

0

12

Simplicity 1601672SM

V BELT, HA 61.10 44"

Note: (Used only on 44" Mower)

$32.99

$

In Stock, Qty 20+

0

13

Simplicity 1724387SM

PULLEY, Idler

$35.99

$

In Stock, Qty 20+

0

14

Simplicity 1733717ASM

HITCH, Mower 44, 50"
(Superseded to 1738040AYP)

$289.99

$

Usually ships in 2-12 days

0

15

Simplicity 1916950SM

NUT, Hex 3/8-16 NC-2B
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1916965SM

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

17

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

Note: (Used on early models)

$4.99

$

In Stock, Qty 13

0

17

Simplicity 1734011SM

PIN, Hitch

Note: (Used on later models) (Later parts can replace early parts)

$67.99

$

In Stock, only 3 left!

0

18

Simplicity 1923938SM

CAPSCREW, Hex Head 3/8-16 x 3-1/2 G5
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

19

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

20

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2 G5

$4.49

$

In Stock, only 3 left!

0

22

Simplicity 1960315SM

CARRIAGE BOLT, 3/8-16 x 2 G5

$6.49

$

In Stock, only 1 left!

0

23

Simplicity 1960339SM

NUT, Hex Flange 3/8-16 Machine Lock

$

$

Not available

24

Simplicity 1960519SM

NUT, Push
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

26

Simplicity 1733068SM

SPACER

Note: (Used on early models)

$13.99

$

Usually ships in 2-12 days

0

26

Simplicity 1709189SM

PIN, Click

Note: (Used on later models) (Later parts can replace early parts)

$6.99

$

Usually ships in 2-12 days

0

27

Simplicity 2860681SM

NUT, Hex Toplock Spiral Lock Flange 3/8-16

$4.49

$

In Stock, Qty 7

0
