1695397 - Simplicity 50" Mower Deck 50" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

50" Mower Deck

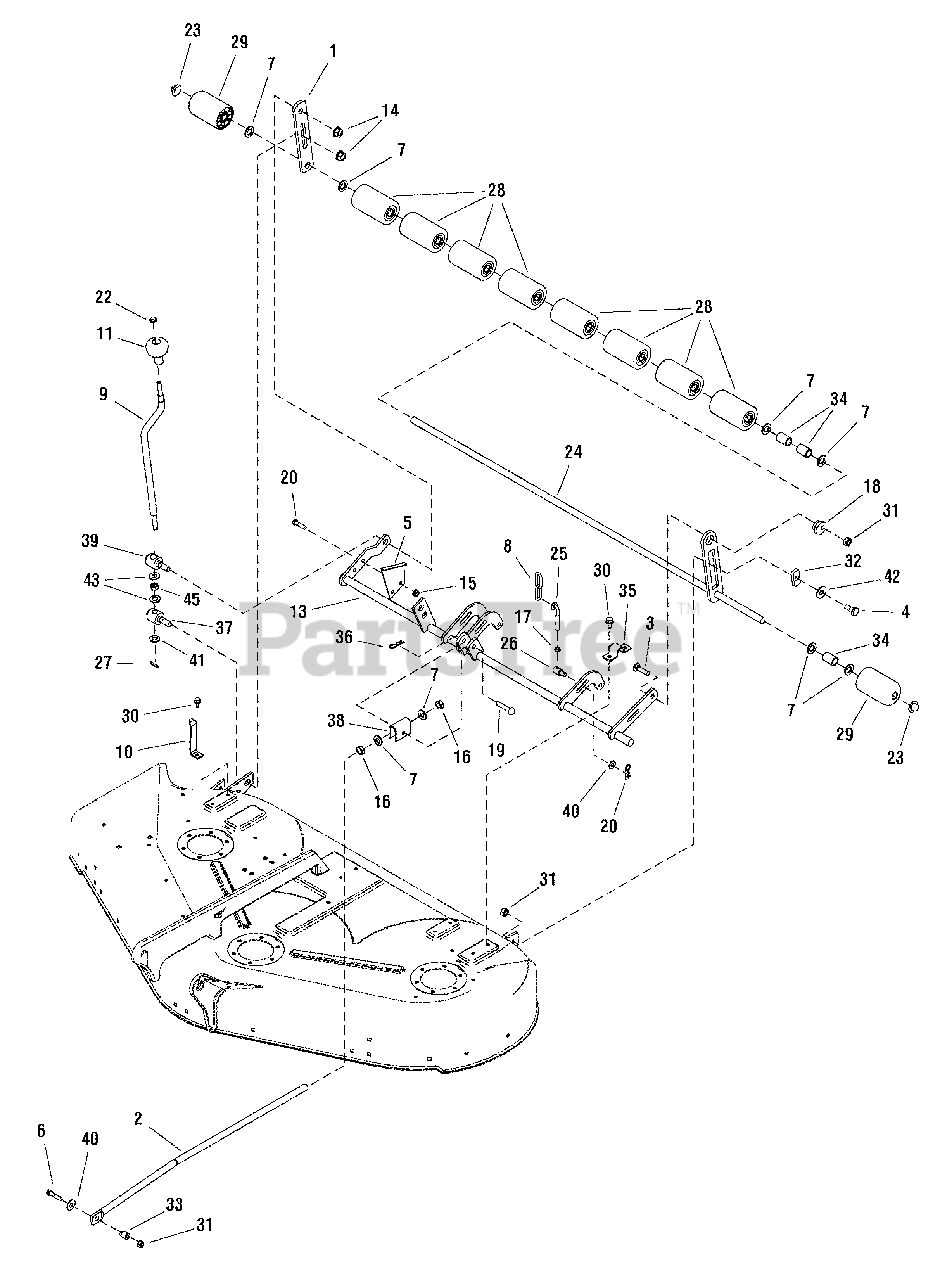

50" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

1

Simplicity 1704074A

BAR, Roller 5/16
(Superseded to 1704074ASM)

$17.99

$

In Stock, only 1 left!

0

2

Simplicity 1722995

ROD, Adjusting
(Superseded to 1722995SM)

$41.99

$

Usually ships in 2-12 days

0

3

Simplicity 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2 G5
(Superseded to 1931352SM)

$4.49

$

In Stock, only 4 left!

0

4

Simplicity 2172622

BOLT, Shoulder, 3/8-16 G5
(Superseded to 2172622SM)

$6.99

$

In Stock, Qty 20+

0

5

Simplicity 1704116A

BRACKET, Height of Cut 16GA
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 1922606

CAPSCREW, Hex Head 3/8-16 x 1-3/4 G8
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

7

Simplicity 1924366

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1731383A

CHAIN, Link
(Superseded to 1731383ASM)

$6.49

$

In Stock, only 2 left!

0

9

Simplicity 1719901

CRANK, Height Adjusting
(Superseded to 1719901SM)

$48.99

$

In Stock, only 1 left!

0

10

Simplicity 1720643A

INDICATOR, Height
(Superseded to 1720643ASM)

$19.99

$

In Stock, only 2 left!

0

11

Simplicity 1714084

KNOB, Spinner
(Superseded to 1714084SM)

$12.99

$

In Stock, only 1 left!

0

13

Simplicity 1733522A

SHAFT ASSEMBLY, Rocker 50"
(Superseded to 1733522ASM)

$237.99

$

Usually ships in 2-12 days

0

14

Simplicity 1930644

NUT, Hex Flange 1/2-13 Two-Way Lock
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

15

Simplicity 1931277

NUT, Hex Flange 5/16-18 Whiz Lock Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Simplicity 1915726

NUT, Hex 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

17

Simplicity 1920161

NUT, Hex Jam 5/16-18
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

18

Simplicity 1704082

NUT, Hex Adjusting
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 15

0

19

Simplicity 2118053

PIN, Round Head Drilled 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

20

Simplicity 1930591

SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

22

Simplicity 1960093

NUT, Push Pal 3/8 Diameter Stud Capped
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1960520

NUT, Push for 5/8 Diameter Stud Capped
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1716155A

SHAFT & BAR ASSEMBLY, Roller
(Superseded to 1716155ASM)

$107.99

$

In Stock, only 4 left!

0

25

Simplicity 1737124

ROD, Height Adjust, Chain, 2.55" (Short)
(Superseded to 1737124YP)

$

$

Not available

25

Simplicity 7028728

ROD, Height Adjust, Chain, 3.68" (Long)
(Superseded to 703827)

Note: Only Used on Broadmoor

$10.99

$

In Stock, Qty 12

0

26

Simplicity 1731382

TRUNNION
(Superseded to 1731382SM)

$34.99

$

In Stock, only 2 left!

0

27

Simplicity 2816001

PIN, Spring
(Superseded to 2816001SM)

$4.49

$

In Stock, Qty 11

0

28

Simplicity 1668513

ROLLER
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

29

Simplicity 1722036

ROLLER, Rounded
(Superseded to 1722036SM)

$7.99

$

In Stock, Qty 20+

0

30

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 2860681

NUT, Hex Toplock Spiral lock Flange 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 7

0

32

Simplicity 1677507

SLIDE
(Superseded to 1677507SM)

$6.99

$

In Stock, only 3 left!

0

33

Simplicity 1706644

SPACER, 3/8 x 3/4 x 15/16
(Superseded to 1706644SM)

$8.49

$

In Stock, only 2 left!

0

34

Simplicity 1709195

SPACER
(Superseded to 1709195SM)

$5.99

$

In Stock, Qty 20+

0

35

Simplicity 1665374

STRAP, Roller
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

36

Simplicity 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

37

Simplicity 1733257

TRUNNION
(Superseded to 1733257SM)

$28.99

$

Usually ships in 2-12 days

0

38

Simplicity 1706645A

TRUNNION
(Superseded to 1706645ASM)

$8.49

$

Usually ships in 2-12 days

0

39

Simplicity 1733258

TRUNNION
(Superseded to 1733258SM)

$

$

Not available

40

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

41

Simplicity 1704097

WASHER, Detent
(Superseded to 1704097SM)

$4.49

$

In Stock, Qty 11

0

42

Simplicity 1924361

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

45

Simplicity 1716953

SPACER
(Superseded to 1716953SM)

$13.99

$

In Stock, only 2 left!

0
