1695391 - Simplicity 44" Mower Deck 44" Mower Deck - Electric Height Adjustment & Roller Bar Group Parts Diagram

44" Mower Deck

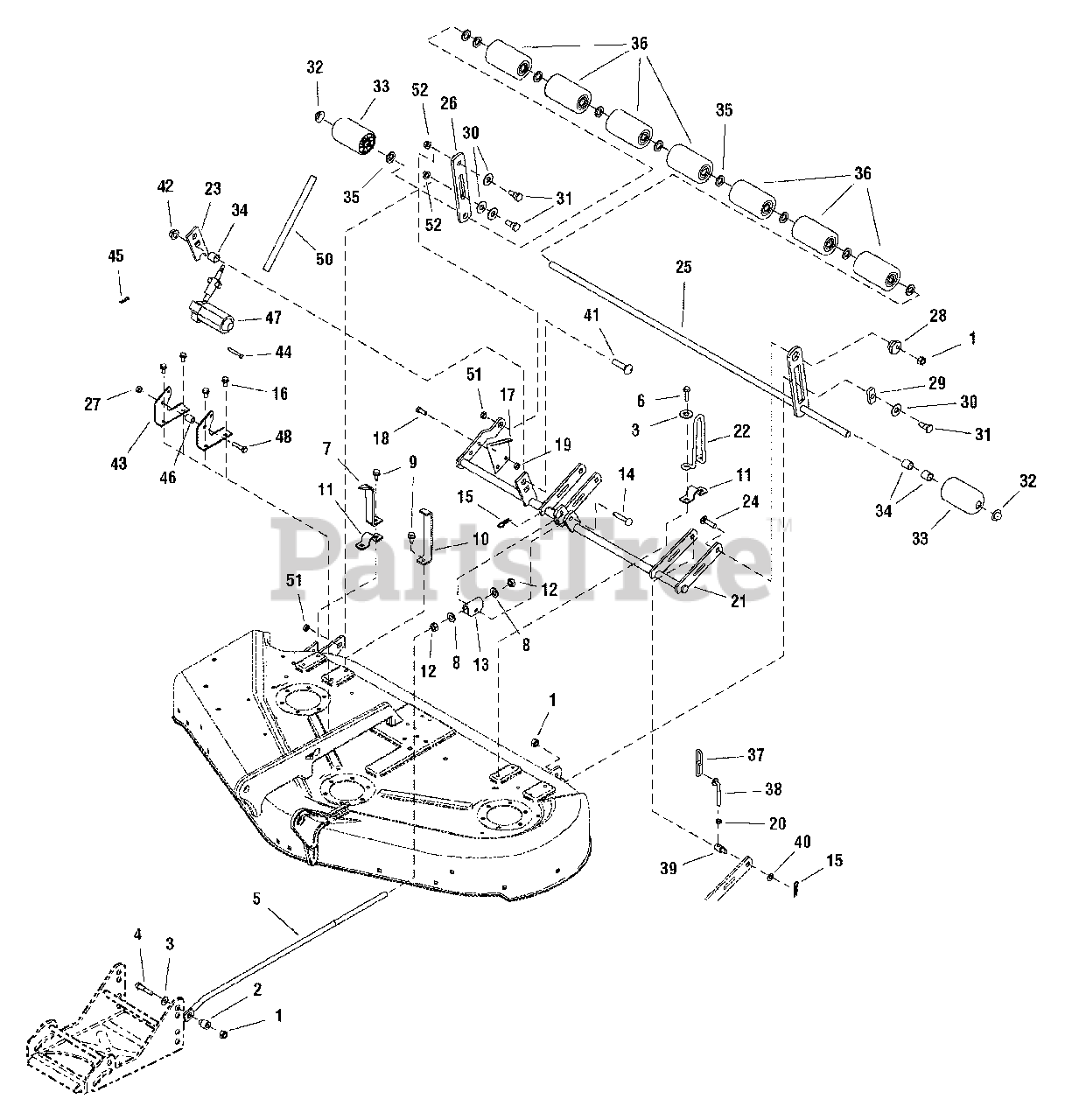

44" Mower Deck - Electric Height Adjustment & Roller Bar Group Parts Diagram

  • Title

1

Simplicity 2860681SM

NUT, Hex Toplock Spiral Lock Flange 3/8-16

$4.49

$

In Stock, Qty 7

0

2

Simplicity 1706644SM

SPACER, 3/8 x 3/4 x 15/16

$8.49

$

In Stock, only 2 left!

0

3

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 13

0

5

Simplicity 1734797SM

ROD, Adjustment

$28.99

$

Usually ships in 2-12 days

0

6

Simplicity 1931202SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

7

Simplicity 1720643ASM

INDICATOR, Height of Cut

$19.99

$

In Stock, only 2 left!

0

8

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1722748ASM

BRACKET, Up-Stop

$19.99

$

Usually ships in 2-12 days

0

11

Simplicity 1665374SM

STRAP, Roller E-Coat
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

12

Simplicity 1913744SM

NUT, Hex Jam 1/2-13

$4.99

$

In Stock, Qty 19

0

13

Simplicity 1704081ASM

TRUNNION, Rod

$7.99

$

Usually ships in 2-12 days

0

14

Simplicity 2118053SM

PIN, Round Head Drilled 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

15

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1930601SM

SCREW, Hex Washer Head Taptite 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

17

Simplicity 1704116ASM

BRACKET, Height of Cut 16GA
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

18

Simplicity 1930591SM

SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

19

Simplicity 1931277SM

NUT, Hex Flange 5/16-18 Whiz Lock Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

20

Simplicity 1920161SM

NUT, Hex Jam 5/16-18

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 1733521ASM

SHAFT ASSEMBLY, Rocker 44"

$222.99

$

In Stock, only 1 left!

0

22

Simplicity 1722747SM

UP-STOP, 6-1/4 High

$21.99

$

Usually ships in 2-12 days

0

23

Simplicity 1733386ASM

ARM, Rear 1/2 Thick
(Superseded to 1733776AYP)

$14.99

$

Usually ships in 2-12 days

0

24

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2 G5

$4.49

$

In Stock, only 4 left!

0

25

Simplicity 1716159ASM

SHAFT & BAR ASSEMBLY, Roller 44"
(Superseded to 1685443SM)

$137.99

$

Usually ships in 2-12 days

0

26

Simplicity 1704074ASM

BAR, Roller 5/16

$17.99

$

In Stock, only 1 left!

0

27

Simplicity 1927557SM

NUT, Hex Flange 5/16-18 Whiz Lock Large

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 15

0

29

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

30

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

32

Simplicity 1960520SM

NUT, Push for 5/8 Diameter Stud Capped
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1722036SM

ROLLER

$7.99

$

In Stock, Qty 20+

0

34

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

35

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

37

Simplicity 1731383ASM

CHAIN, Link

$6.49

$

In Stock, only 2 left!

0

38

Simplicity 1731384SM

ROD, Height Adjusting 5/16-18
(Superseded to 1737124YP)

$

$

Not available

39

Simplicity 1731382SM

TRUNNION

$34.99

$

In Stock, only 2 left!

0

40

Simplicity 1960103SM

WASHER, 3/8

$4.49

$

In Stock, Qty 7

0

41

Simplicity 1960706SM

CARRIAGE BOLT, 1/2-13 x 2 G5

$5.99

$

Usually ships in 2-12 days

0

42

Simplicity 1960689SM

NUT, Hex Toplock Flange 1/2-13

$3.49

$

Usually ships in 2-12 days

0

43

Simplicity 1733828ASM

BRACKET, Mounting 10GA

$21.99

$

Usually ships in 2-12 days

0

44

Simplicity 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

45

Simplicity 1960221SM

CLIP, Hairpin
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

46

Simplicity 1733068SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

47

Simplicity 1733513SM

MOTOR, Electric
(Superseded to 7600123YP)

$159.99

$

In Stock, only 2 left!

0

48

Simplicity 1922127SM

CAPSCREW, Hex Head 5/16-18 x 1-3/4 G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

50

Simplicity 1733895SM

TUBE, Flexible

$3.49

$

Usually ships in 2-12 days

0

51

Simplicity 1663752SM

SPACER

$5.99

$

In Stock, only 2 left!

0

52

Simplicity 1960339SM

NUT, Hex Flange 3/8-16 Machine Lock Large

$

$

Not available
