1695364 (6271201x61) - Murray Ultra 27" Snow Thrower (2007) Frame Parts Diagram

Ultra 27" Snow Thrower

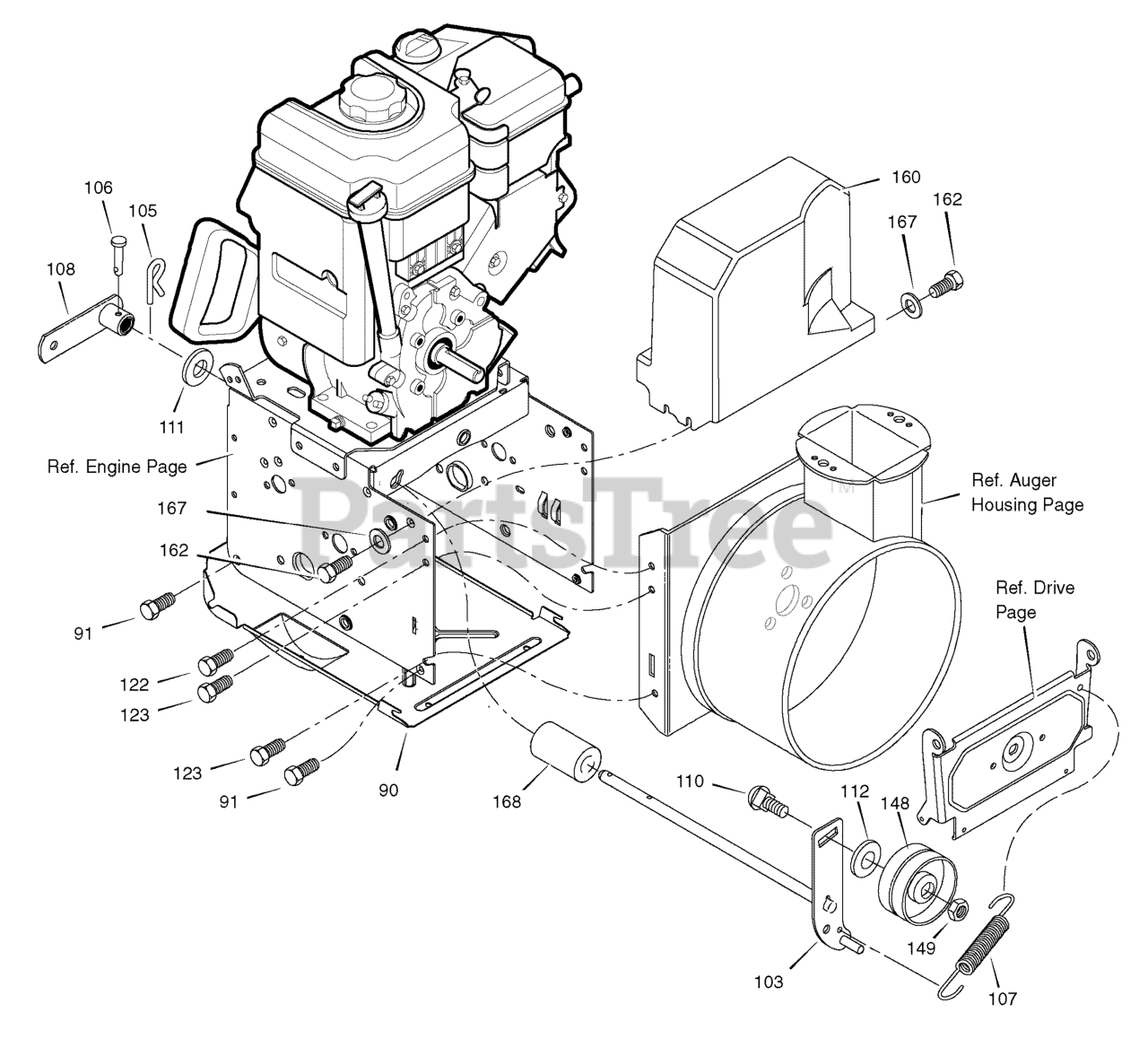

Frame Parts Diagram

  • Title

90

Murray 1740906HMA

COVER, BOTTOM
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

91

Murray 310169MA

SCREW, 1/4-20X .63
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

103

Murray 1501369YZMA

IDLER ASSEMBLY, AUGER

$49.99

$

Usually ships in 2-12 days

0

105

Murray 711682MA

PIN, HAIR .38DIAX1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

107

Murray 165X159MA

SPRING, TENSION

$6.99

$

In Stock, Qty 9

0

108

Murray 1733451SM

ASSEMBLY, SPRING ATTACH

$20.99

$

In Stock, only 3 left!

0

110

Murray 585781MA

BOLT, 3/8-16X1.25 CARR.
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617MA

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

112

Murray 017X48MA

WASHER

$8.49

$

Usually ships in 2-12 days

0

122

Murray 25X021MA

SCREW, TAP 5/16-18 X .75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

123

Murray 25X020MA

SCREW, TAP 5/16-18 X .50

$4.99

$

In Stock, Qty 6

0

148

Murray 1502120MA

PULLEY, IDLER

$21.99

$

In Stock, Qty 6

0

149

Murray 590MA

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

160

Murray 1502169MA

COVER, BELT

$69.99

$

Usually ships in 2-12 days

0

162

Murray 26X306MA

SCREW, TAP

$4.99

$

Usually ships in 2-12 days

0

167

Murray 71067MA

WASHER, FLAT

$4.49

$

In Stock, only 1 left!

0

168

Murray 1502041MA

SPACER, AUGER BRACKET

$5.99

$

Usually ships in 2-12 days

0
