1695363 (6271200x54) - Canadiana 27" Snow Thrower (2007) Handle Assembly Parts Diagram

27" Snow Thrower

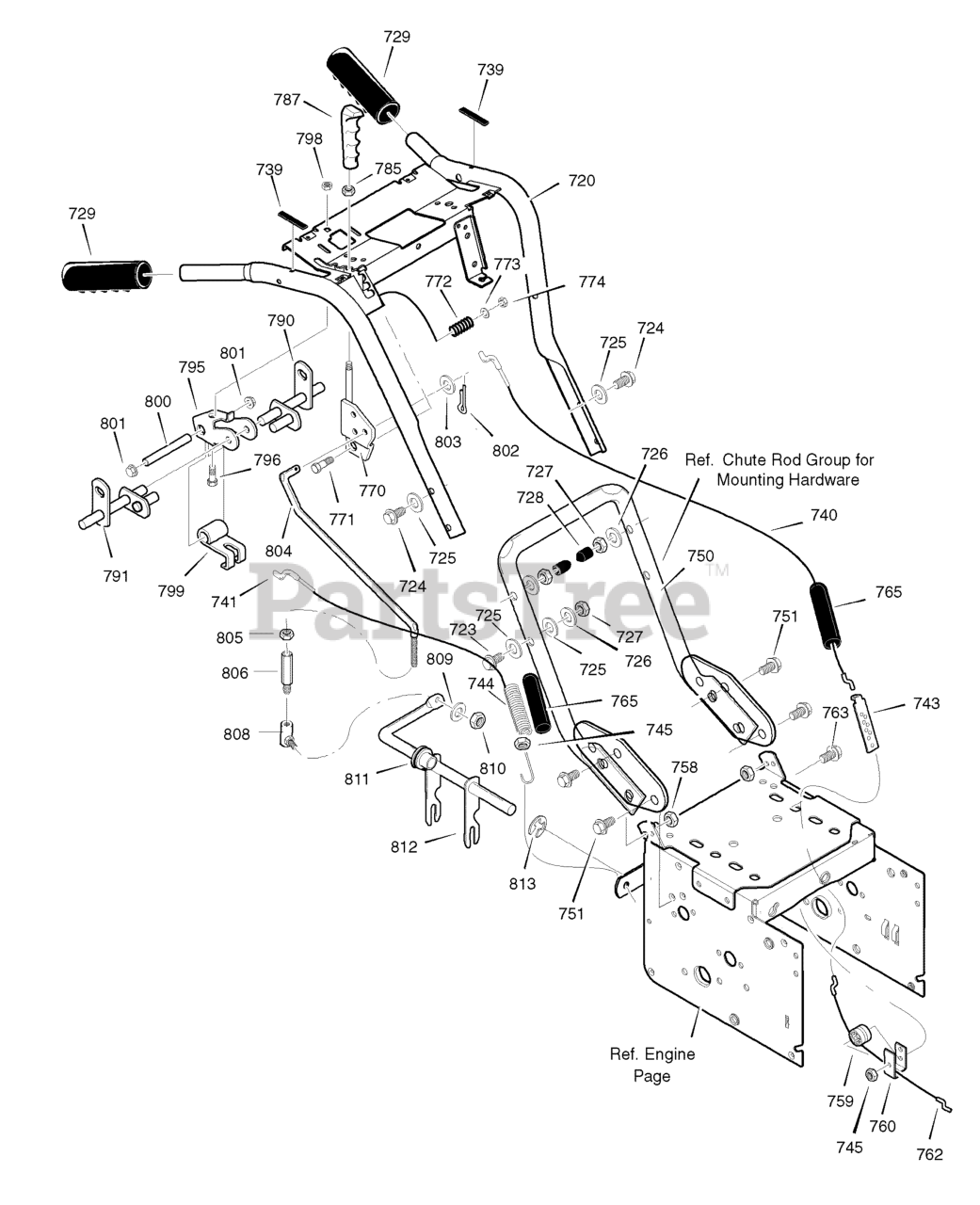

Handle Assembly Parts Diagram

  • Title

720

Murray 1740611TMA

HANDLE ASSEMBLY

$262.99

$

Usually ships in 2-12 days

0

723

Murray 71007MA

SCREW, 3/8-16 X 2.00
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

724

Murray 7288MA

SCREW

$4.49

$

Usually ships in 2-12 days

0

725

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

726

Murray 71062MA

WASHER

$3.49

$

Usually ships in 2-12 days

0

727

Murray 71044MA

NUT

$3.49

$

Usually ships in 2-12 days

0

728

Murray 7289MA

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

729

Murray 337399MA

GRIP, HANDLE

$5.49

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER

$

$

Not available

740

Murray 1501451MA

CABLE, AUGER CLUTCH

$20.99

$

In Stock, only 1 left!

0

741

Murray 1501452MA

CABLE, DRIVE

$16.99

$

In Stock, only 1 left!

0

743

Murray 313441MA

BRACKET, CABLE ADJUST

$

$

Not available

744

Murray 1673MA

SPRING, CLUTCH

$8.99

$

In Stock, Qty 12

0

745

Murray 15X145MA

NUT, HEX
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

750

Murray 1740580TMA

HANDLE, LOWER

$131.99

$

Usually ships in 2-12 days

0

751

Murray 25X021MA

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

758

Murray 15X144MA

NUT 5/16-18 REGHEX

$3.99

$

In Stock, only 1 left!

0

759

Murray 579860MA

SPOOL, CABLE

$5.99

$

In Stock, Qty 10

0

760

Murray 1501059YZMA

BRACKET, SPOOL

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122MA

CABLE, LOWER DRIVE

$8.49

$

In Stock, Qty 17

0

763

Murray 001798MA

BOLT, HEX 1/4-20 X 1.5

$4.49

$

In Stock, only 1 left!

0

765

Murray 308146MA

BOOT, CABLE

$6.49

$

In Stock, only 2 left!

0

770

Murray 1501570YZMA

BRACKET, SHIFT

$10.99

$

Usually ships in 2-12 days

0

771

Murray 4058MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

772

Murray 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

774

Murray 71046MA

NUT, HEX

$4.49

$

Usually ships in 2-12 days

0

785

Murray 71045MA

NUT, HEX

$4.99

$

Usually ships in 2-12 days

0

787

Murray 304728MA

KNOB, SHIFT

$12.99

$

Usually ships in 2-12 days

0

790

Murray 578927MA

ROD, ASSEMBLY LH

$80.99

$

Usually ships in 2-12 days

0

791

Murray 578925MA

ROD, ASSEMBLY RH

$57.99

$

Usually ships in 2-12 days

0

795

Murray 1740652MA

BRACKET, CAM

$

$

Not available

796

Murray 002X53MA

SCREW
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

798

Murray 71038MA

NUT, NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

799

Murray 8417MA

CAM LOCK

$34.99

$

In Stock, Qty 5

0

800

Murray 584673MA

PIN, SPRING PIVOT

$18.99

$

Usually ships in 2-12 days

0

801

Murray 73664MA

NUT, PUSH ON

$4.99

$

In Stock, only 3 left!

0

802

Murray 71081MA

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

803

Murray 71071MA

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

804

Murray 1501728MA

ROD, SPEED CONTROL

$42.99

$

Usually ships in 2-12 days

0

805

Murray 71042MA

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

806

Murray 6352MA

ADAPTER, ROD

$95.99

$

Usually ships in 2-12 days

0

808

Murray 50782MA

BALLJOINT, STEEL

$21.99

$

In Stock, Qty 7

0

809

Murray 71060MA

WASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

810

Murray 71042MA

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

811

Murray 579944MA

BEARING, FLANGE

$15.99

$

Usually ships in 2-12 days

0

812

Murray 1501110YZMA

ROD, YOKE

$50.99

$

In Stock, only 2 left!

0

813

Murray 11X30MA

RETAINER, RING

$4.49

$

In Stock, Qty 12

0
