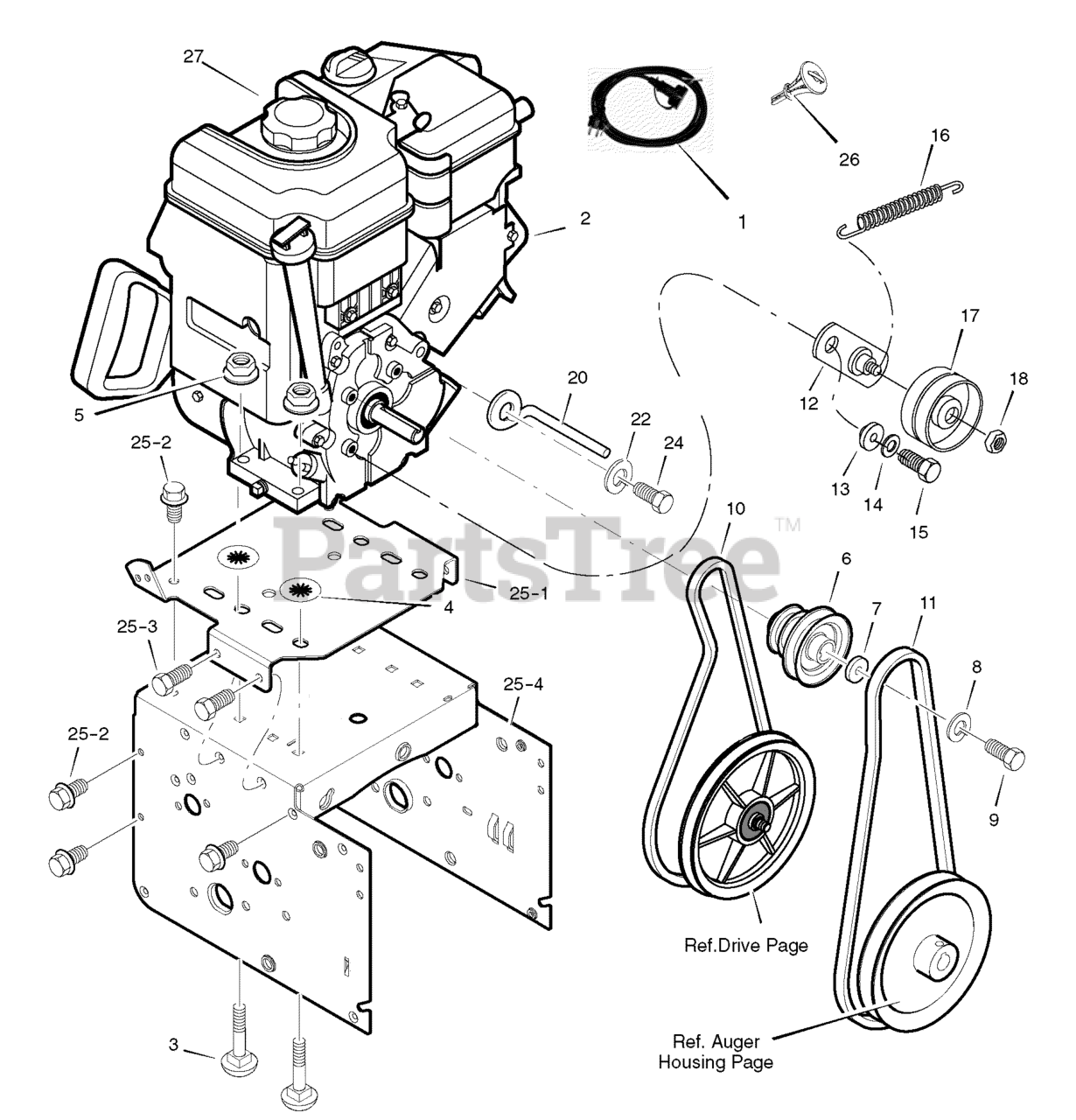

1695363 (6271200x54) - Canadiana 27" Snow Thrower (2007) Engine Parts Diagram

27" Snow Thrower

Engine Parts Diagram

  • Title
1

Murray 761332MA

CORD, STARTER

$24.99

$

Usually ships in 2-12 days

0

2

ENGINE

$

$

Not available

3

Murray 002X97MA

BOLT, CARRIAGE
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

4

Murray 028X76MA

RETAINER, PUSH

$4.49

$

Usually ships in 2-12 days

0

5

Murray 710026MA

NUT
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Murray 1501109MA

PULLEY, ENGINE

$41.99

$

In Stock, only 2 left!

0

7

$5.49

$

Usually ships in 2-12 days

0

8

Murray 71060MA

WASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Murray 910828MA

BOLT, HEX 5/16-24 X 1.00 YZ
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

10

Murray 1733324SM

V-BELT, 3L, 33.13

$19.99

$

In Stock, Qty 20+

0

11

Murray 1736421YP

V-BELT, 4L, 38.35

$30.99

$

In Stock, Qty 20+

0

12

Murray 1501112YZMA

BRACKET ASSEMBLY, IDLER
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

13

Murray 1501065MA

BUSHING, IDLER BRACKET

$5.49

$

In Stock, only 2 left!

0

14

Murray 71060MA

WASHER, SPLIT
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Murray 910828MA

BOLT, HEX 5/16-24 X 1.00 YZ
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

16

Murray 53704MA

SPRING, IDLER TRACTION DRIVE

$8.49

$

In Stock, only 2 left!

0

17

Murray 1502120MA

PULLEY, IDLER

$21.99

$

In Stock, Qty 6

0

18

Murray 590MA

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

20

Murray 1501201MA

GUIDE, ROD BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

22

Murray 71060MA

WASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

$4.49

$

Usually ships in 2-12 days

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1740574RMA

PLATE, ENGINE MOUNT

$29.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

25-3

$4.99

$

In Stock, Qty 6

0

25-4

Murray 1740572RMA

FRAME, MOTOR BOX

$108.99

$

Usually ships in 2-12 days

0

26

Murray 695756

KEY, BRIGGS ENGINE
(Superseded to 794696)

$7.49

$

In Stock, Qty 15

0

27

Murray 792647

GAS CAP
(Superseded to 795027)

$10.99

$

In Stock, Qty 20+

0

--

Murray 1740874

OWNER'S MANUAL

$

$

Currently unavailable
