1695362 (6240810x61) - Murray Ultra 24" Snow Thrower (2007) Auger Housing Parts Diagram

Ultra 24" Snow Thrower

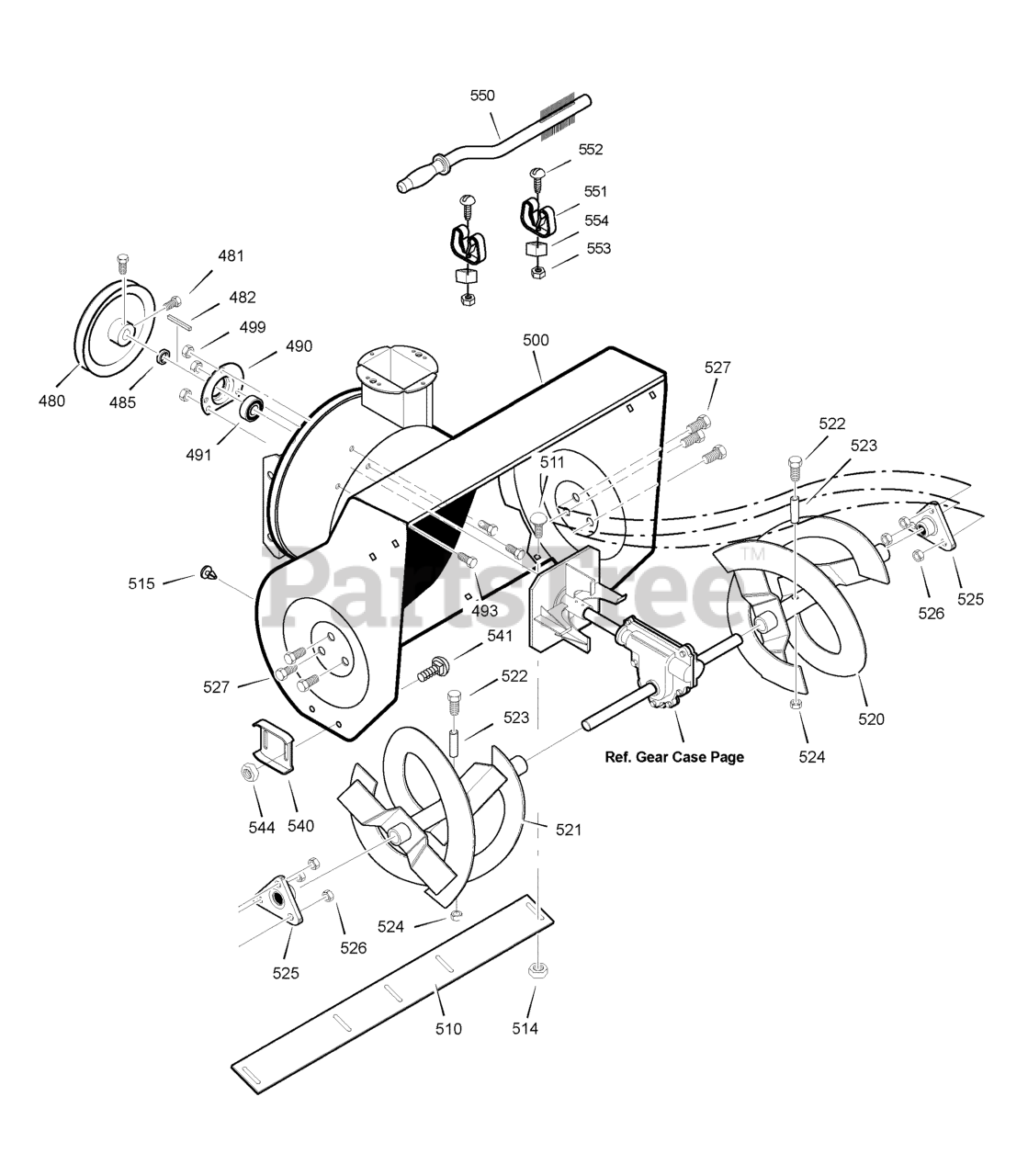

Auger Housing Parts Diagram

  • Title
480

Murray 762146MA

PULLEY, 4L 6.12X .67

$70.99

$

Usually ships in 2-12 days

0

481

Murray 577400MA

SCREW, 5/16-18 x 0.63

$4.99

$

Usually ships in 2-12 days

0

482

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 11

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

490

Murray 582957YZMA

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1501389MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X45MA

BOLT, HEX 5/16-18X .50
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

499

Murray 710026MA

NUT, 5/16-18 HEXWDFLLK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

500

Murray 1740648PMA

ASSY, HOUSING

$319.99

$

Usually ships in 2-12 days

0

510

Murray 1740909HMA

BLADE, SCRAPER
(Superseded to 1740909BMYP)

$40.99

$

In Stock, only 2 left!

0

511

Murray 340714MA

BOLT, 1/4-20X.75
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

514

Murray 780285MA

NUT, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

515

$4.49

$

Usually ships in 2-12 days

0

520

Murray 1740703HMA

ASSY, LH AUGER
(Superseded to 1740703AYP)

$100.99

$

Usually ships in 2-12 days

0

521

Murray 1740704HMA

ASSY, RH AUGER
(Superseded to 1740704AYP)

$107.99

$

Usually ships in 2-12 days

0

522

Murray 9524MA

SCREW, 1/4-20X1.75
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

524

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

525

Murray 9517MA

BEARING, FLANGE

$5.99

$

In Stock, Qty 18

0

526

Murray 711862MA

NUT, 5/16-18

$4.99

$

In Stock, Qty 5

0

527

Murray 9357MA

SCREW, 5/16-18 x 0.75
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

540

Murray 1740718HMA

SKID, HEIGHT ADJUST
(Superseded to 1740718AYP)

$8.99

$

In Stock, only 2 left!

0

541

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

544

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

550

Murray 1501576MA

BRUSH, CLEANOUT
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0

551

Murray 1501672MA

CLIP, RETAINER

$8.99

$

In Stock, Qty 17

0

552

$3.99

$

Usually ships in 2-12 days

0

553

Murray 15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

554

$5.49

$

In Stock, only 2 left!

0

--

Murray 1501216MA

KIT, SHEAR BOLT

$4.99

$

In Stock, Qty 14

0
