1695361 (6240810x54) - Canadiana 24" Snow Thrower (2007) Wheels Parts Diagram

24" Snow Thrower

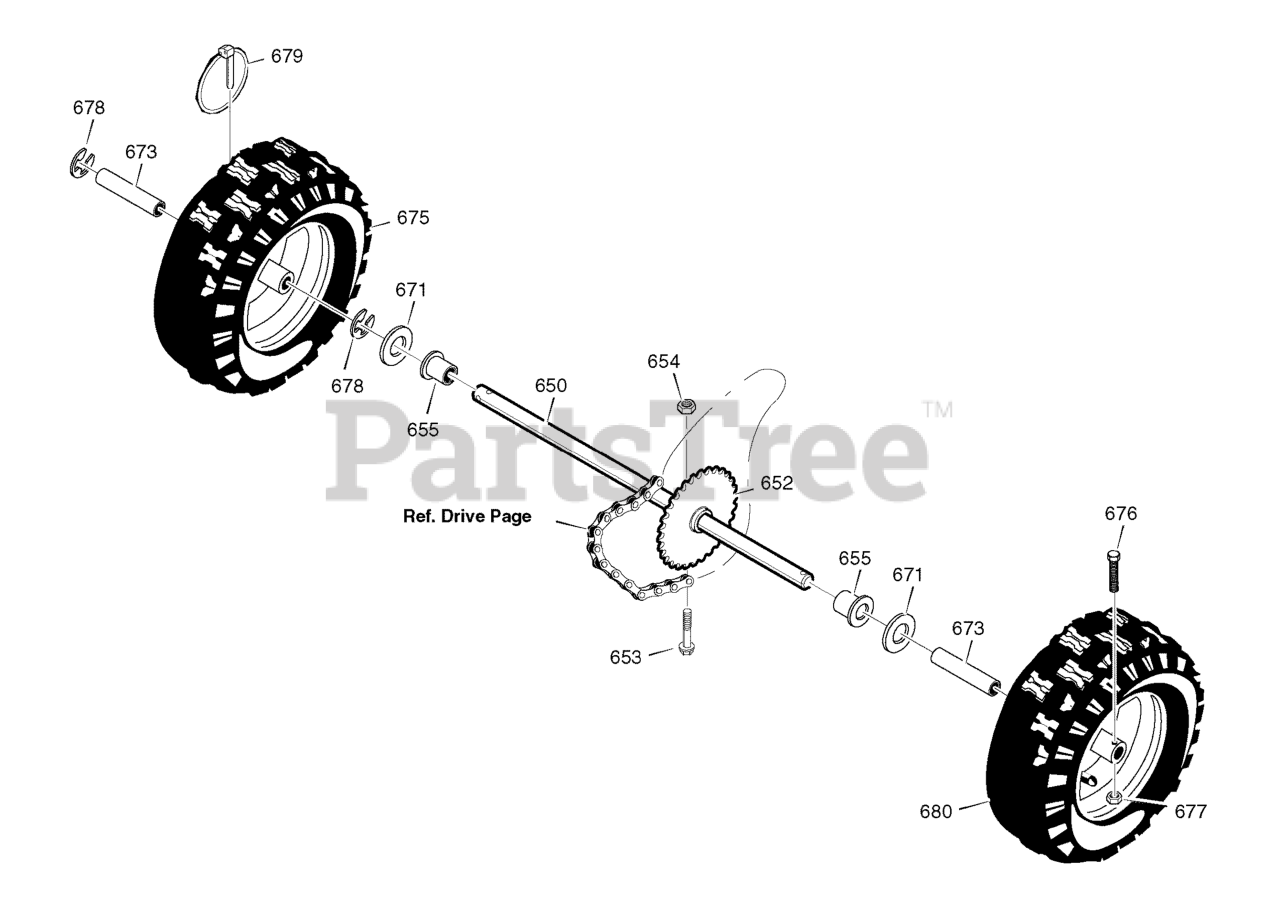

Wheels Parts Diagram

  • Title
650

Murray 1501562YZMA

SHAFT, AXLE

$59.99

$

Usually ships in 2-12 days

0

652

Murray 1501089MA

SPROCKET & HUB

$42.99

$

In Stock, Qty 7

0

653

Murray 01X193MA

SCREW, 1/4-20 X 1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

654

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray 1501114MA

BEARING, AXLE

$11.99

$

In Stock, Qty 20+

0

671

Murray 017X83MA

FLATWASHER

$4.49

$

Usually ships in 2-12 days

0

673

Murray 1501139MA

BUSHING, WHEEL

$

$

Not available

675

Murray 1501834MA

TIRE & RIM, RIGHT

$119.99

$

Usually ships in 2-12 days

0

676

Murray 577015MA

SCREW, 1/4-20 X 1.75 HH

$4.99

$

In Stock, only 3 left!

0

677

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

678

Murray 239MA

RING, RETAINER
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

679

Murray 73842MA

PIN, KLIK 0.25 X 1.38 DIA
(Superseded to 500016MA)

$15.99

$

In Stock, only 1 left!

0

680

Murray 1501835MA

TIRE & RIM, LEFT

$119.99

$

Usually ships in 2-12 days

0
