1695361 (6240810x54) - Canadiana 24" Snow Thrower (2007) Drive Parts Diagram

24" Snow Thrower

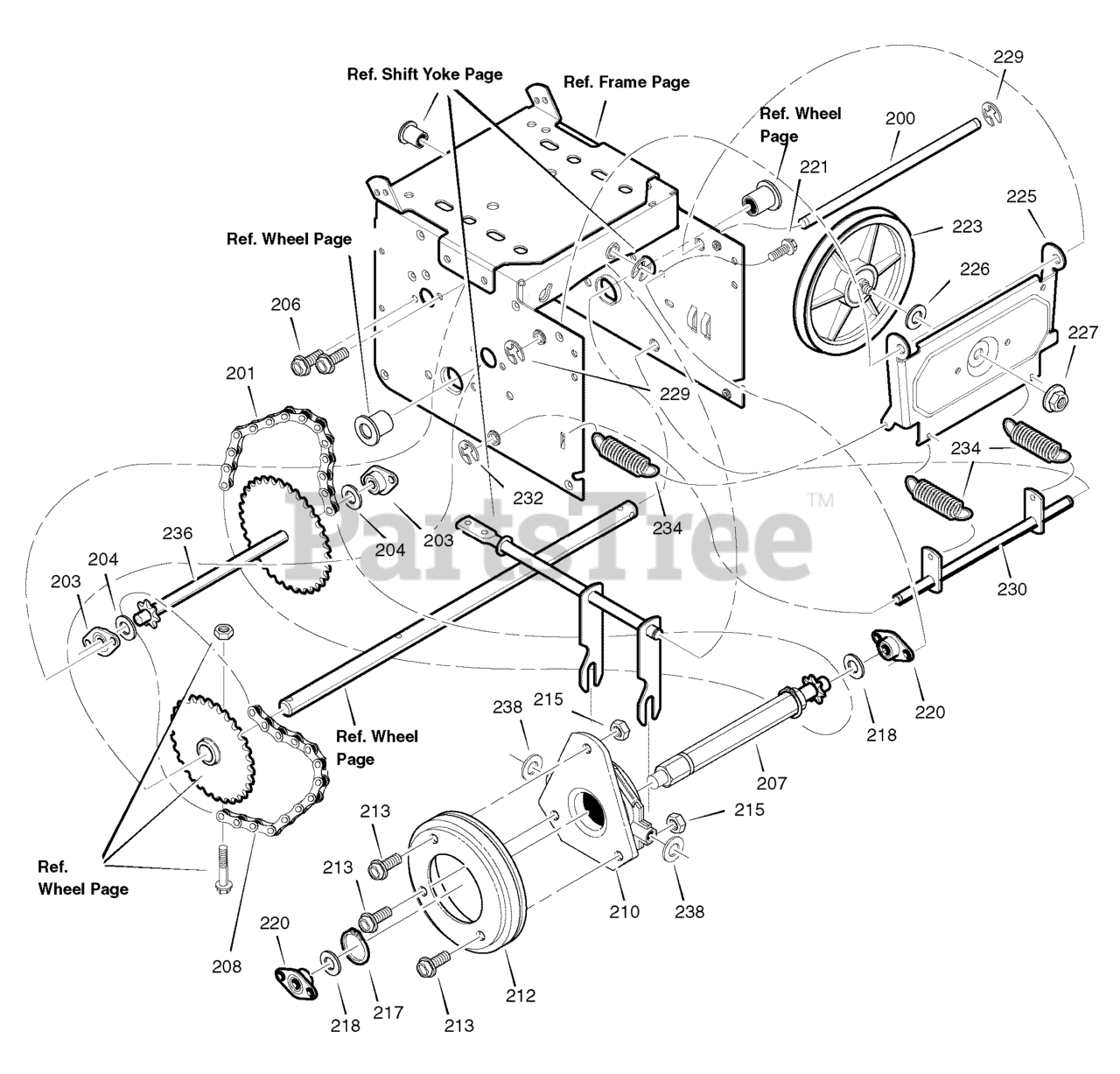

Drive Parts Diagram

  • Title

200

Murray 1501092YZMA

LF AXLE, SWING PLATE YZ

$12.99

$

Usually ships in 2-12 days

0

201

Murray 579851MA

CHAIN, ROLLER #420 X 19.00

$21.99

$

In Stock, Qty 15

0

203

Murray 334163MA

BEARING AND RETAINER, ASSEMBLY

$11.99

$

In Stock, only 1 left!

0

204

Murray 579858MA

WASHER

$4.49

$

In Stock, Qty 20+

0

206

Murray 25X020MA

SCREW, TAP 5/16-18 X 0.5

$4.99

$

In Stock, Qty 6

0

207

Murray 1501236MA

HEX SHAFT ASSEMBLY
(Superseded to 1501100MA)

$

$

Not available

208

Murray 579868MA

CHAIN, ROLLER #420 X 18.00 LG

$20.99

$

In Stock, Qty 17

0

210

Murray 337029MA

BEARING, TRUNION CLUTCH R
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

212

Murray 1501435MA

WHEEL, FRICTION DISC

$27.99

$

In Stock, Qty 20+

0

213

Murray 001X38MA

BOLT

$4.49

$

In Stock, Qty 10

0

215

Murray 303008MA

NUT, KEPS HEX 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

217

Murray 579859MA

RING, RETEXT

$4.49

$

Usually ships in 2-12 days

0

218

Murray 579858MA

WASHER

$4.49

$

In Stock, Qty 20+

0

220

Murray 334163MA

BEARING AND RETAINER, ASSEMBLY

$11.99

$

In Stock, only 1 left!

0

221

Murray 25X020MA

SCREW, TAP 5/16-18 X 0.5

$4.99

$

In Stock, Qty 6

0

223

Murray 1501115MA

FRICTION PULLY

$

$

Not available

225

Murray 1501057YZMA

LF PLATE, SWINGING YZ

$37.99

$

In Stock, only 1 left!

0

226

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

227

Murray 15X114MA

NUT, FLANGE LOCK 3/8-24

$4.49

$

Usually ships in 2-12 days

0

229

Murray 11X30MA

RETAINER, RING

$4.49

$

In Stock, Qty 11

0

230

Murray 1502105YZMA

LF SPRING LINK YZ, ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

232

Murray 11X30MA

RETAINER, RING

$4.49

$

In Stock, Qty 11

0

234

Murray 165X112MA

SPRING, EXTENSION
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 20+

0

236

Murray 1501237MA

SPOCKET, WELD INTERMED 33T/7

$80.99

$

In Stock, only 3 left!

0

238

Murray 71074MA

WASHER, FLAT

$

$

Not available
