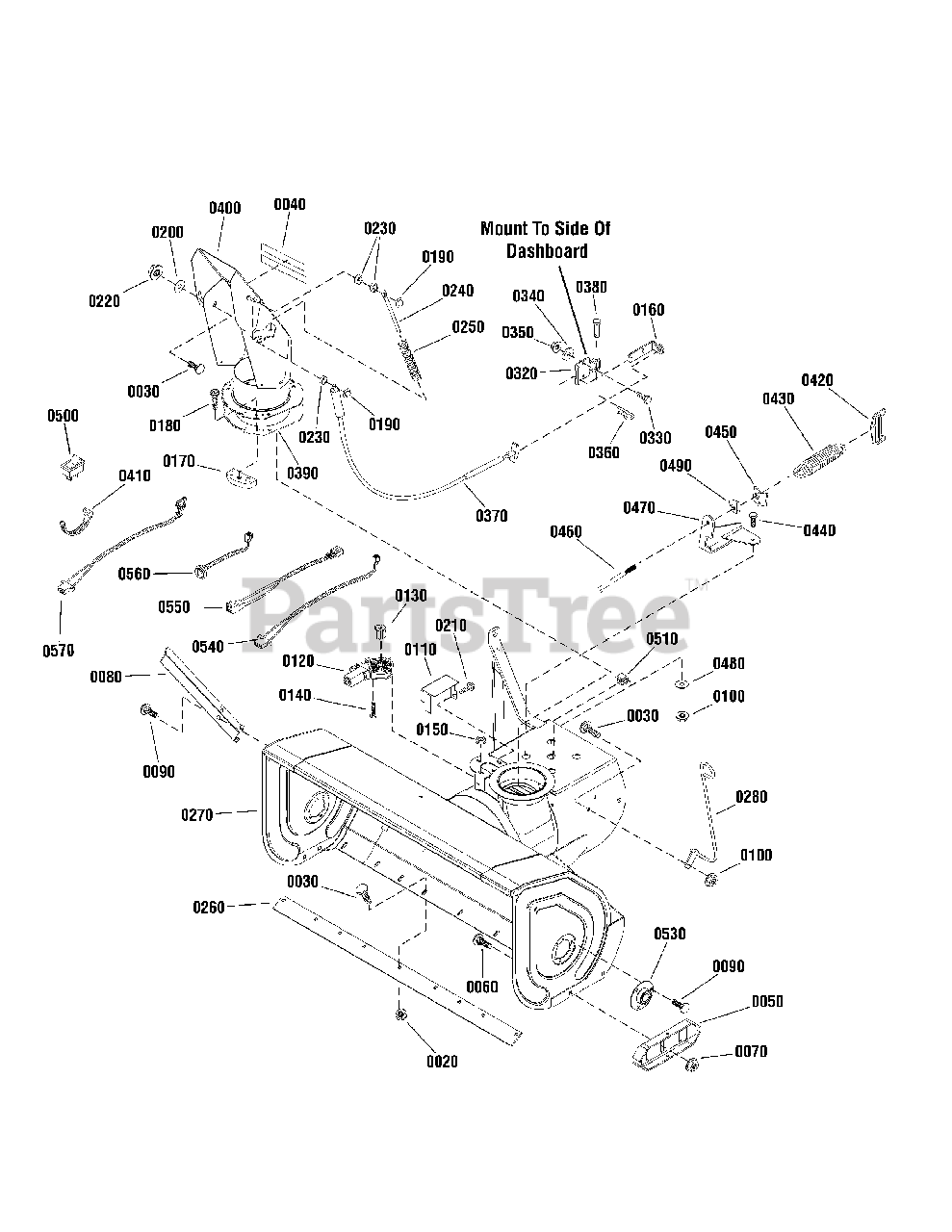

1695360 - Simplicity 42" Snow Thrower Attachment Auger Housing & Chute Group Parts Diagram

42" Snow Thrower Attachment

Auger Housing & Chute Group Parts Diagram

  • Title

0020

Simplicity 1935048

NUT, Hex Flange, 5/16 - 18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0030

Simplicity 1931333

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0040

Simplicity 1733600

DECAL, Black Strip
(Superseded to 1733600SM)

$11.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1725747A

SKID SHOE, Black
(Superseded to 1725747BMYP)

$92.99

$

In Stock, only 4 left!

0

0060

Simplicity 1960702

BOLT, Carriage, 3/8 - 16 x 1
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

0070

Simplicity 1960687

NUT, ESNA Flange, 3/8 - 16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0080

Simplicity 1733102A

DRIFT CUTTERS, Black
(Superseded to 1733102ASM)

$31.99

$

In Stock, only 4 left!

0

0090

Simplicity 1664847

SCREW, Hex Washer Head Taptite, 5/16 - 18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 1960684

NUT, Keps Washer, 5/16 - 18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0110

Simplicity 1733934A

COVER, Gear, Black
(Superseded to 1733934ASM)

$

$

Not available

0120

Simplicity 1728965

MOTOR, Electric
(Superseded to 1728965SM)

$176.99

$

In Stock, Qty 8

0

0130

Simplicity 1728967

GEAR, Pinion
(Superseded to 1728967SM)

$17.99

$

In Stock, only 4 left!

0

0140

Simplicity 2860604

SCREW, Hex Washer, #10 - 24 x 1-1/4
(Superseded to 2860604SM)

$4.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1960745

NUT, Hex Keps, #10 - 24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

0160

Simplicity 1726411A

BRACKET, Cable
(Superseded to 1726411ASM)

$

$

Not available

0170

Simplicity 1666613

CHUTE RETAINERS, Hold Down
(Superseded to 1666613SM)

$3.49

$

In Stock, Qty 20+

0

0180

Simplicity 1960001

SCREW, Plastite
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

0190

Simplicity 1960126

NUT, Push, 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

0200

Simplicity 2860210

WASHER, Nylon
(Superseded to 2860210SM)

$4.49

$

In Stock, only 2 left!

0

0210

Simplicity 1927428

SCREW, Hex Washer Head Taptite, 1/4 - 20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

0220

Simplicity 1960686

NUT, Hex Flange ESNA, 5/16 - 18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 1702219

SPACER
(Superseded to 1702219SM)

$8.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1611945

ROD, Spring
(Superseded to 1611945SM)

$13.99

$

In Stock, only 1 left!

0

0250

Simplicity 1611939

SPRING, Compression
(Superseded to 1611939SM)

$10.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1723986A

SCRAPER BAR, 42"
(Superseded to 1723986ASM)

$68.99

$

In Stock, only 2 left!

0

0270

Simplicity 1687340

AUGER HOUSING ASSEMBLY, 42"

$

$

Not available

0280

Simplicity 1717591A

GUIDE ASSEMBLY, Cable
(Superseded to 1717591ASM)

$27.99

$

In Stock, only 1 left!

0

0320

Simplicity 1721590A

BRACKET, Cable Mount
(Superseded to 1721590ASM)

$27.99

$

In Stock, Qty 5

0

0330

Simplicity 1924009

CAPSCREW, 1/4 - 20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

0340

Simplicity 1960151

WASHER, Special
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

0350

Simplicity 1960685

NUT, Hex Keps, 1/4 - 20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0360

Simplicity 1960221

HAIRPIN, 1/16
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

0370

Simplicity 1724568

CABLE ASSEMBLY
(Superseded to 1724568SM)

$170.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1668344

PIN, Flat Head
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0390

Simplicity 1717477A

GEAR, Chute
(Superseded to 1717477ASM)

$50.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1736420A

CHUTE ASSEMBLY
(Superseded to 1736420AYP)

$384.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1701011

CABLE TIE, 15"
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0420

Simplicity 1724641A

SPRING ANCHOR
(Superseded to 1724641ASM)

$8.49

$

In Stock, only 2 left!

0

0430

Simplicity 1723412

SPRING
(Superseded to 1723412SM)

$58.99

$

In Stock, only 1 left!

0

0440

Simplicity 1921333

CAPSCREW, 5/16 - 18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0450

Simplicity 1723499

RETAINER, Spring
(Superseded to 1723499SM)

$8.49

$

In Stock, only 2 left!

0

0460

Simplicity 1722357

CAPSCREW, 5/16 - 18 x 4-1/2
(Superseded to 1722357SM)

$17.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1732127A

SPRING ANCHOR ASSEMBLY
(Superseded to 1732127ASM)

$54.99

$

Usually ships in 2-12 days

0

0480

Simplicity 1933468

WASHER
(Superseded to 1933468SM)

$4.49

$

Usually ships in 2-12 days

0

0490

Simplicity 1935255

NUT, Speed
(Superseded to 1935255SM)

$3.49

$

In Stock, only 2 left!

0

0500

Simplicity 1724210

SWITCH, Chute Control
(Superseded to 1724210SM)

$54.99

$

In Stock, only 1 left!

0

0510

Simplicity 1715956

CLIP, Wire
(Superseded to 1715956SM)

$4.99

$

Usually ships in 2-12 days

0

0530

Simplicity 1734645

RETAINER, Bearing
(Superseded to 703411)

$51.99

$

Usually ships in 2-12 days

0

0540

Simplicity 1733488

HARNESS ASSEMBLY, Chute
(Superseded to 1733488SM)

$48.99

$

Usually ships in 2-12 days

0

0550

Simplicity 1722735

HARNESS, Spout Rotator
(Superseded to 1722735SM)

Note: (Used on Non-Electric Height of Cut Model Tractors)

$

$

Not available

0560

Simplicity 1716987

HARNESS, Power Outlet
(Superseded to 1716987SM)

Note: (Used on Non-Electric Height of Cut Model Tractors)

$91.99

$

Usually ships in 2-12 days

0

0570

Simplicity 1732236

HARNESS, Motor
(Superseded to 1732236SM)

Note: (Used on Non-Electric Height of Cut Model Tractors)

$73.99

$

Usually ships in 2-12 days

0

0590

Simplicity 1921968SM

CAPSCREW, Hex Head, 3/8-16 x 1 3/8

Note: (Used on 2013 and newer models)

$4.49

$

In Stock, only 3 left!

0

0600

Simplicity 1757289AYP

BRACKET, Spring Assist

$69.99

$

Usually ships in 2-12 days

0
